2027 · Storyteller

GXV HILT

Built on the RAM® 5500 chassis with a 6.7L Cummins® Turbo Diesel engine and equipped with Laramie™ Level 2 Cab features.

OG Interior

4 Seatbelts

Storyteller Overland, Camper Van, Offroad Vehicle, Vanlife, Bed Icon

2 Beds

Full Bathroom

$525,782¹ $3,541/mo est.²

Featuring innovative designs and a best-in-class build

Explore Endlessly

Built on the RAM® 5500 chassis with a 6.7L Cummins® Turbo Diesel engine and 800 lb-ft of torque, the HILT is fiercely capable and ready to respond. An engine block heater, Auto-Idle-Up System, heavy-duty transmission, and 74 gallons of total fuel capacity mean it's built for every adventure you dream to pursue.

KC HiLiTES® 360° Lighting Package

Travel confidently day or night, on and off-road with the HILT’s KC HiLiTES® 360° Lighting Package, Rugged Alloy Front Bumper with an integrated 20,000 pound winch recovery system and ARB® On-Board Air Compressor.

Off-Grid Not Offline

Get beyond the edges of the map without compromising power and connectivity. The HILT is equipped with the 16.8 kWh M-Power™ System, two 3000W heavy-duty, high-efficiency inverters and 1320W rated solar panels.³ Easily integrate Starlink® for internet access everywhere.

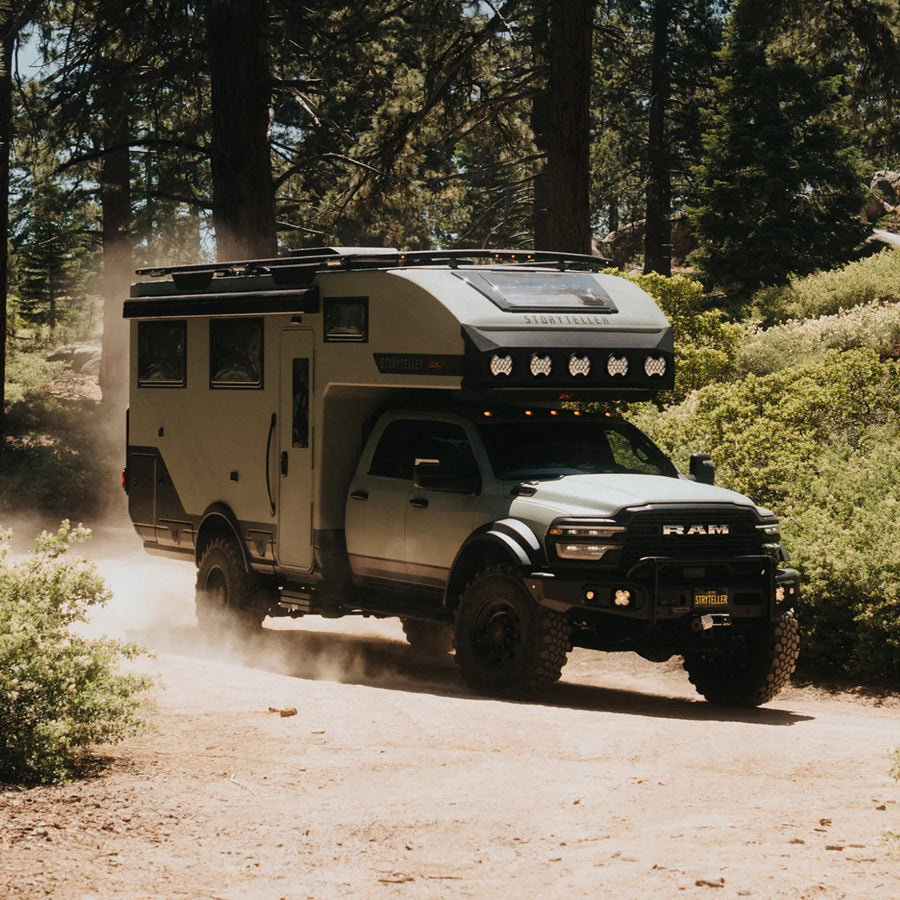

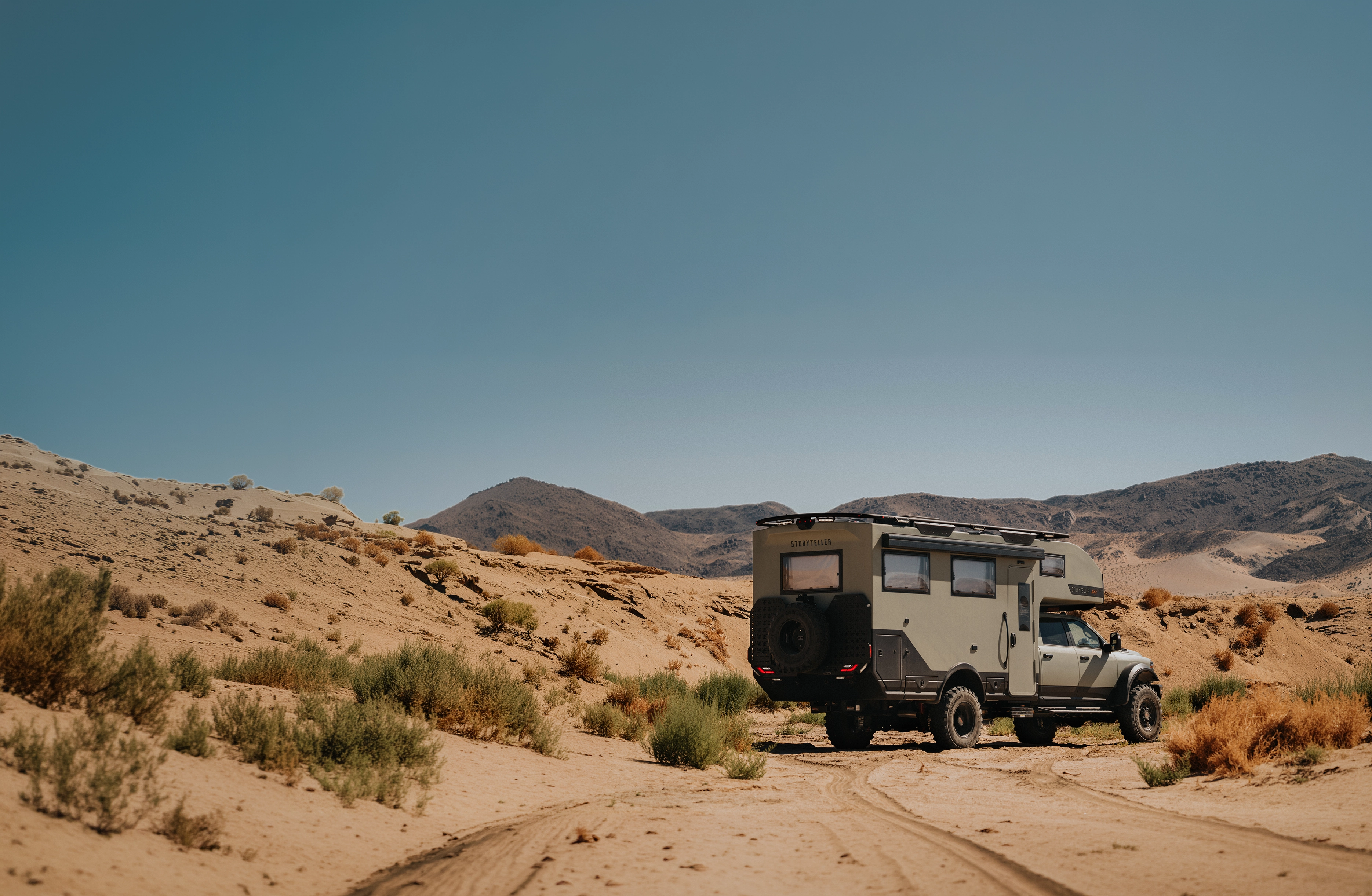

CONQUER EXTREME
OFF-ROAD TERRAIN

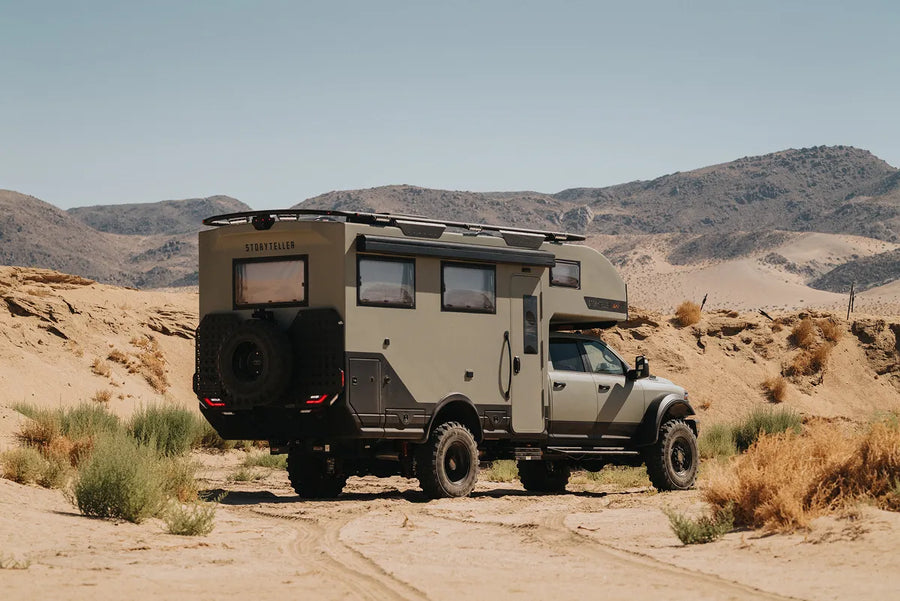

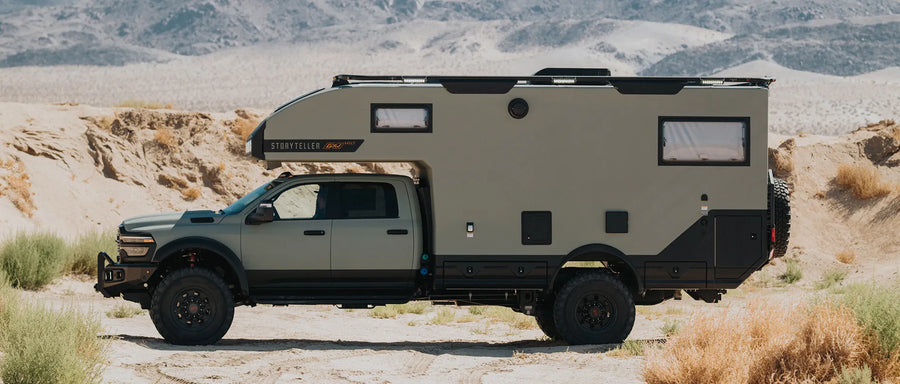

Storyteller Global Expedition Van Hilt Exterior

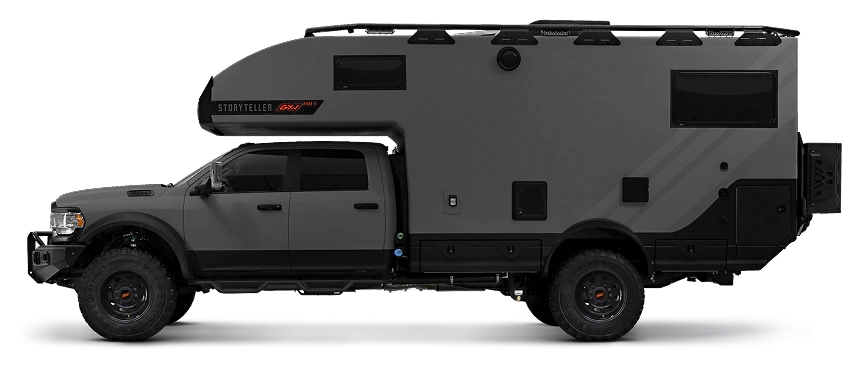

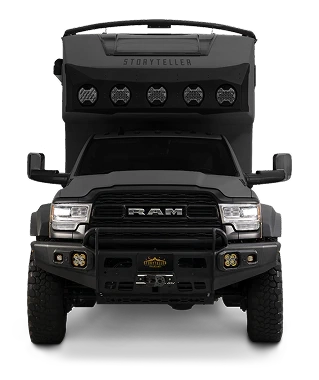

GXV HILT
COLOR SELECTION

Storyteller Overland Stylized Background

Specs

GXV Hilt

4 Seatbelts

Sleeps 2-3

Full Bathroom

$525,782¹ | $3,541/mo²

I’m interested Window sticker

¹ See-Through, No Haggle pricing. Some images may show rigs with optional accessories.
² Monthly payment estimates do not include taxes, title, or registration fees and are based on a 20% down, 20-year RV loan at 7.99% APR. The payment estimates are provided for informational purposes only and may reflect assumptions that may not apply to you or loan terms for which you may not qualify. Please contact your local dealer for an estimate that is more accurately tailored to your circumstances. Storyteller Overland, LLC and its affiliates do not make any representation that any particular terms or financing are available.
³ Solar efficiency varies.

Weights & Measurements
- HILT Max Exterior Length – 29’
- HILT Max Exterior Height – 12’7”
- HILT Body Width – 8’ (Mirror to Mirror 8’7")
- Awning Width – 13’
- Awning Extension – 8’
- HILT Max Interior Height – 6’7”
- HILT Ground Clearance – 10.5”
- Freshwater Tank Capacity – 120 gal
- Grey Tank Capacity – 40 gal
- Water Heater Capacity – Continuous
- Cassette Toilet Capacity – 4.75 gal
- HILT Wheelbase – 197”
- HILT GVWR – 19,500 lbs
- RAM® Fuel Capacity – 74 gal
RAM® Chassis
- 5500 Crew Cab
- 6.7L Cummins® Turbo Diesel
- 800 lb-ft Torque/360 HP
- Cold Weather Group: Engine Block Heater
- Electrical Accessory Group: Voltage-Monitoring Auto-Idle-Up System
- Transfer Case Skid Plate Shield
- 8-Speed HD Transmission
- LED Headlamps/Tail Lamps
- Laramie™ Level 2 Equipment Group:
  - Uconnect® 5 Nav w/ 12.0-inch Touch Screen Display
  - 17-Speaker Harman Kardon® Premium Sound
  - Door Trim Panel Foam Bottle Insert
  - Heated Second-Row Seats
  - Power Adjustable Pedals with Memory
  - Rain-Sensitive Windshield Wipers
  - Ventilated Front Seats
- RAMCHARGER™ Wireless Charging Pad
- Rubber Floor Mats
- Rear Backup Camera
Interior
- RV Queen Size Bed in Front Loft

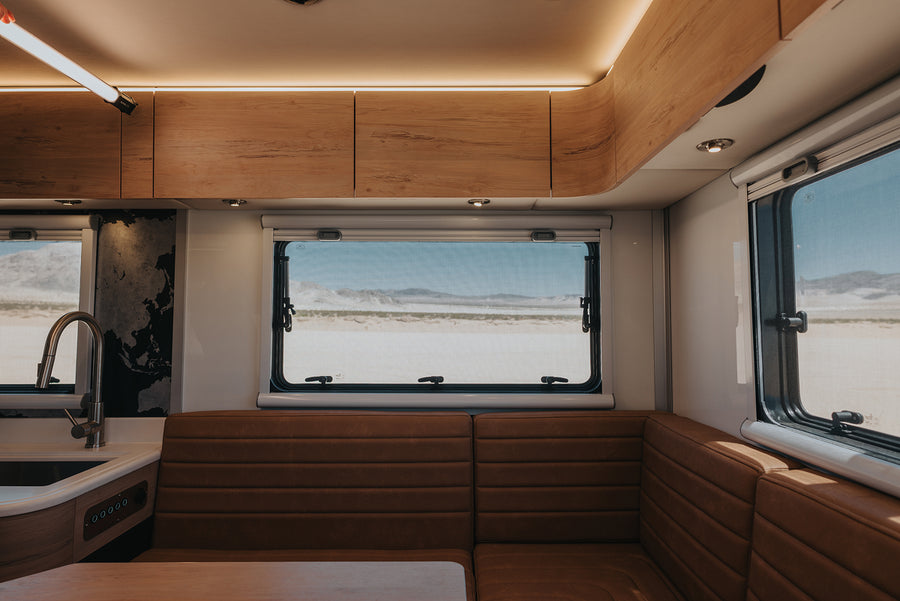

- Rear Dinette Converts to a RV Queen Size Bed

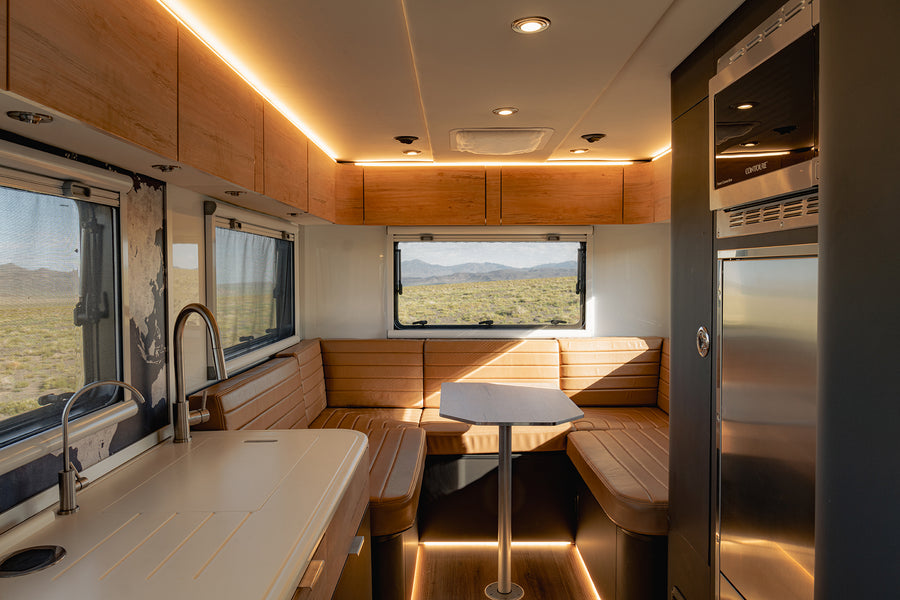

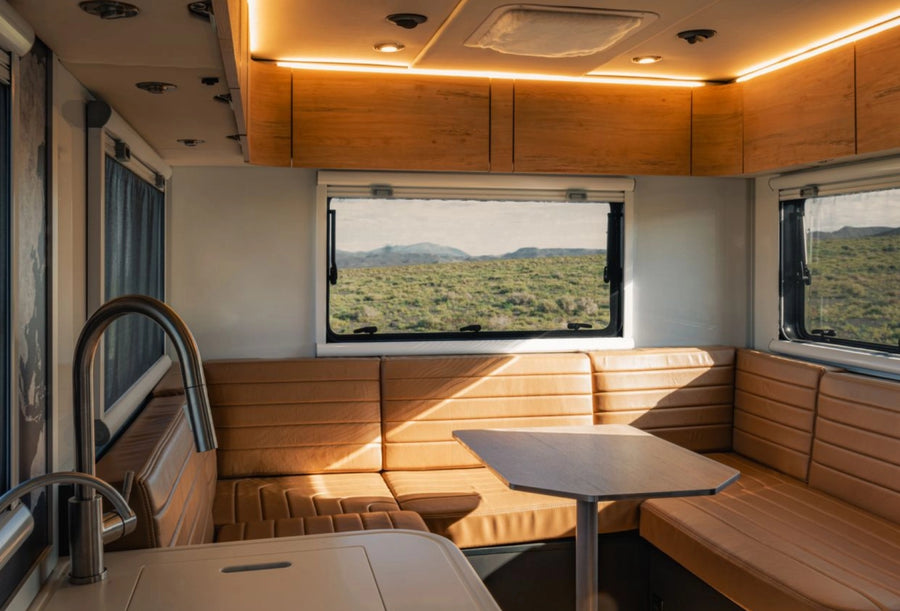

- Dinette Seating for 4 Adults
- Dimmable, Programmable Lighting
- Soft Touch Cabinet Finish
- Galley w/ Storage Drawers & Pull-Out Trash Bin
- Upper Cabinet Storage
- Storage in Loft w/ Phone Chargers
- Closet w/ Hanging Rod & Fold-Away Shelves
- Ducted 15k BTU Air Conditioner
- Two Deluxe Exhaust Fans
- 10k BTU Hydronic Heat System w/ 2 Air Handlers
Exterior
- High-Pressure Spray-On Bedliner
- Liquid Spring® Smart Suspension™ System w/ Tru-Earth Leveling™

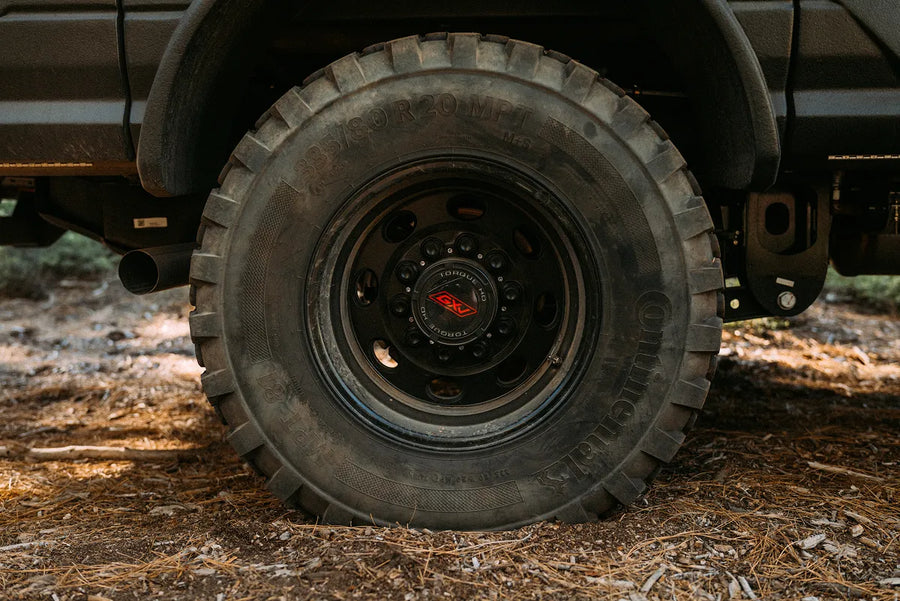

- EVICTUS™ Expedition Forged Aluminum Wheels w/ 41” Multi Purpose Tires
- Dual ARB® Compressors w/ 1 Gal Tank
- Rugged Alloy Front Bumper
- 20k lb Winch
- Extreme 360° lighting package
  - Eight 10” KC HiLiTES® Perimeter Light Bars
  - Five 8” KC HiLiTES® Front Lights

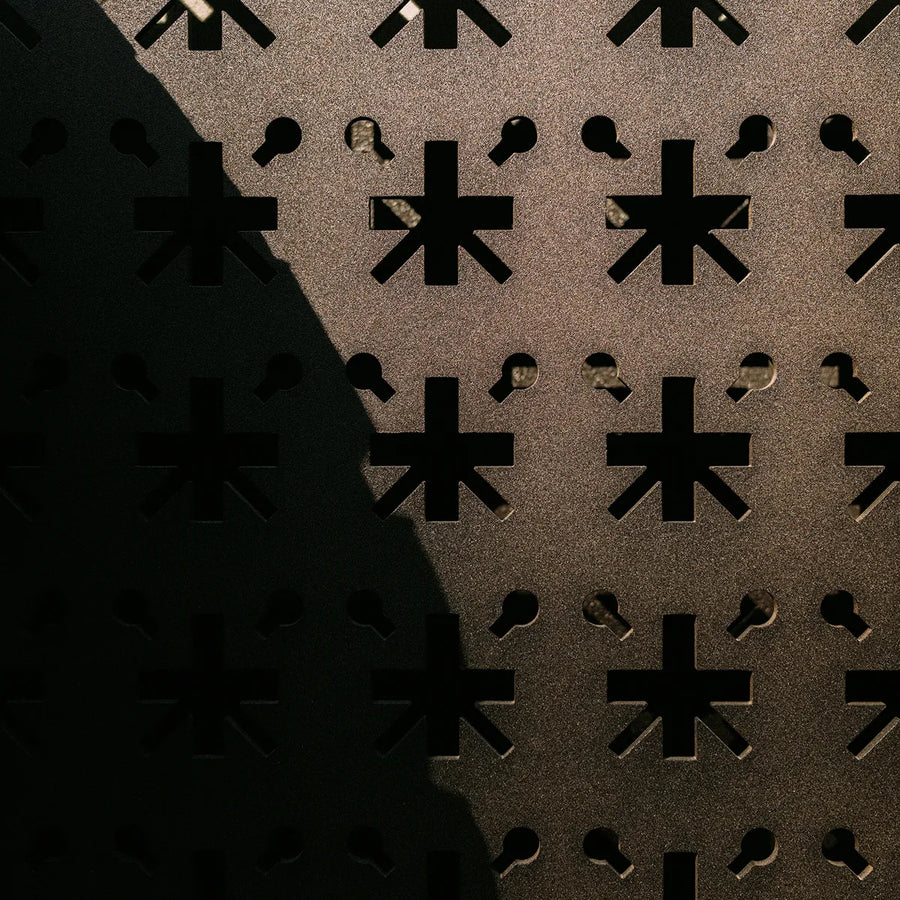

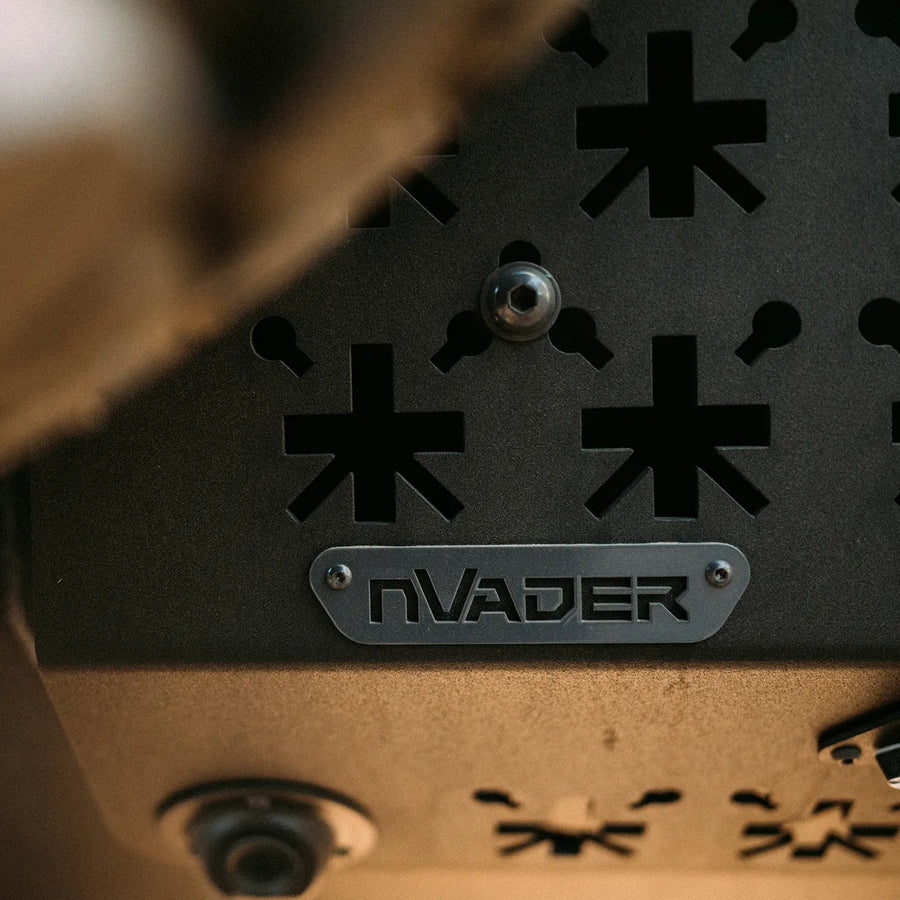

- nVader® Rear Storage Racks
- Three Lockable Cargo Hatches
- Lockable Pass-through Storage, 24ft³
- 13’ x 8' Dual Pitch Awning w/ Dimmable LEDs

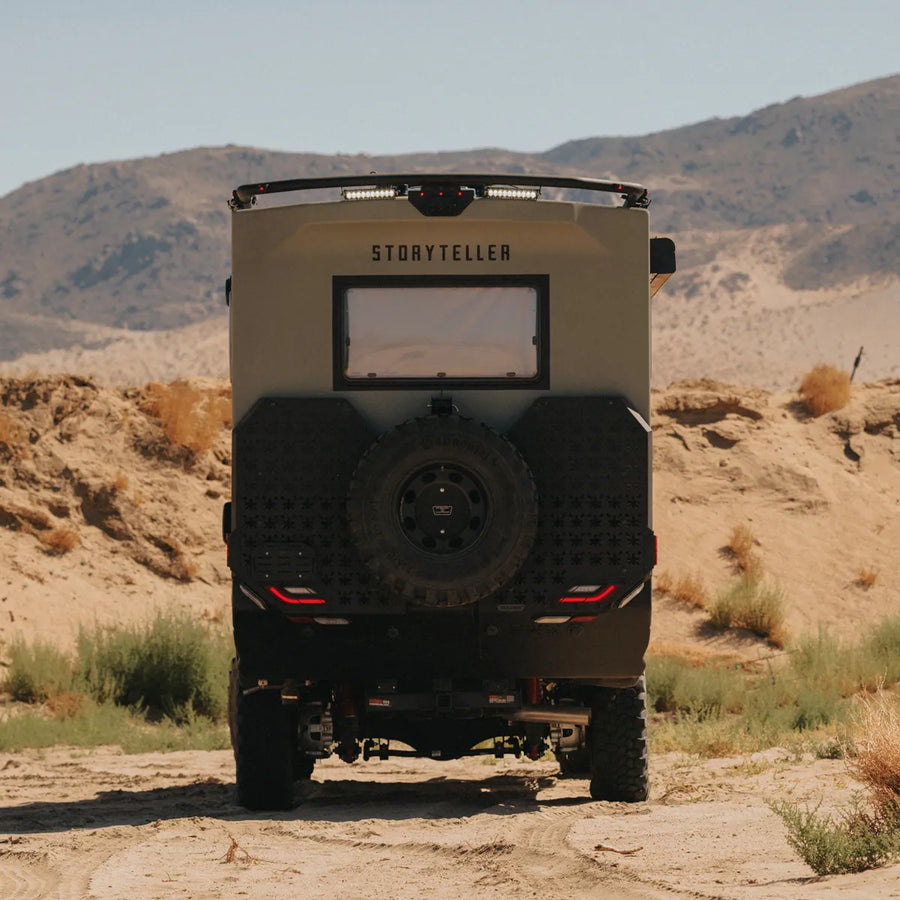

- Full-size Spare w/ Electric Winch System
- Starlink Mini
- Steel Electric Entry Step
Energy System
- 16.8kWh M-Power™ System (Powered by Lithionics®)
- Two 3000W High-Capacity Inverters
- 1320W Rated Solar Panels³
- Mission Control Touchscreen Display
Safety
- Smoke & CO Detector

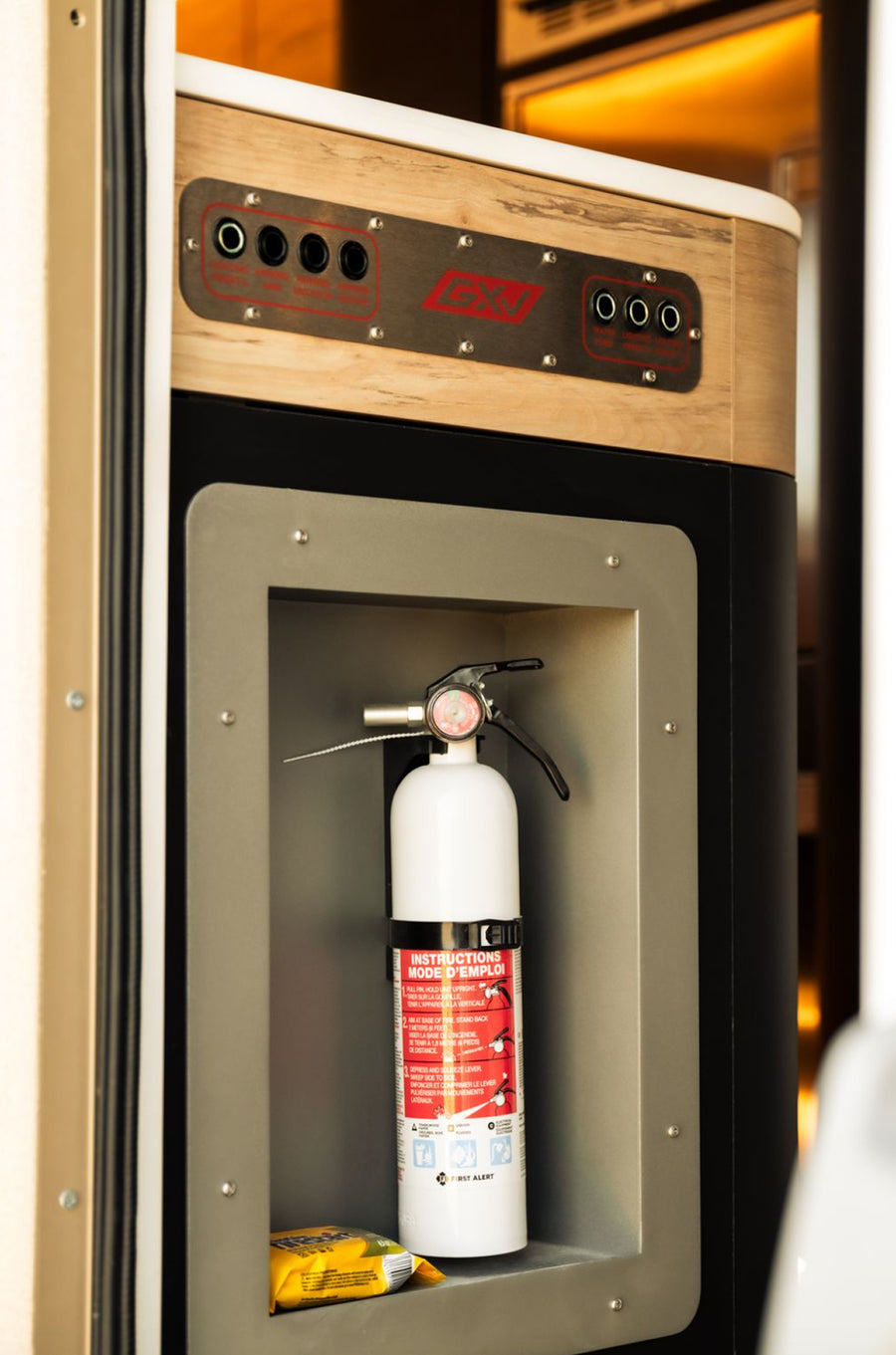

- Fire Extinguisher
- Ground Fault Circuit Interrupter
Galley
- Stainless Steel Refrigerator/Freezer, 6.9ft³
- Stainless Steel Convection Oven, Microwave & Air Fryer
- 1800W Dual Burner Induction Cooktop
- Large Stainless Steel Sink w/ Cover
- Guzzle H2O® Water Purification System
Bath

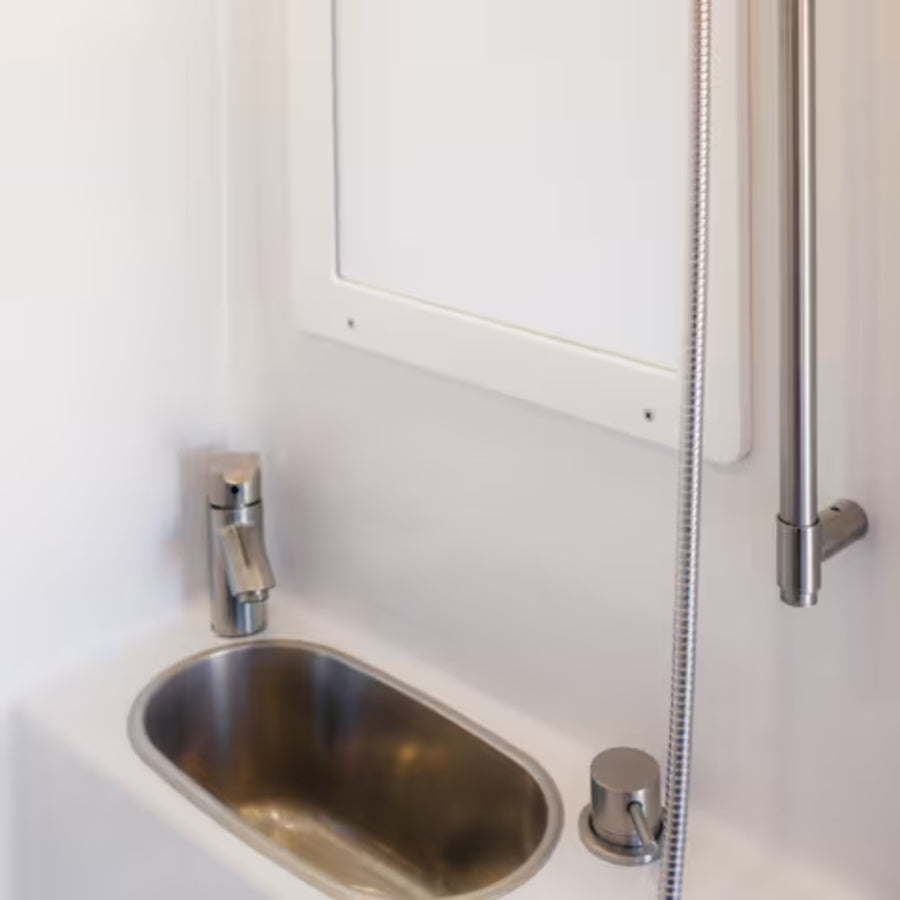

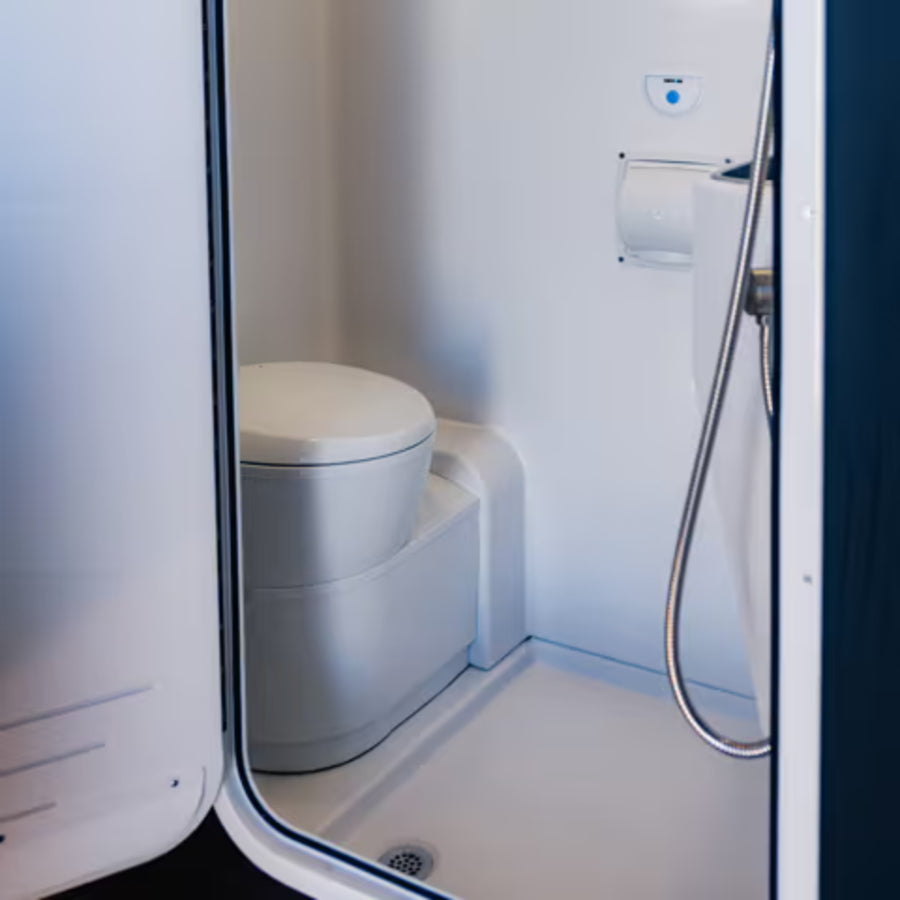

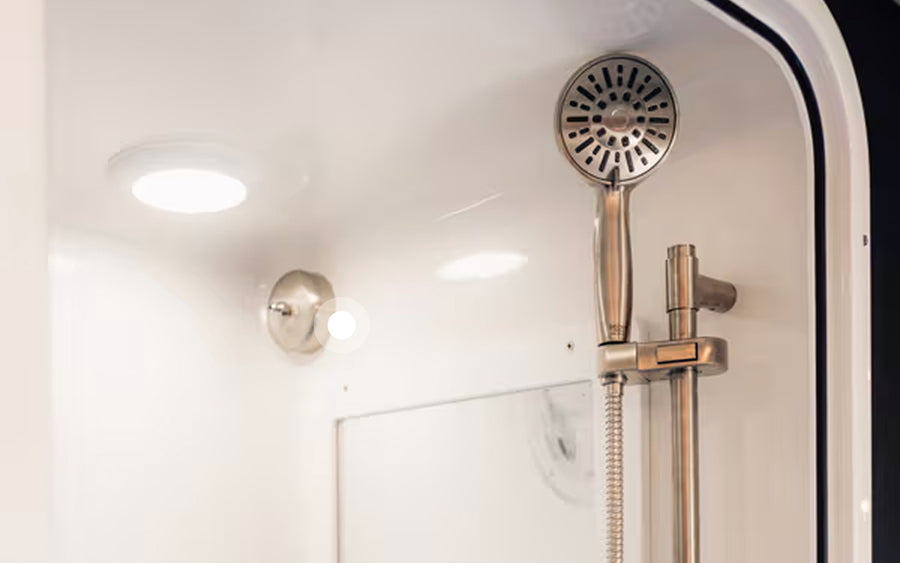

- Full Wet/Dry Bath w/ Shower & Sink
- Cassette Toilet w/ Freshwater Flushing
- Exhaust Fan
- Dry Storage, Mirror & Retractable Clothes Line
Warranties
Storyteller Overland® + Lithionics® Warranties:
- 1-Year/15,000 Mile Storyteller Overland® Limited Warranty
- 3-Year/36k Mile Limited Capsule Structural Warranty
- Lithionics® Battery Warranty
- M-Power Battery System by Lithionics: 5-Year
- Hydronic Heating System: 2-Year
- Air Conditioner and Exhaust Fan: 2-Year
- Refrigerator: 2-Year
- Awning: 2-Year
Standard RAM® Warranty
- 5-Year/100,000 Mile Powertrain Limited Warranty

¹ See-Through, No Haggle pricing. Some images may show rigs with optional accessories.
² Monthly payment estimates do not include taxes, title, or registration fees and are based on a 20% down, 20-year RV loan at 7.99% APR. The payment estimates are provided for informational purposes only and may reflect assumptions that may not apply to you or loan terms for which you may not qualify. Please contact your local dealer for an estimate that is more accurately tailored to your circumstances. Storyteller Overland, LLC and its affiliates do not make any representation that any particular terms or financing are available.
³ Solar efficiency varies.

GXV HILT FLOOR PLAN HIGHLIGHTS

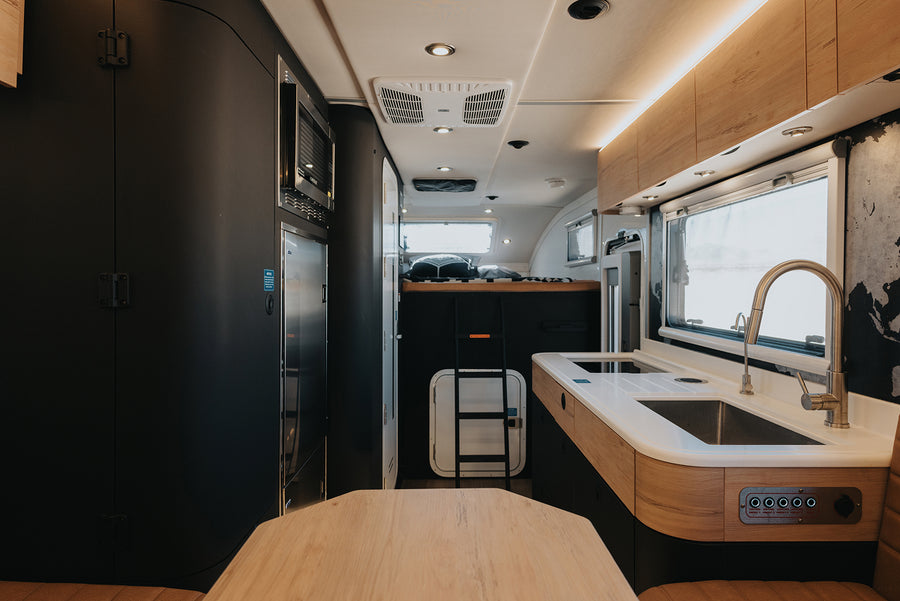

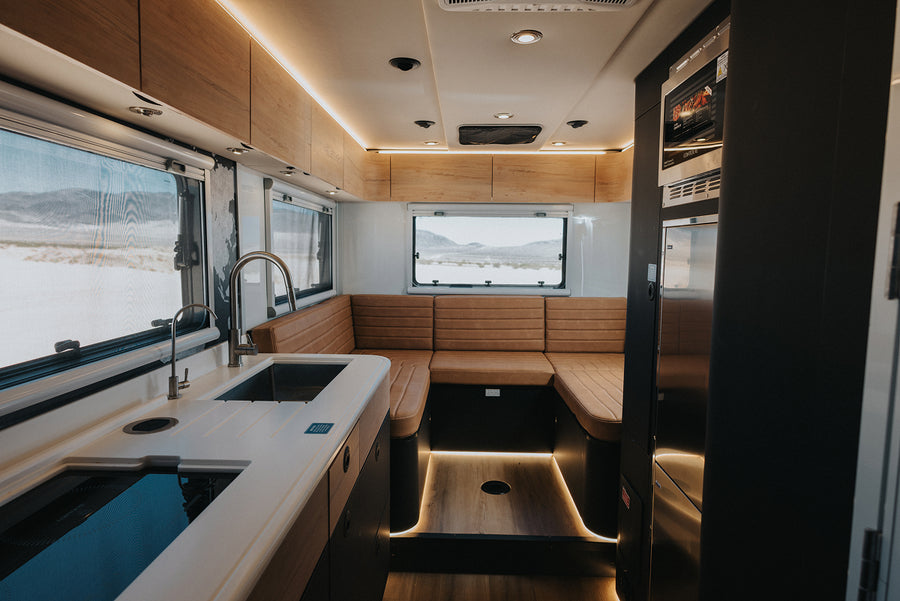

Kitchen

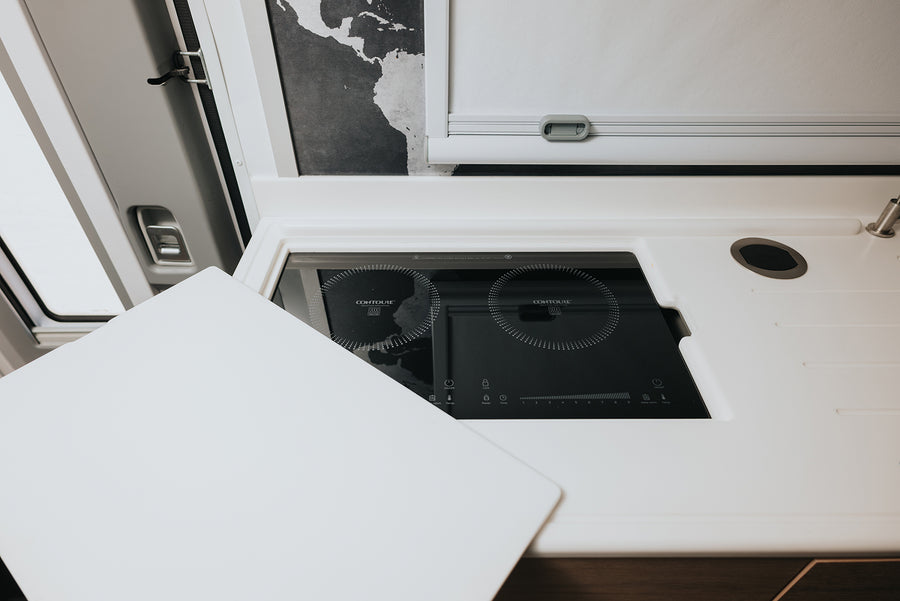

Cook like you're home — a stainless steel convection oven, microwave, air fryer, and 1800-watt dual burner induction cooktop cover every meal on the road.

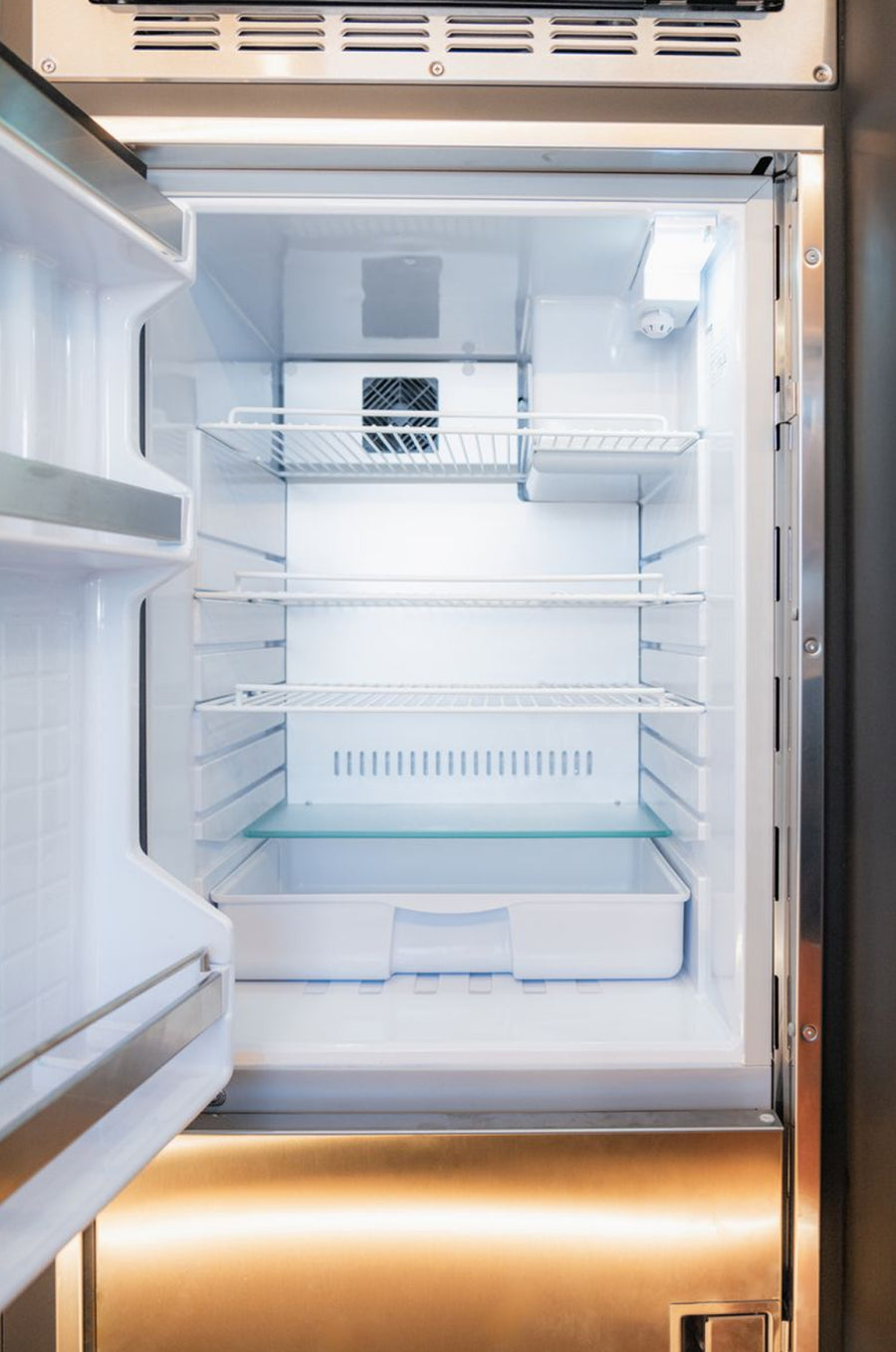

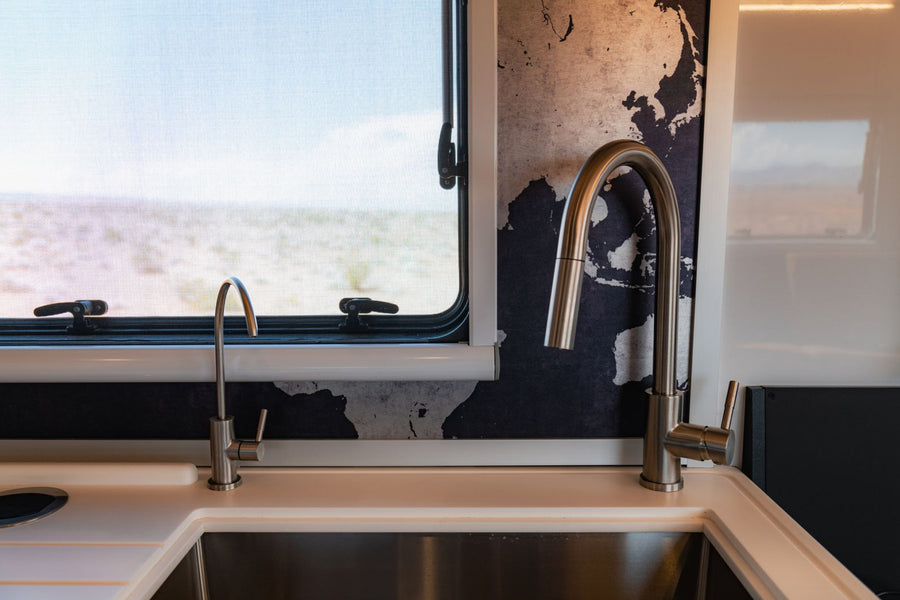

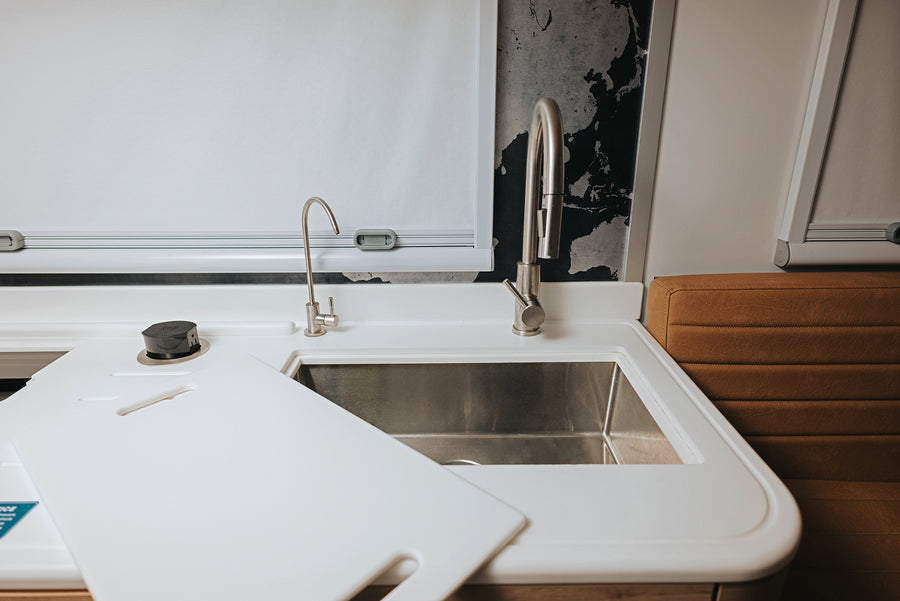

The quiet, stainless steel fridge and freezer offer 6.9 cubic feet of interior volume, so you can go off-grid for days without a resupply run. A large sink with cover, hot and cold faucet controls, and a built-in Guzzle H2O® purification system mean fresh drinking water with no extra filters to install.

Sleep Under The Stars

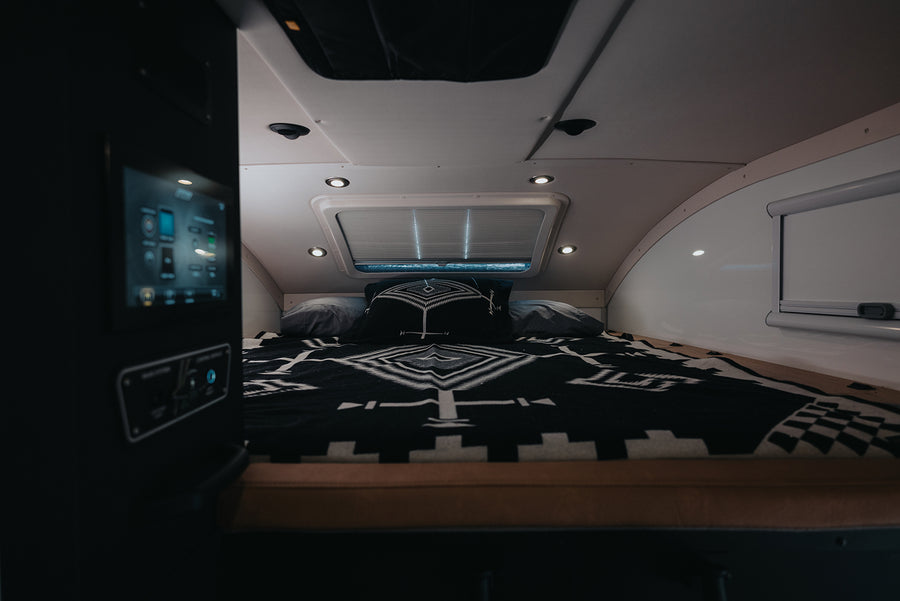

The loft RV Queen bed features a sky-facing window, allowing you to sleep under the stars. Additionally, the loft RV Queen includes 3.7 cubic feet of total bin storage, 12-volt USBs, 110-volt outlets and wireless charging stations next to the mattress.  

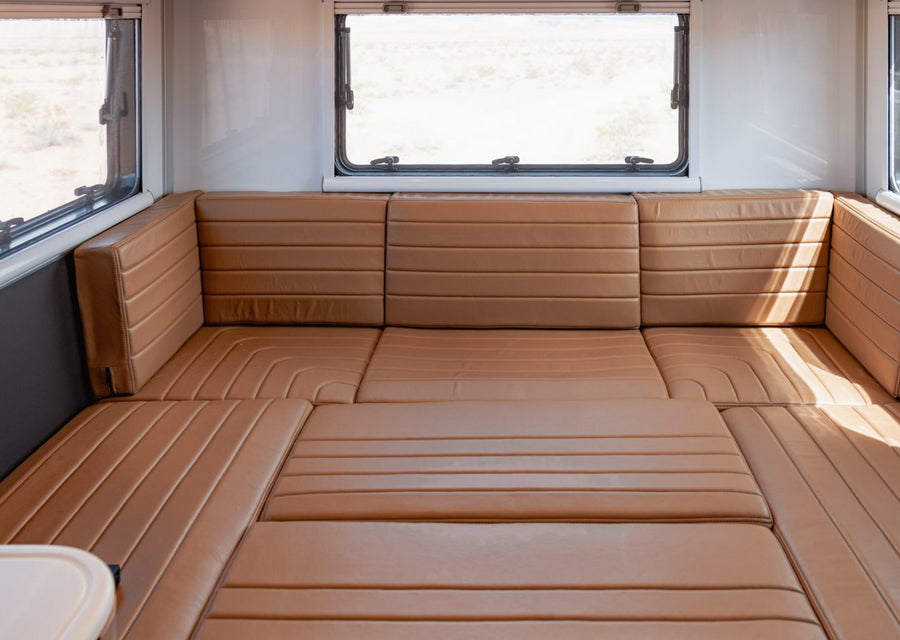

The HILT Dinette easily converts to a second RV Queen-sized bed.

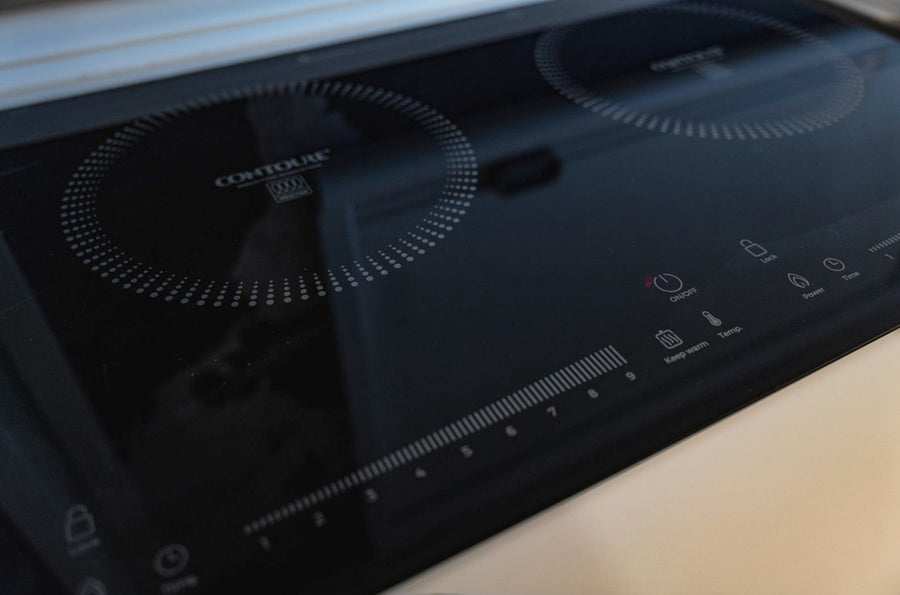

Storyteller Overland GXV HILT Kitchen Utilities

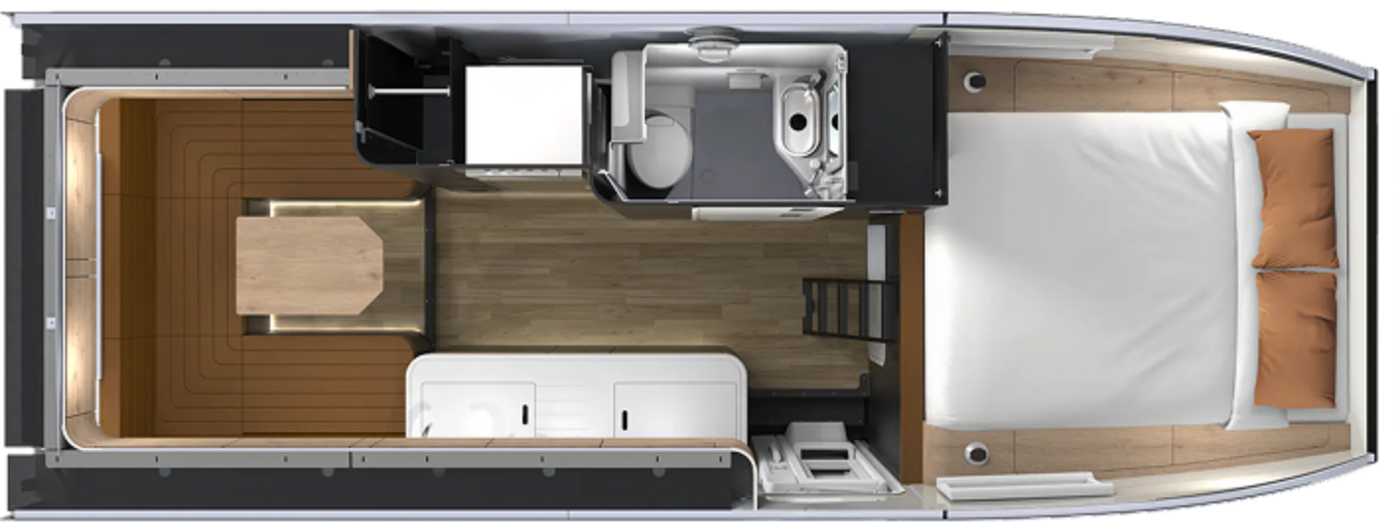

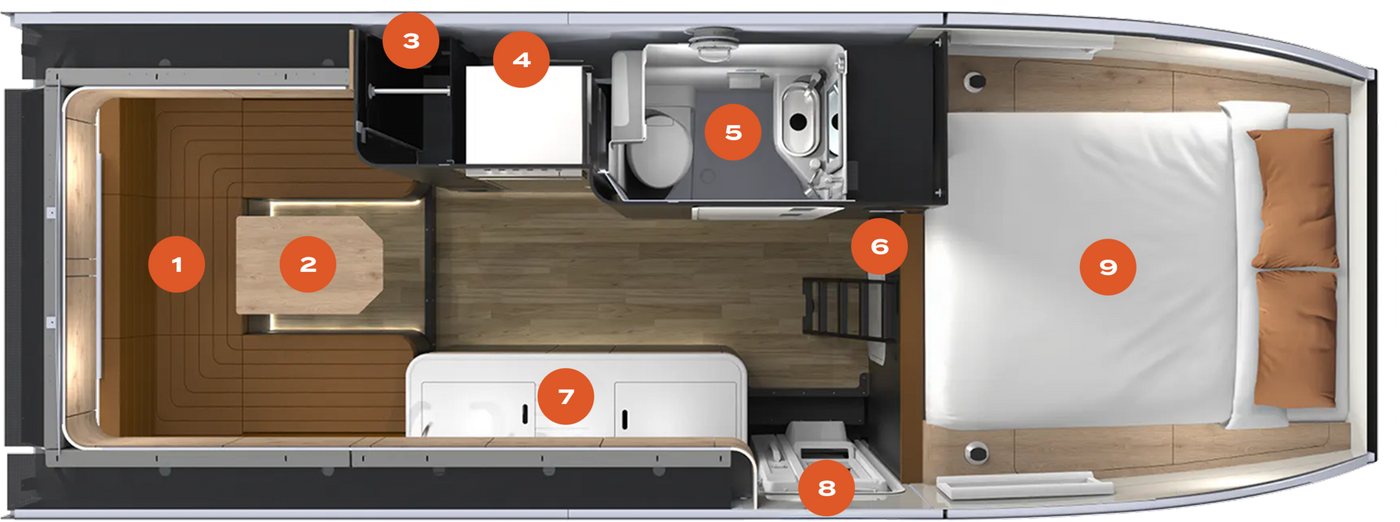

OG Floorplan

Camper van floor plan with bed, bathroom, kitchen, dinette area for overland adventure travel

Camper van floor plan with labeled living area, kitchen, wet bath, bed and storage, ideal for adventure van, Class B RV, overland road trips, vanlife, and nomadic lifestyle.

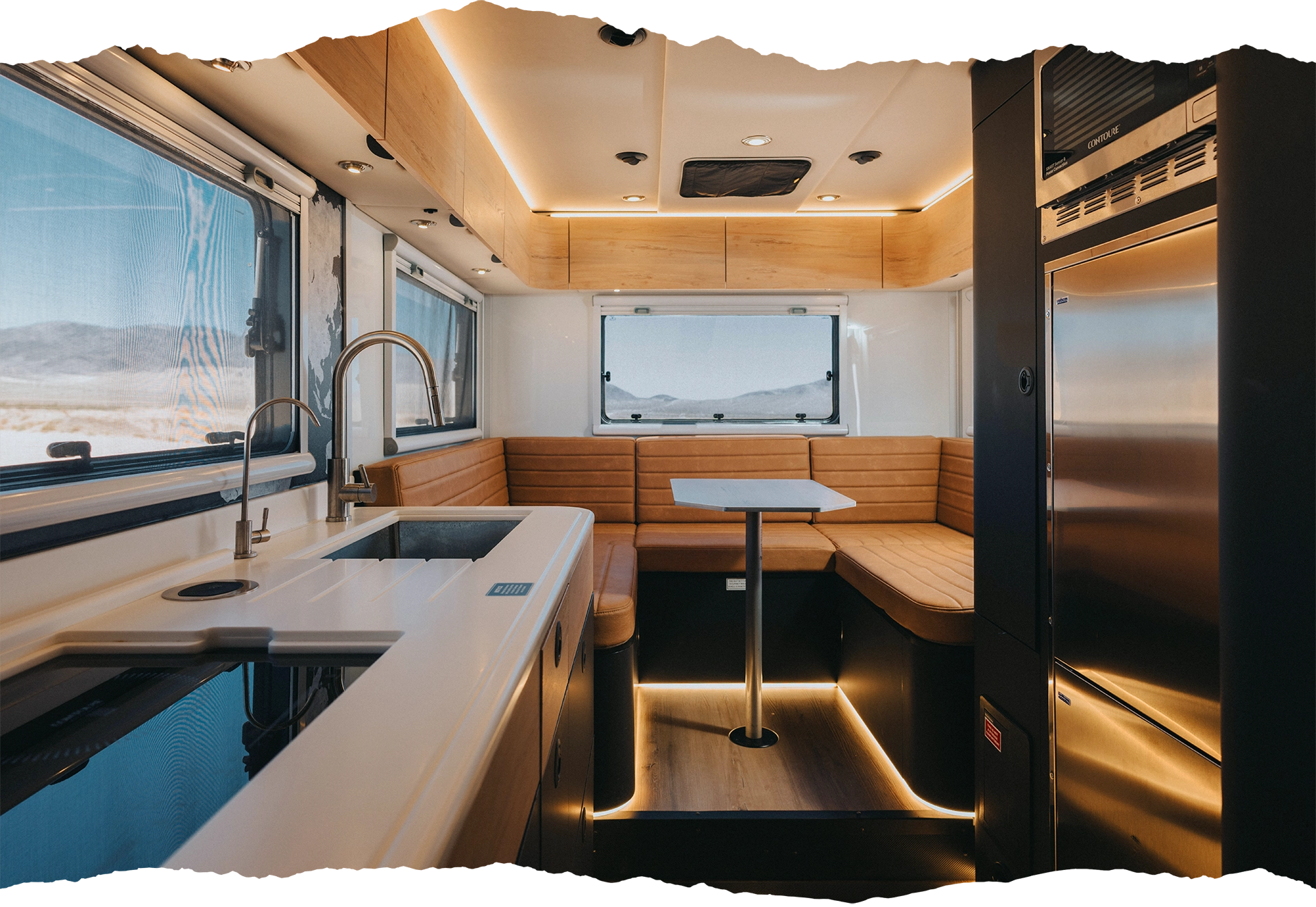

1 Dinette Seating Area

2 Dinette Table

3 Closet Interior

4 Stainless Steel Refrigerator/Freezer

5 Full Wet/Dry Bath

6 Pass-Through Door

7 Galley

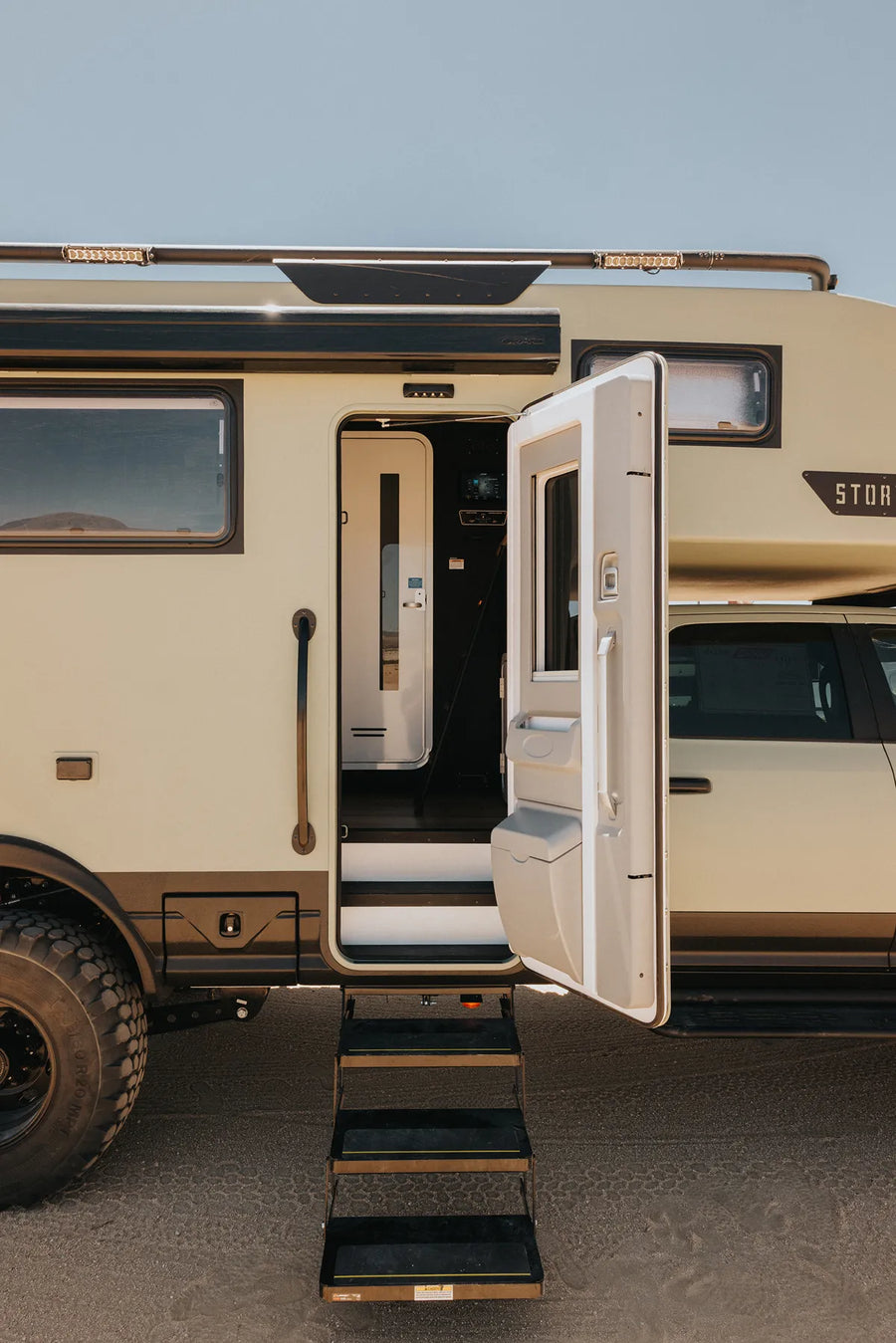

8 Entry Door

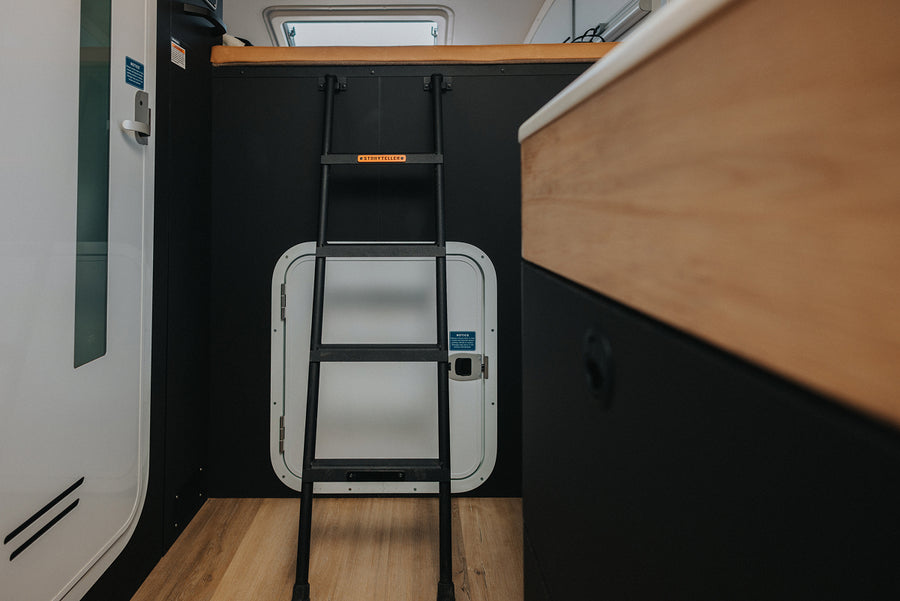

9 Loft: RV Queen Size Bed

Rugged Yet Refined

Enjoy the ease of thoughtful, streamlined, intuitive design that allows you to comfortably and confidently pursue life's grand adventures.

Storyteller Overland Gritty Background Texture

PROPRIETARY NO TORSION SUBFRAME

We spent countless hours developing a special no torsion subframe system that allows independent movement of the capsule from the chassis. This reduces overall stress to the capsule and improves off-road traction.

PERFORMANCE

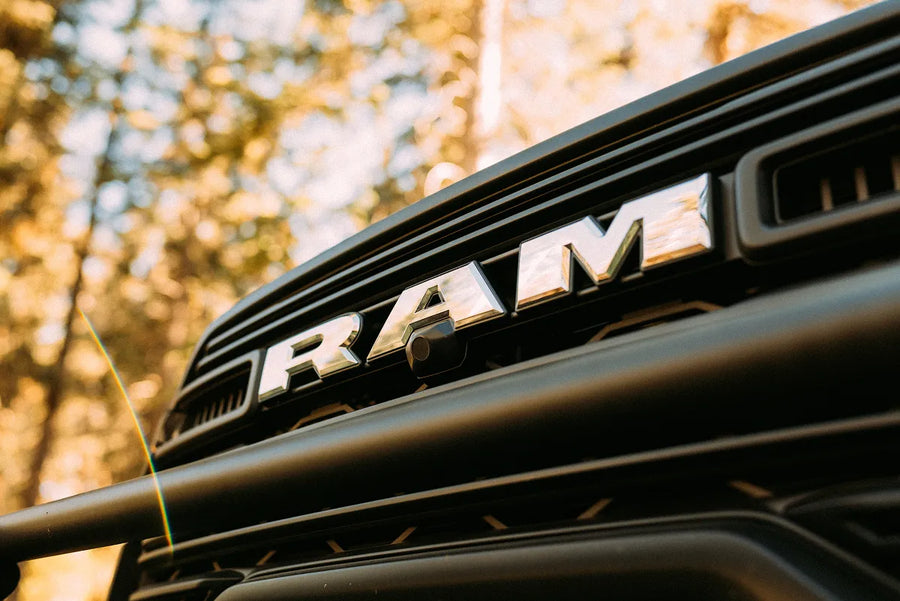

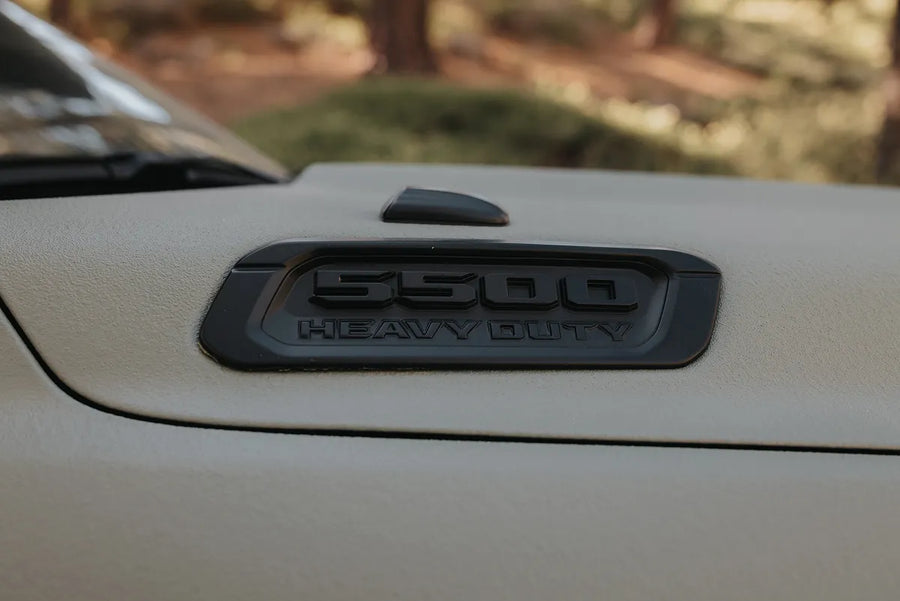

RAM® 5500 chassis with  a 6.7L Cummins® Turbo Diesel Engine

The HILT chassis delivers serious power and is fully equipped with top tier factory features including: a 8-Speed HD Transmission, engine block heater, voltage-monitoring Auto-Idle-Up System and transfer case skid plate shield.

20,000lb Winch

Rugged Alloy Front Bumper with an integrated 20,000 pound winch recovery system so you can explore safely and recover as needed.

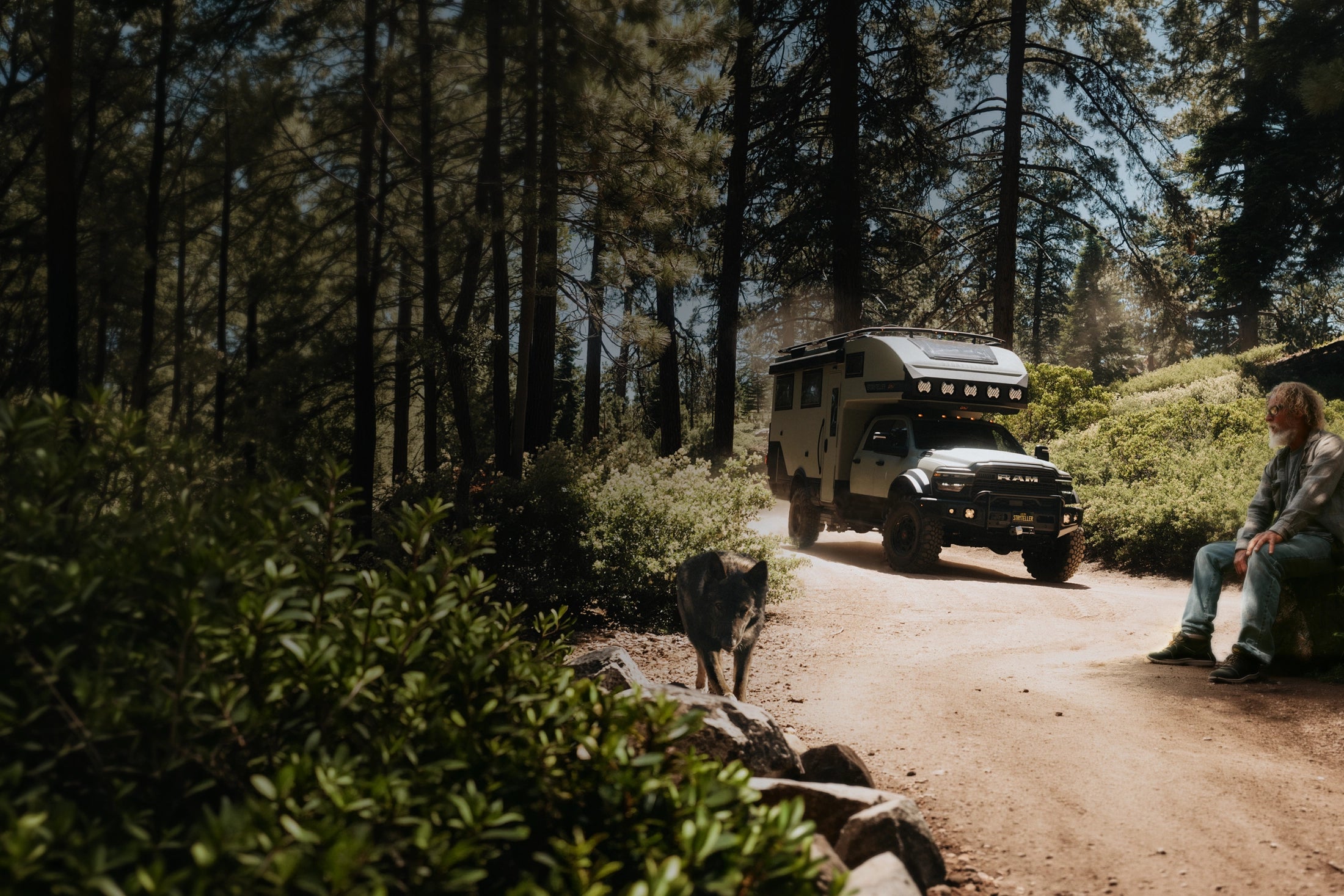

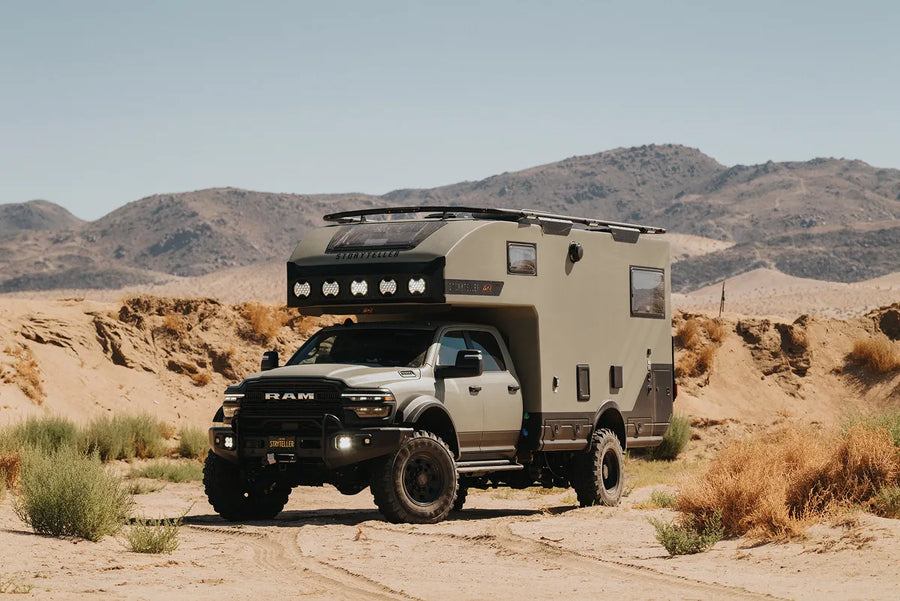

Storyteller Overland GXV HILT In The Elements

PERFORMANCE

LiquidSpring® Smart Suspension™ with Tru-Earth Leveling™

Equipped with a specially tuned hydraulic Smart Suspension™ System from LiquidSpring®. This system evaluates speed, steering, braking, and road inputs 1,000 times per second and adjusts for extremes, including automatic ride height adjustment with raising and kneeling capabilities for maximum maneuverability.

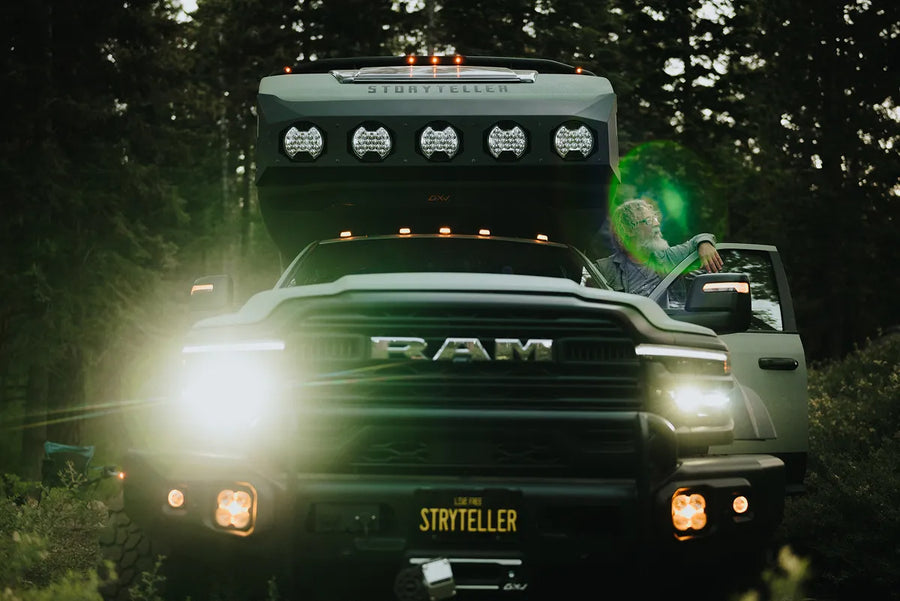

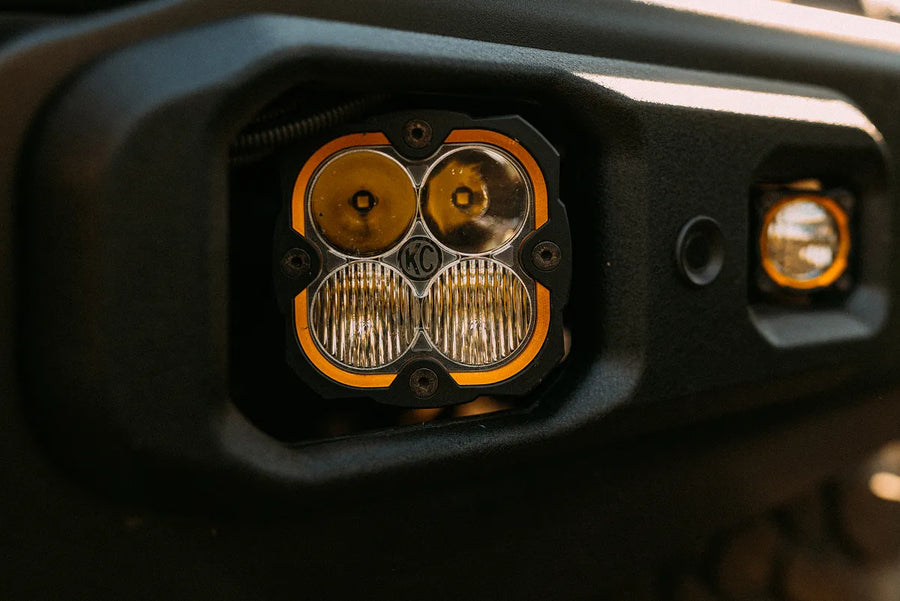

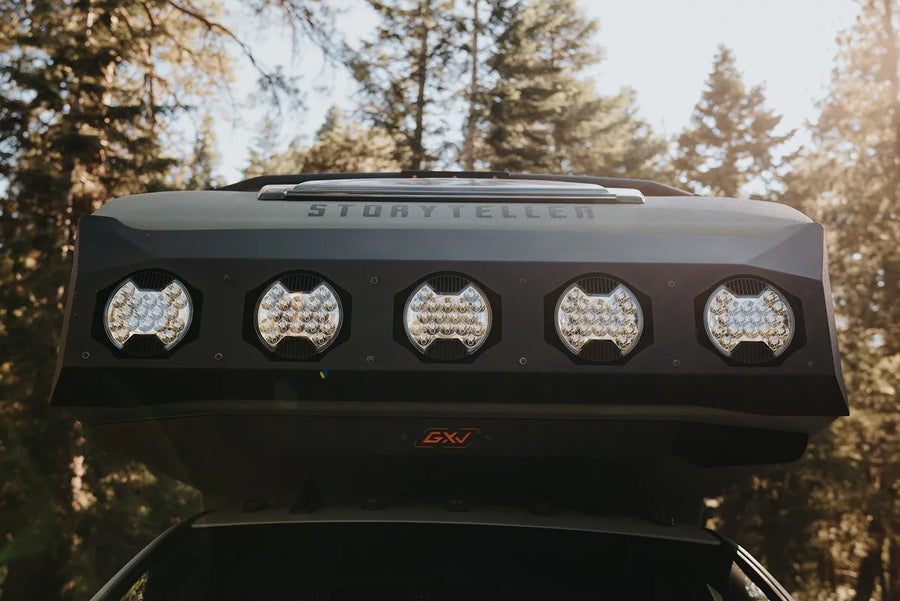

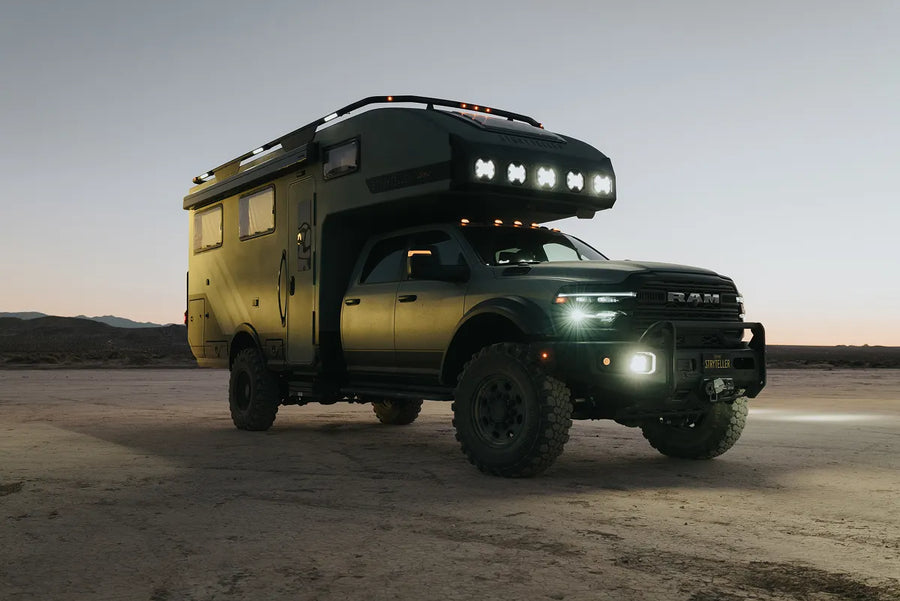

KC HiLiTES® 360° Lighting Package

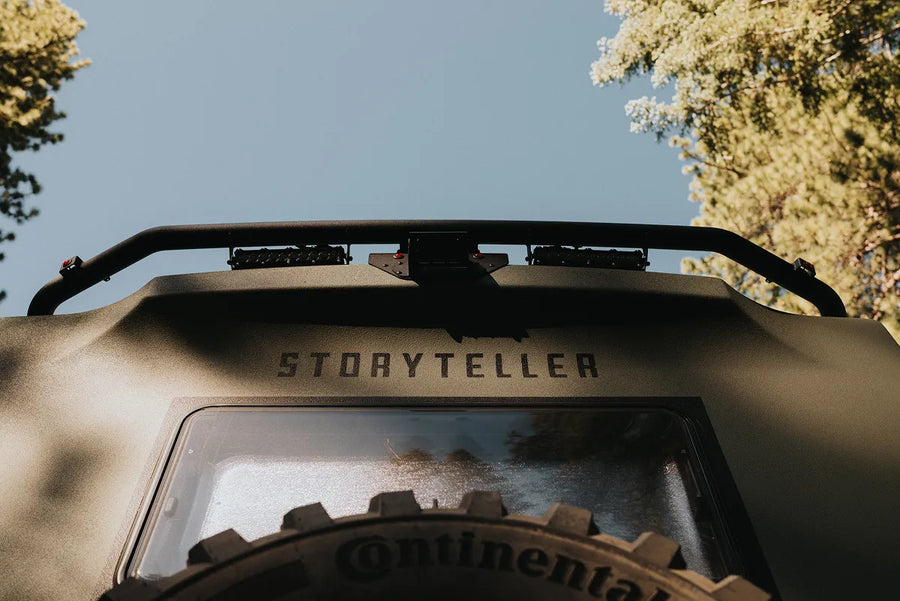

Extreme off-roading requires an extreme 360-degree exterior lighting package. In addition to four high-powered bumper mounted LEDs, the HILT’s front light bar features five 8-inch KC HiLiTES® and eight 10-inch KC HiLiTES® perimeter light bars mounted around the exterior.

Technology

Energy System

The GXV HILT lets you say “goodbye” to charging cords and power hookups with a robust 16.8kWh M-Power™ System, two 3000-watt, heavy-duty, high-efficiency inverters and solar panels rated up to 1320 watts.³

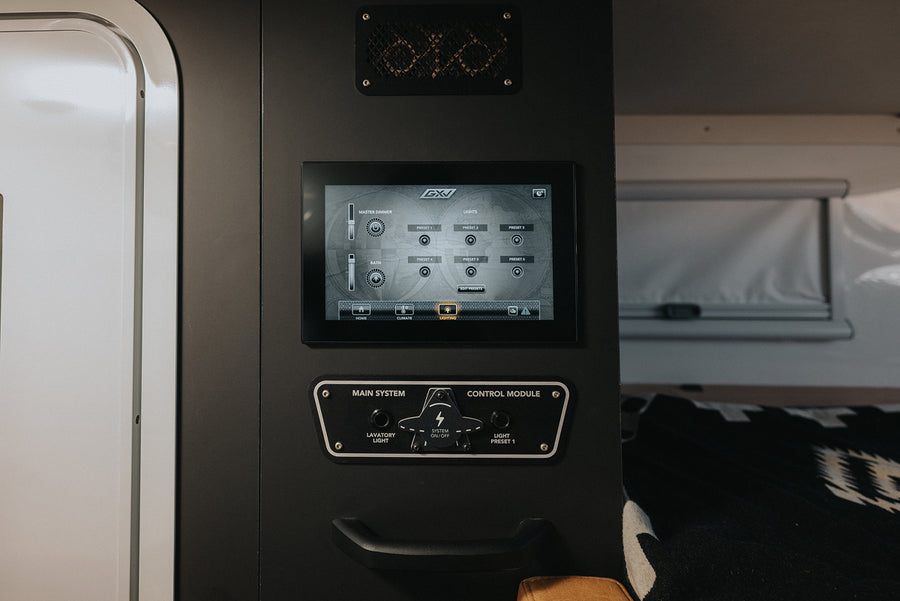

Mission Control System Makes it Easy

A Touchscreen Control System provides a user-friendly interface to manage your power system, water system, climate controls and lights.

Four-Season 
Design

16.8kWh

Energy System

Two 3000W  
High-Capacity Inverters

Storyteller Overland GXV HILT Lighting Controls

Storyteller Overland GXV HILT Control Panel

An Exterior Set Up for
Overland Adventures

The HILT delivers a rugged exterior and a spa-like interior. The exterior is made of innovative vacuum-infused resin composite with carbon fiber and Kevlar® reinforcements which couple perfectly with our closed-cell acoustic/thermal insulation for quiet, climate-controlled comfort.

Upping the Game On Quality, Lowering The Barrier To Entry On Price

We believe adventure belongs to everybody, which is why we’re manufacturing this best-in-class adventure van at scale. This means you’ll get a highly engineered truck with all the benefits of buying off of Storyteller Overland’s production line.
