2026 GXV Hilt

$499,722¹ | $3,359/mo²

$499,722¹ | $3,359/mo²

I'm interested

Live full tilt
and to the

4 Seatbelts
2 Beds
Full Bathroom

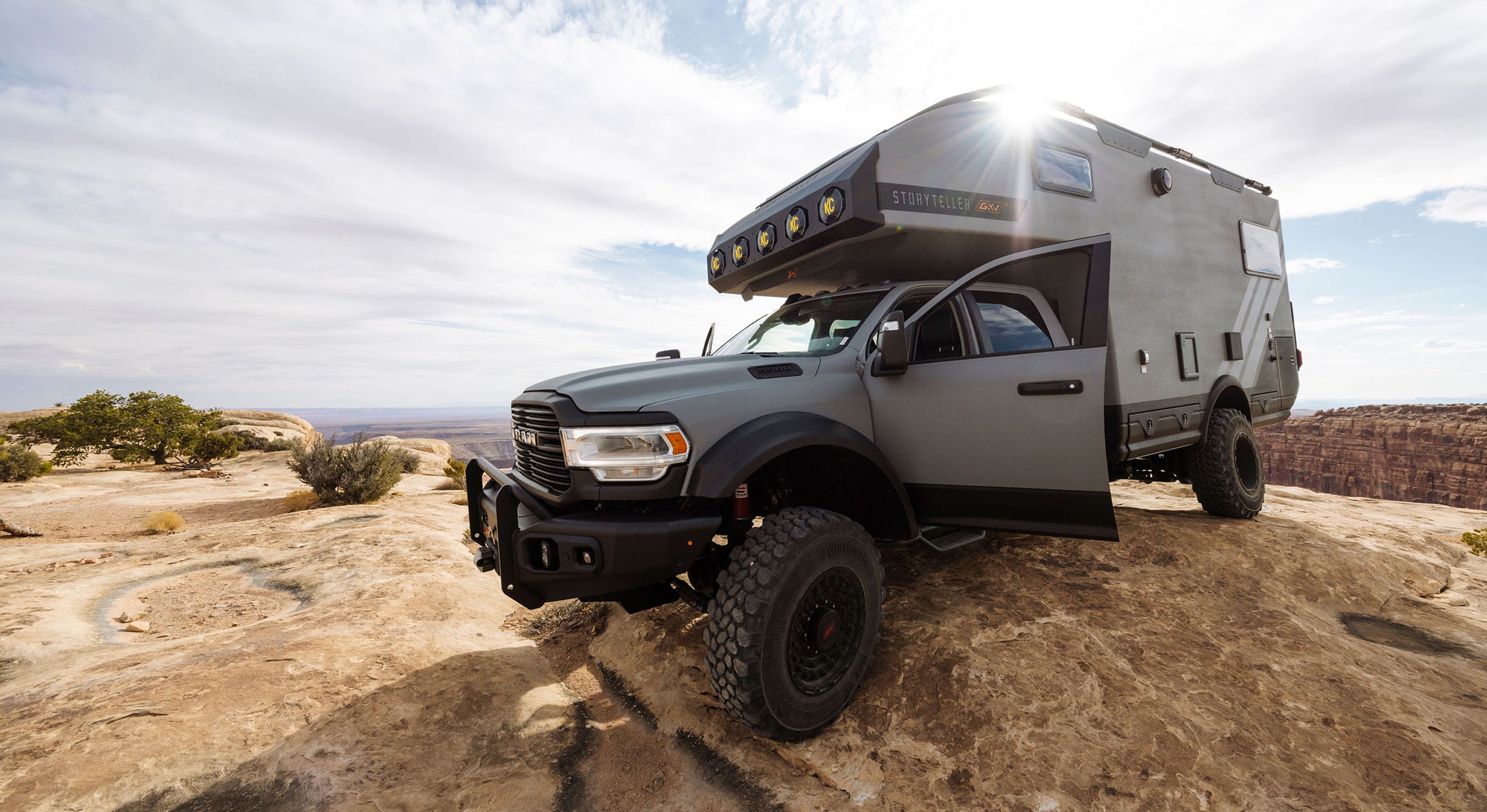

Built on the RAM® 5500 chassis with a 6.7L
Cummins® Turbo Diesel engine and equipped with
Laramie™ Level 2 Cab features.

THE MOST CAPABLE
AMERICAN PRODUCTION
ADVENTURE TRUCK

The Storyteller GXV HILT® is crafted to take you farther into the wild than you’ve ever gone with greater confidence and creature comfort than you’ve ever experienced before. Featuring innovative designs and a best-in-class build, the HILT is the official adventure truck for wild-at-heart trailblazers everywhere.

FORGE AHEAD.

BUILT FOR TOP TIER

PERFORMANCE + CAPABILITY

Explore Endlessly

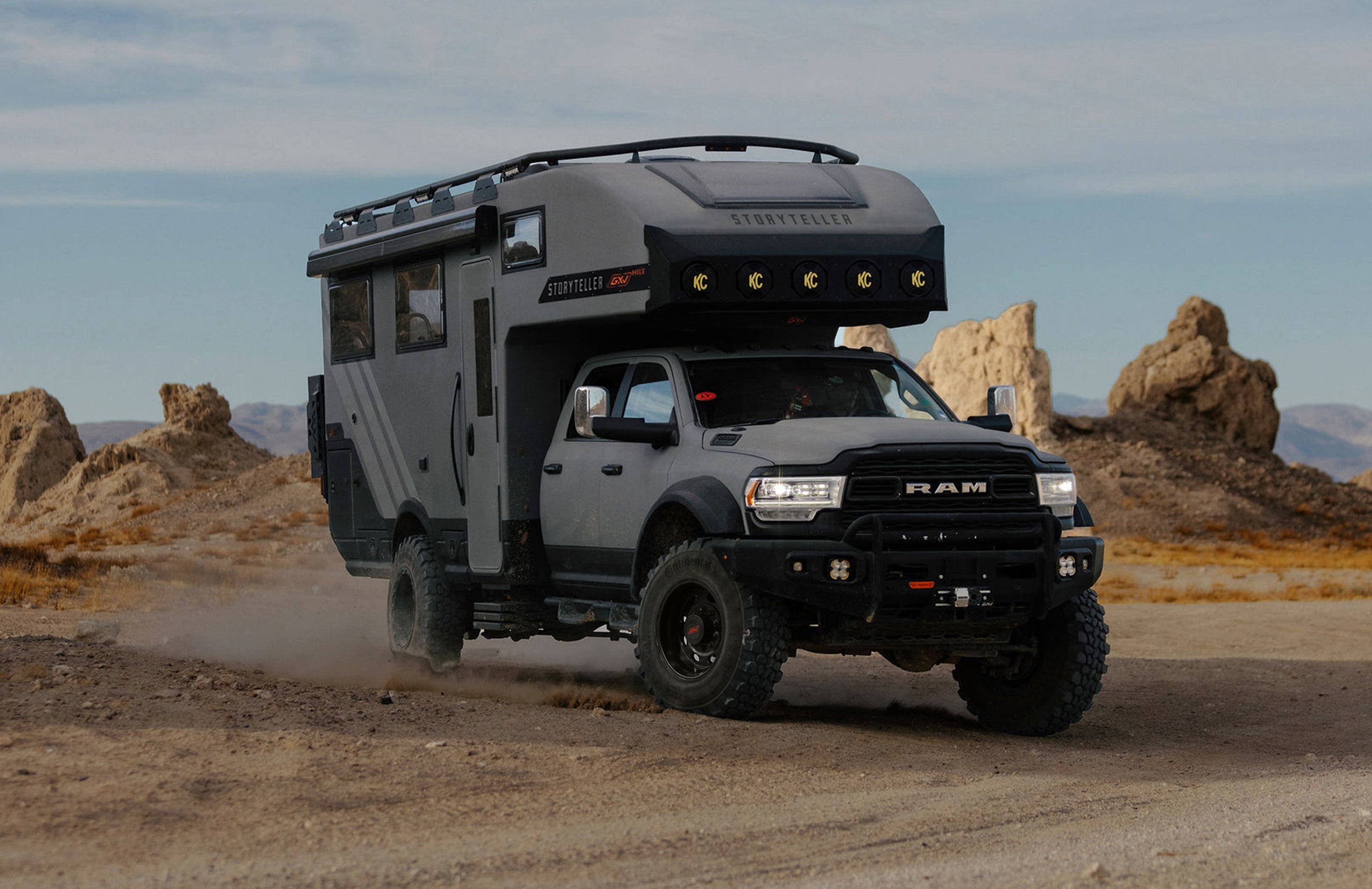

Built on the RAM® 5500 chassis with a 6.7L Cummins® Turbo Diesel engine that delivers 800 foot pounds of torque – the HILT guarantees a super responsive and fiercely capable ride. Equipped with an engine block heater, Auto-Idle-Up System, a heavy-duty Transmission and a 52 gallon fuel tank with an auxiliary fuel tank that brings your total fuel capacity to an impressive 74 gallons, the HILT is ready for every adventure you dream to pursue.

Rugged Luxury

The exterior of the HILT is rugged, tough and uncompromising. But step inside and you’ll find the interior is just as uncompromising when it comes to comfort, style and four-season ingenuity. With the HILT’s innovative vacuum-infused resin composite with carbon fiber and Kevlar® reinforcement cabin structure, a generous  two inches of closed cell foam insulation and superior HVAC system, this rig delivers high-efficiency climate control in the most severe environments.

Off-Grid Not Offline

Get beyond the edges of the map without compromising power and connectivity. The HILT is equipped with the 16.8 kWh M-Power™ System, two 3000W heavy-duty, high-efficiency inverters and 1320W rated solar panels.³ Easily integrate Starlink® for internet access everywhere.

Private Spa On Wheels

The HILT Full Bath delivers a spacious 6’5” standing height shower, integrated sink and flushable cassette toilet. With a whopping 120 gallons of freshwater on-board, you can splurge on multiple long, hot showers during your off-grid trip.

Overland Innovation

The GXV HILT combines our Proprietary No Torsion Subframe and LiquidSpring® Smart Suspension™ with Tru-Earth Leveling™ for enhanced stability, surefooted traction and peak performance.

KC HiLiTES® 360° Lighting Package

Travel confidently day or night, on and off-road with the HILT’s KC HiLiTES® 360° Lighting Package, Rugged Alloy Front Bumper with an integrated 20,000 pound winch recovery system and ARB® On-Board Air Compressor.

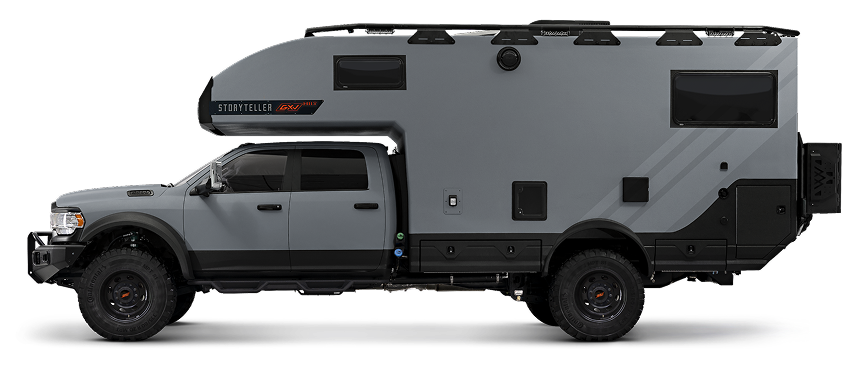

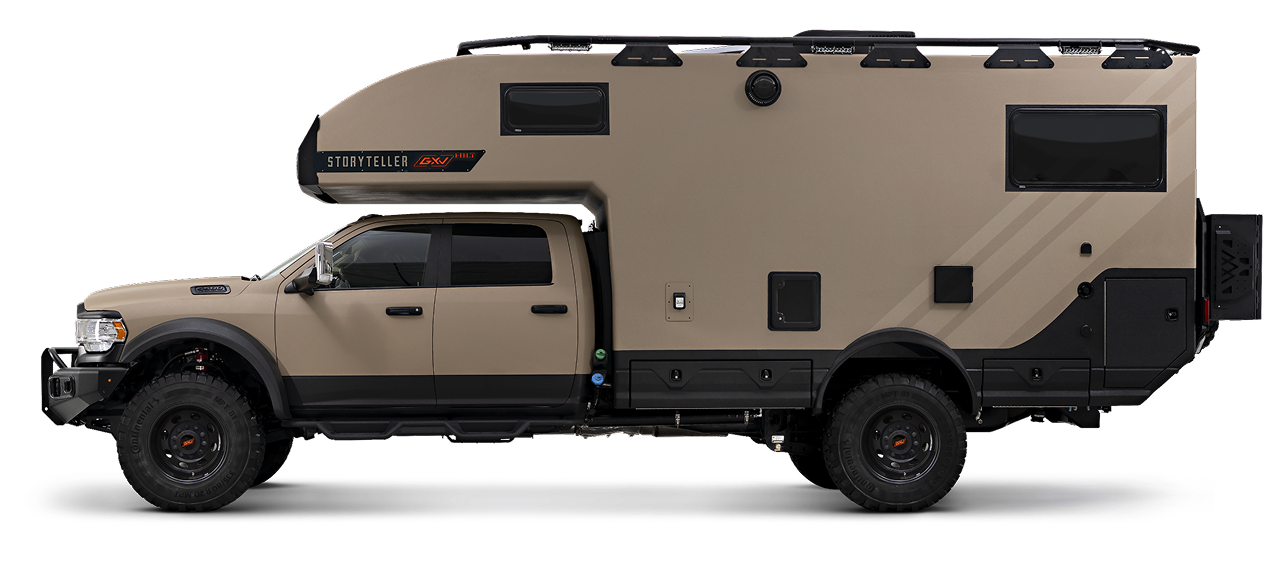

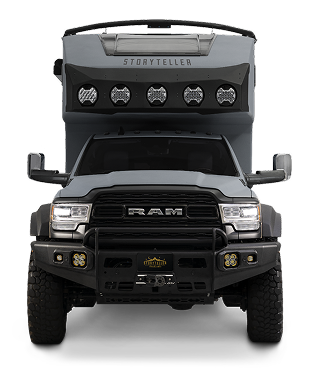

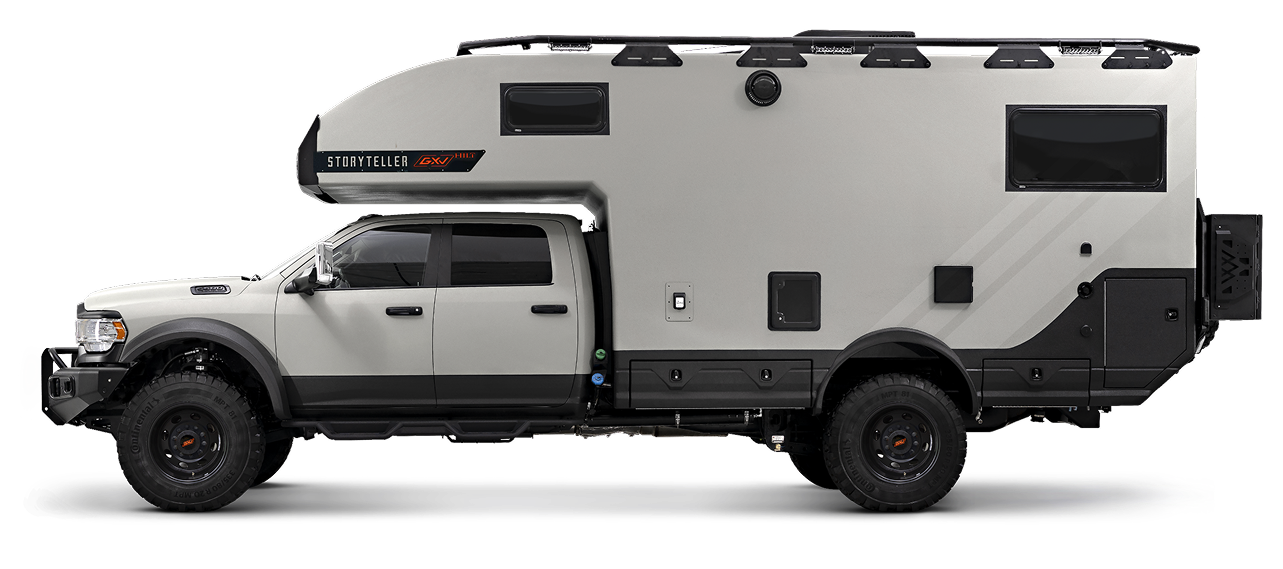

GXV HILT
COLOR SELECTION

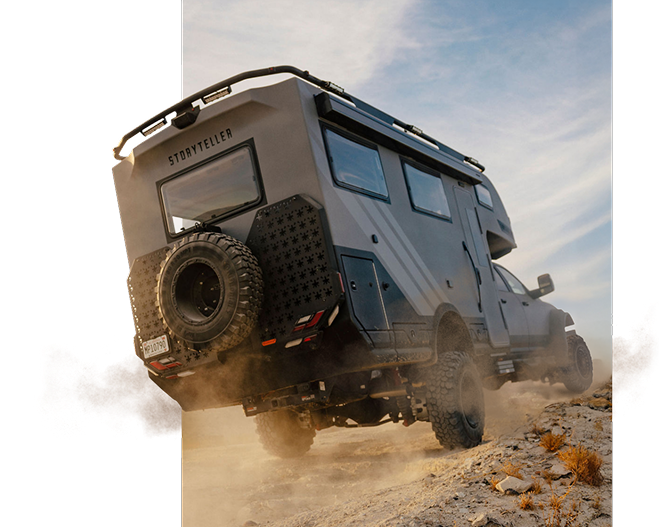

PROPRIETARY NO TORSION SUBFRAME

We spent countless hours developing a special no torsion subframe system that allows independent movement of the capsule from the chassis. This reduces overall stress to the capsule and improves off-road traction.

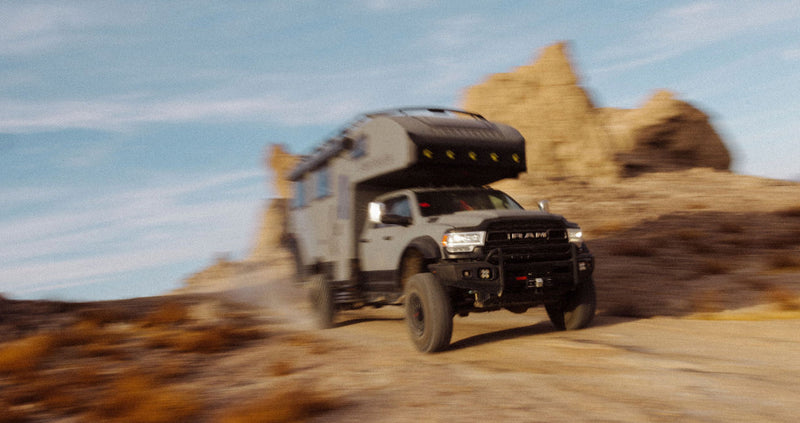

PERFORMANCE

RAM® 5500 chassis with
a 6.7L Cummins® Turbo Diesel Engine

The HILT chassis delivers serious power and is fully equipped with top tier factory features including: a 8-Speed HD Transmission, engine block heater, voltage-monitoring Auto-Idle-Up System and transfer case skid plate shield.

LiquidSpring® Smart Suspension™ with Tru-Earth Leveling™

Equipped with a specially tuned hydraulic Smart Suspension™ System from LiquidSpring®. This system evaluates speed, steering, braking, and road inputs 1,000 times per second and adjusts for extremes, including automatic ride height adjustment with raising and kneeling capabilities for maximum maneuverability.

PERFORMANCE

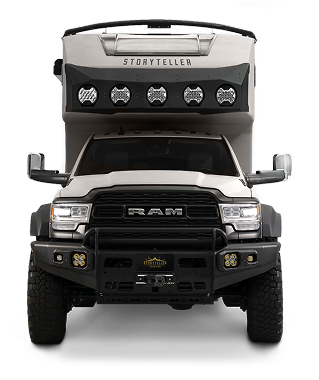

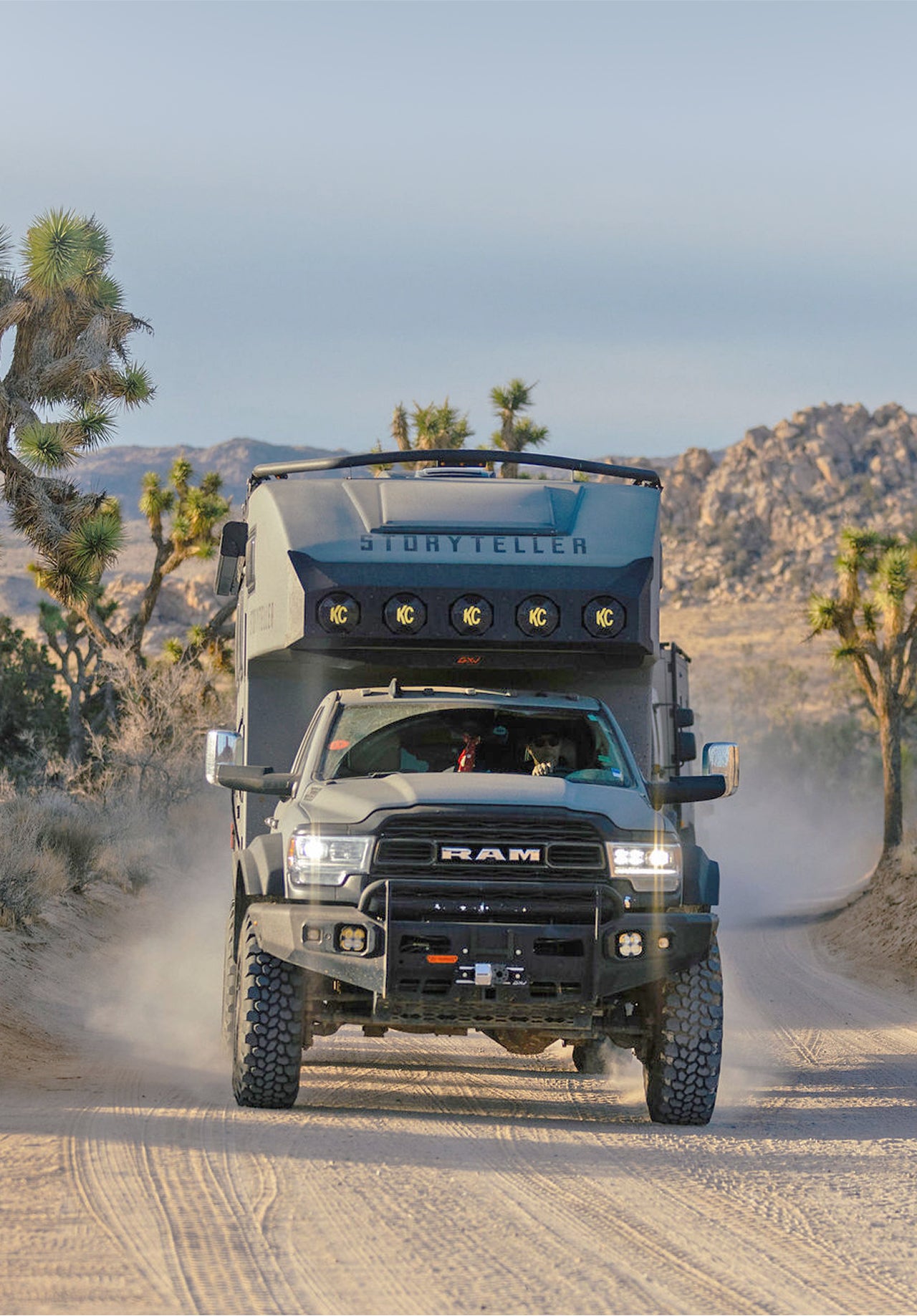

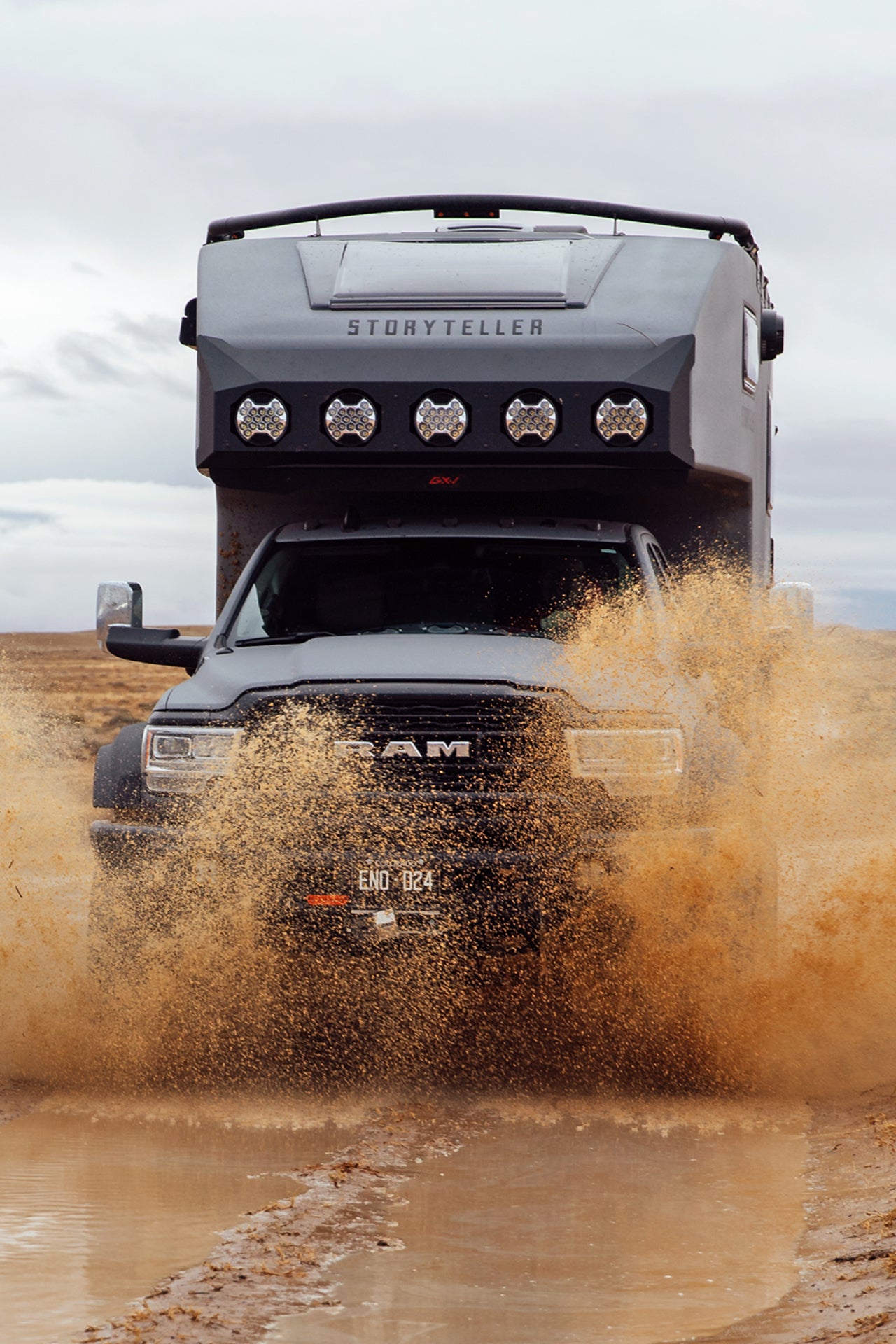

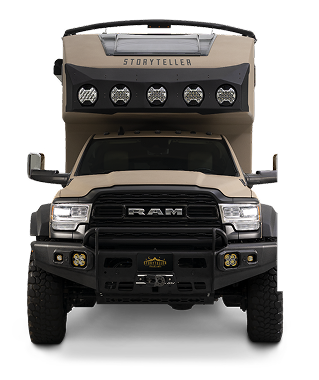

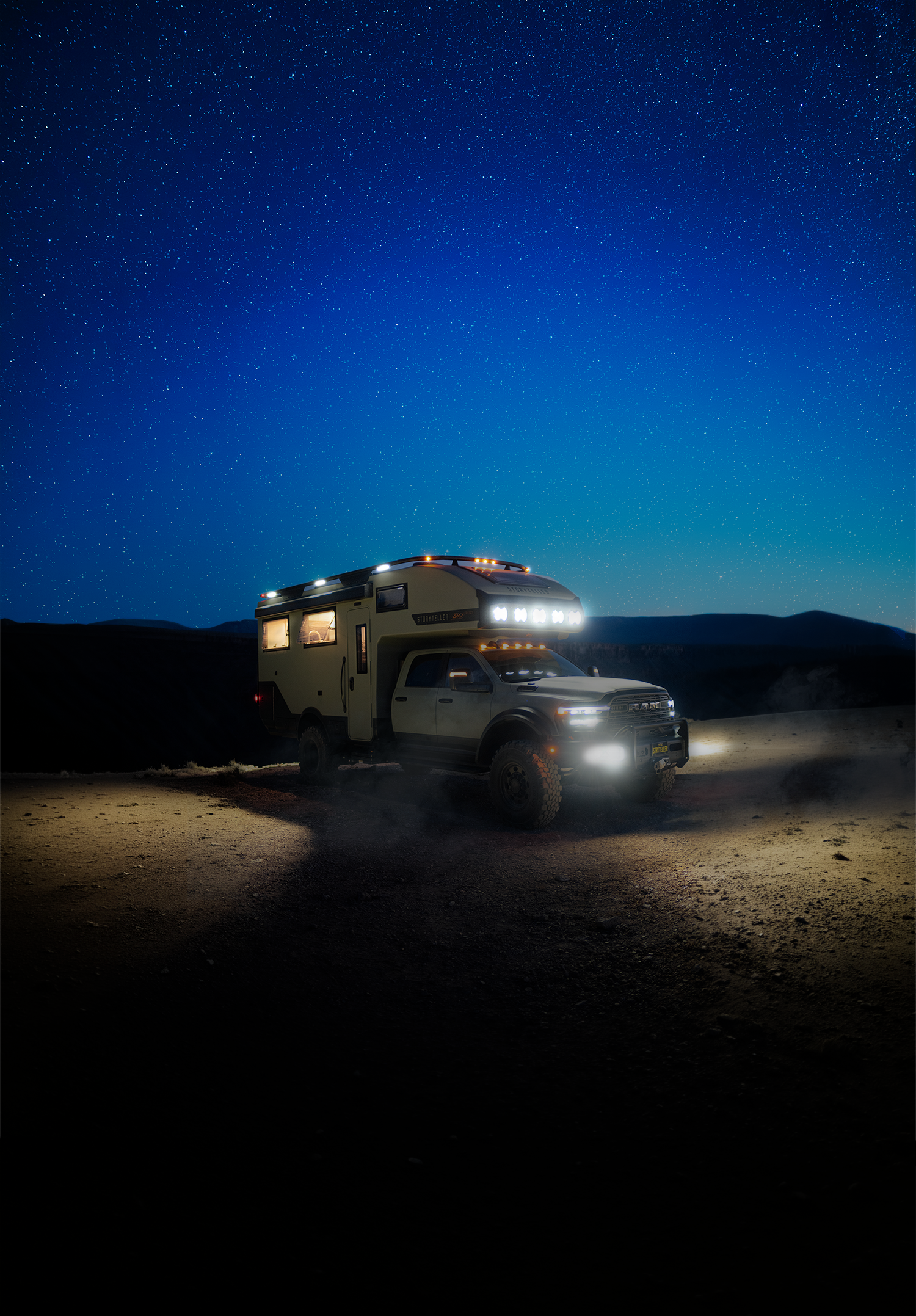

KC HiLiTES® 360° Lighting Package

Extreme off-roading requires an extreme 360-degree exterior lighting package. In addition to four high-powered bumper mounted LEDs, the HILT’s front light bar features five 8-inch KC HiLiTES® and eight 10-inch KC HiLiTES® perimeter light bars mounted around the exterior.

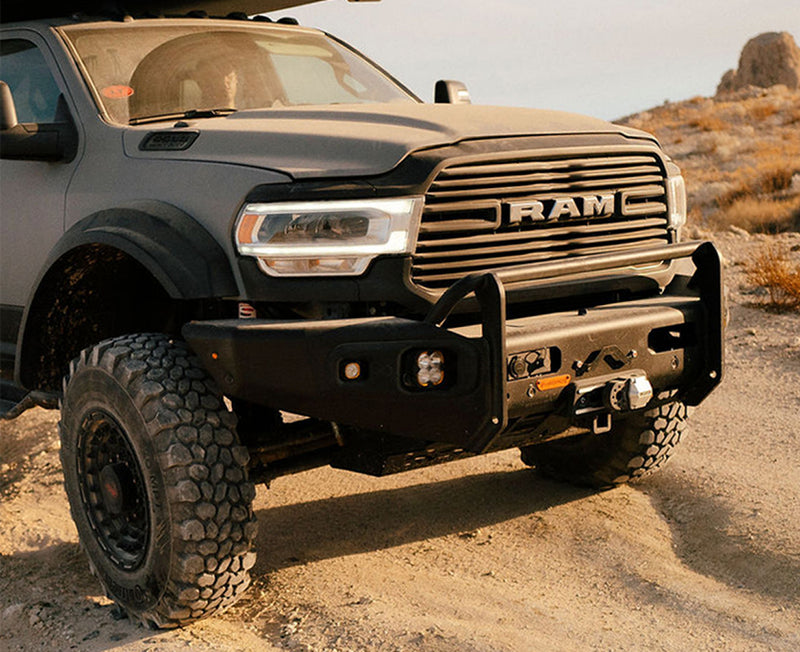

20,000lb Winch

Rugged Alloy Front Bumper with an integrated 20,000 pound winch recovery system so you can explore safely and recover as needed.

Technology

Energy System

The GXV HILT lets you say “goodbye” to charging cords and power hookups with a robust 16.8kWh M-Power™ System, two 3000-watt, heavy-duty, high-efficiency inverters and solar panels rated up to 1320 watts.³

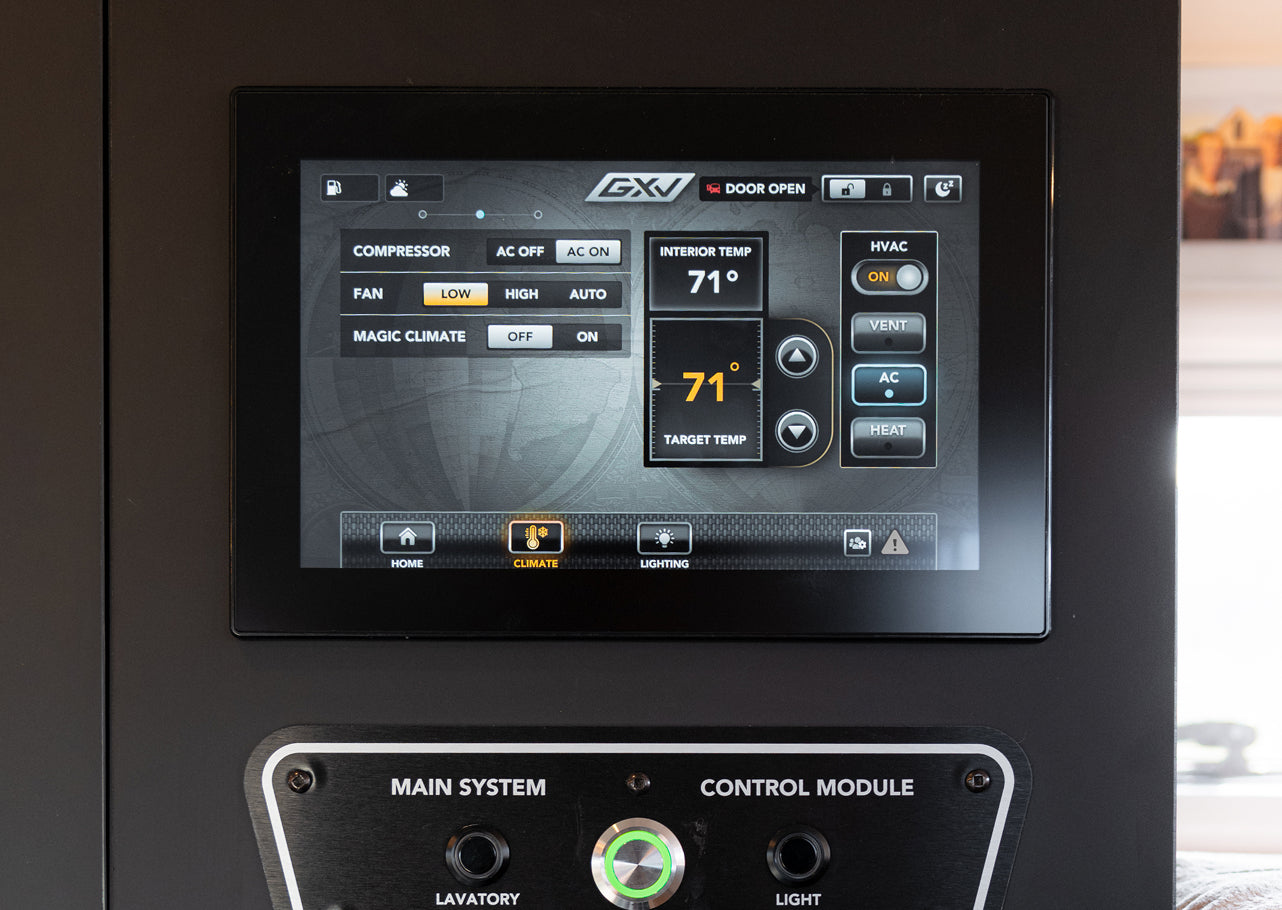

Mission Control System Makes it Easy

A Touchscreen Control System provides a user-friendly interface to manage your power system, water system, climate controls and lights.

Four-Season

Design

16.8kWh

Energy System

Two 3000W

High-Capacity Inverters

Rugged Yet
Refined

The HILT delivers a rugged exterior and a spa-like interior. The exterior is made of innovative vacuum-infused resin composite with carbon fiber and Kevlar® reinforcements which couple perfectly with our closed-cell acoustic/thermal insulation for quiet, climate-controlled comfort.

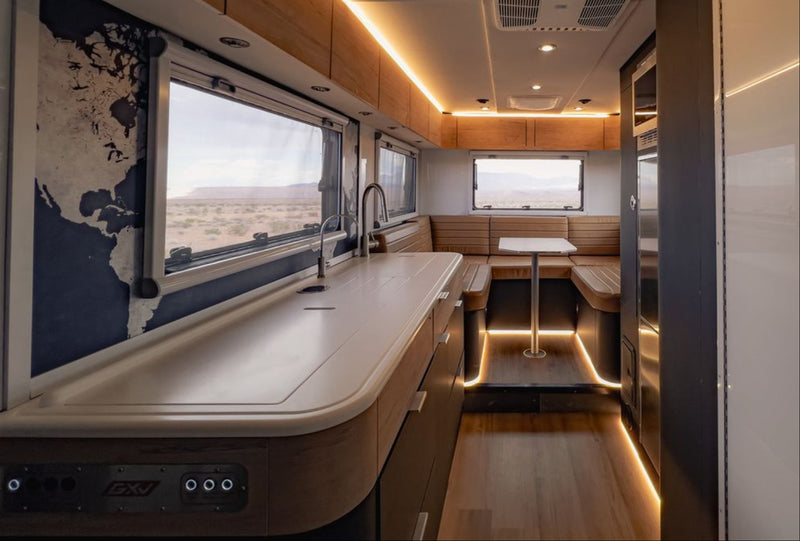

Spacious and Serene

The HILT is an incredibly spacious home-on-wheels. Standing height throughout the interior measures at 6’7” and the HILT Full Bath measures at 6’5”. Upper cabinets provide 12.25 cubic feet of storage alongside 6.8 cubic feet of closet space.

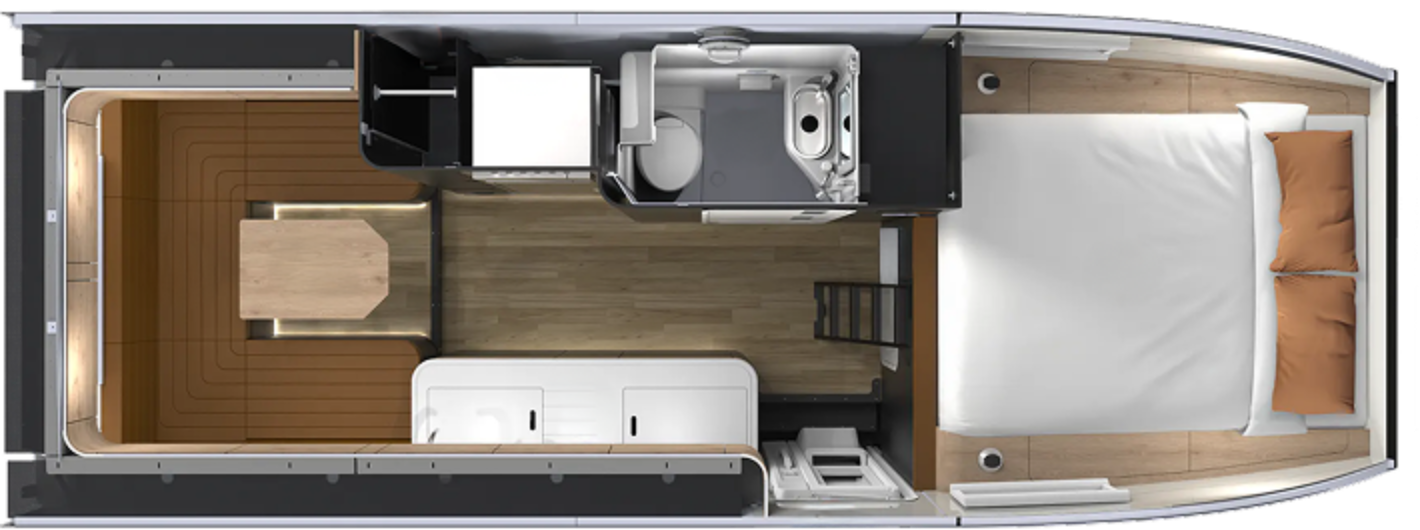

GXV HILT FLOOR PLAN HIGHLIGHTS

Enjoy the ease of thoughtful, streamlined, intuitive design that allows you to comfortably and confidently pursue life's grand adventures.

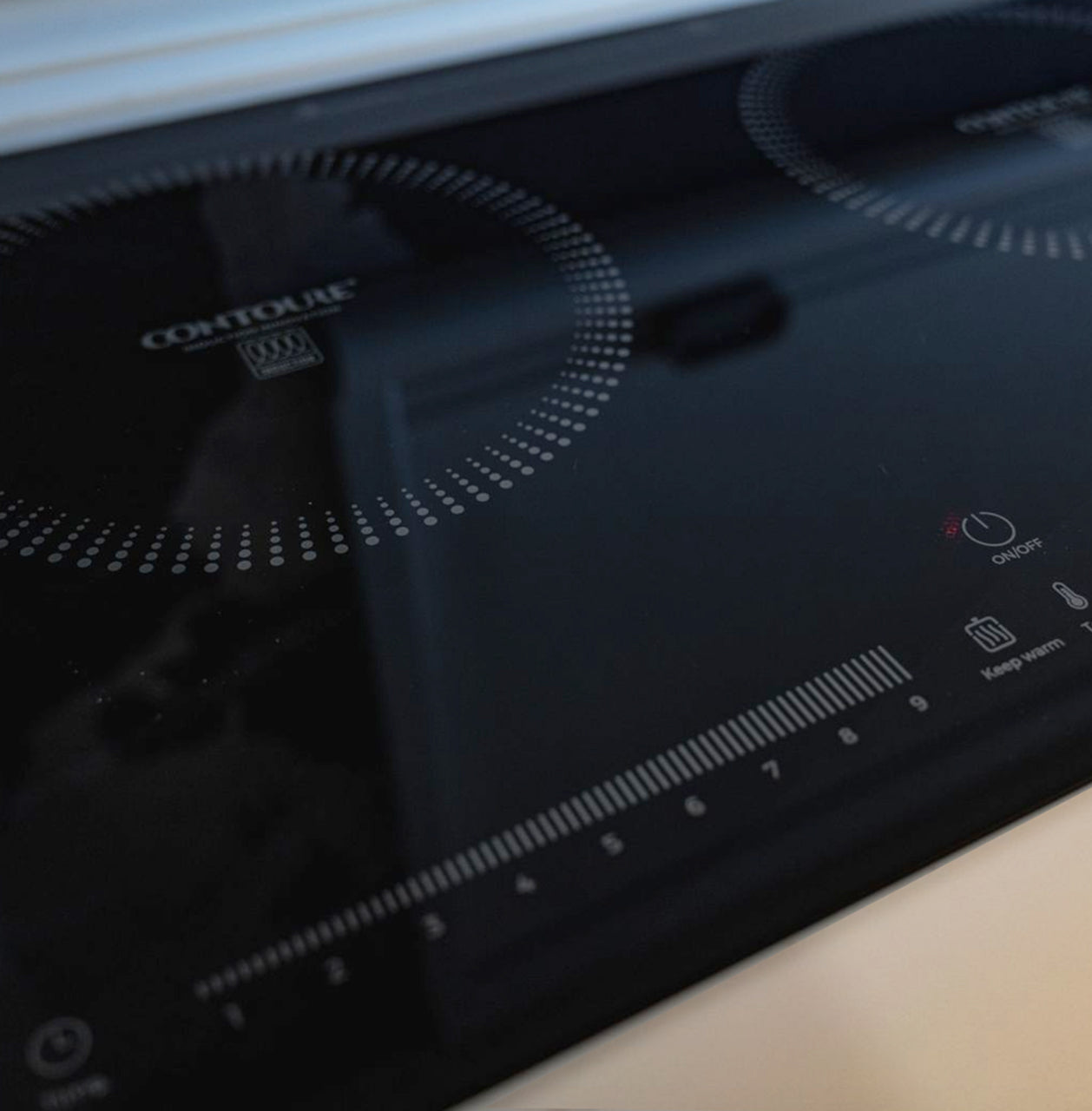

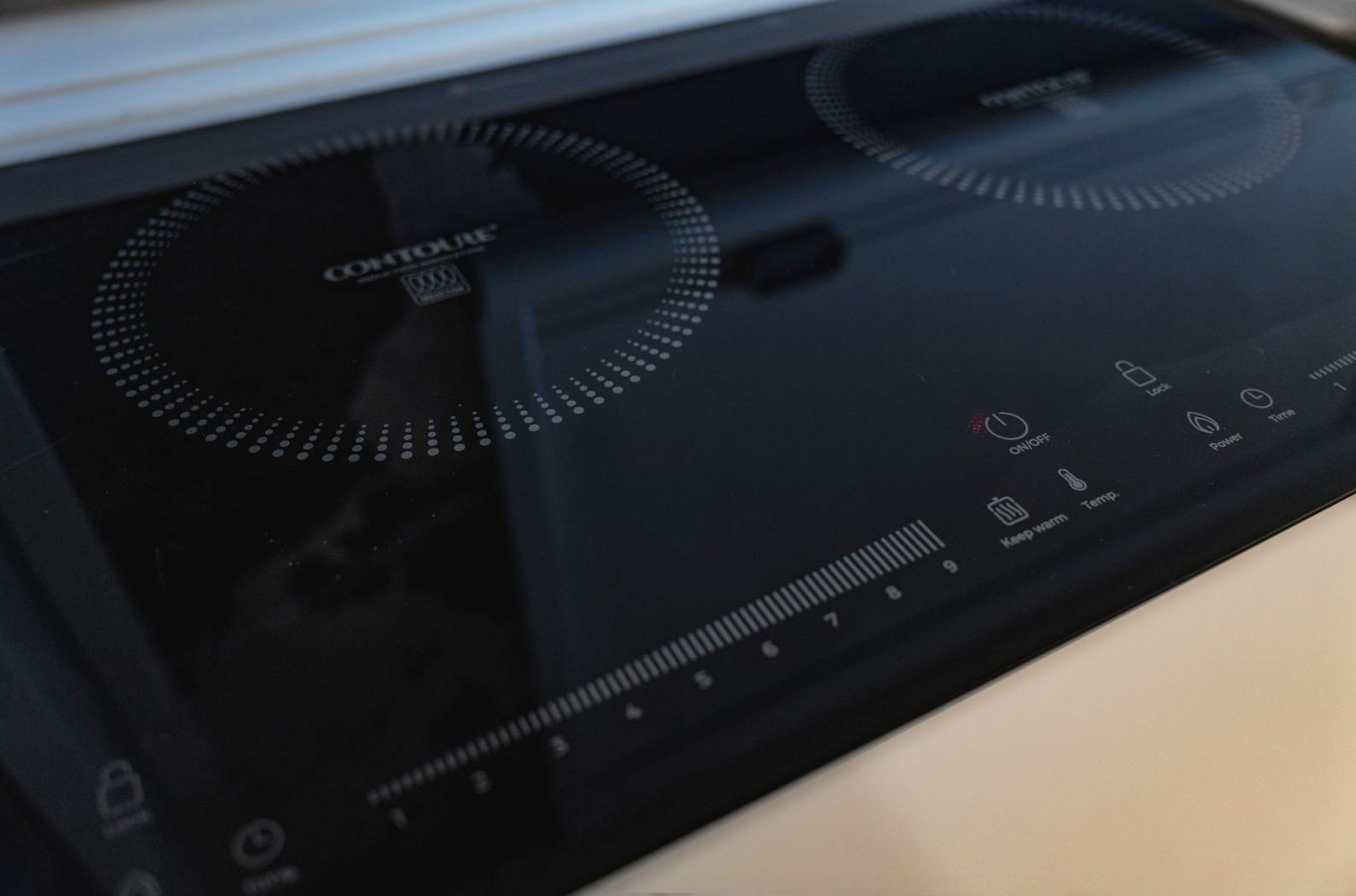

With a stainless steel convection oven, microwave, and air fryer, plus a 1800-watt dual burner induction cooktop, you can bring all the joys of home cooking with you on your off-road adventure.

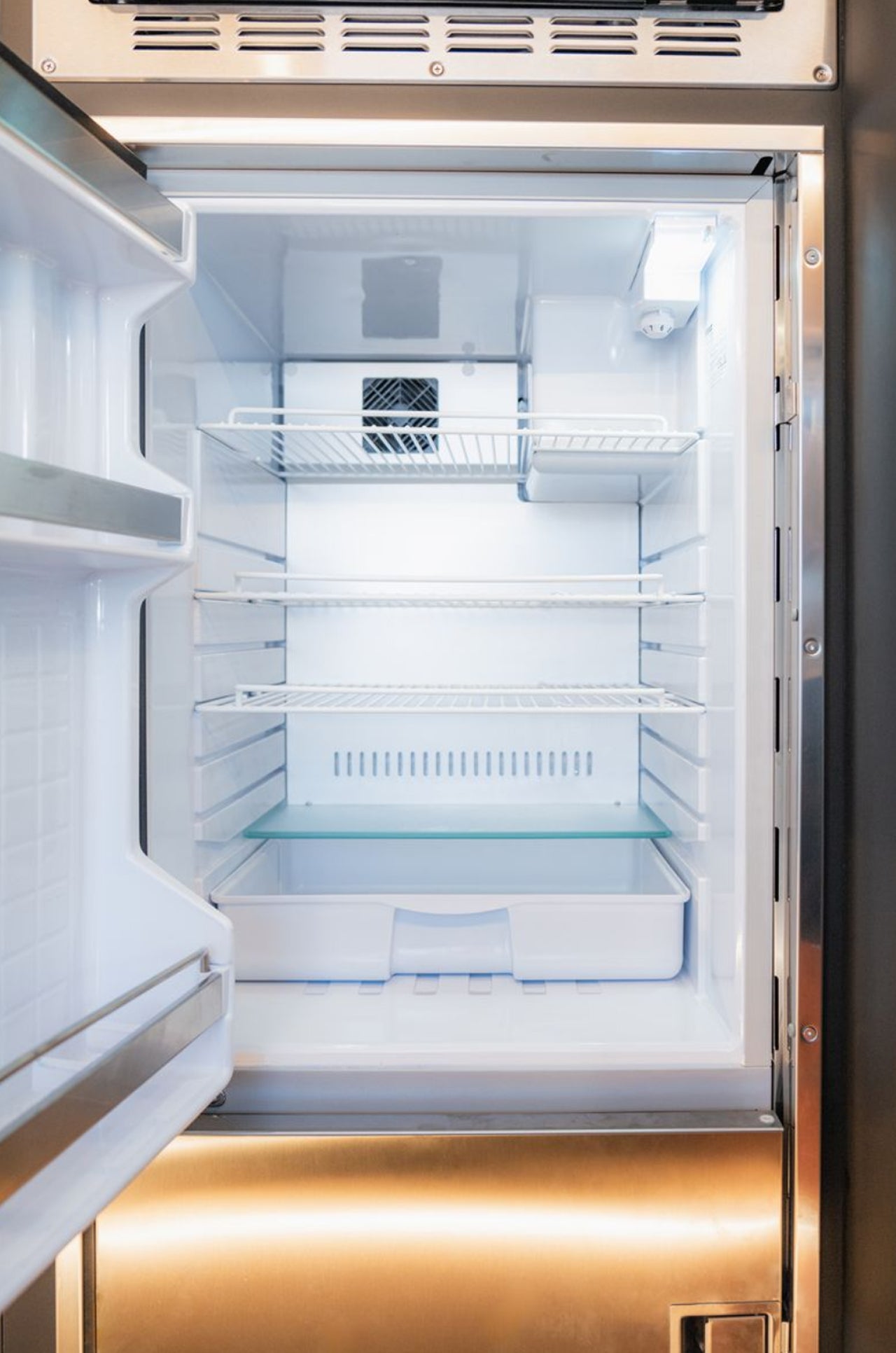

Your quiet, stainless steel fridge and freezer has 6.9 cubic feet of interior volume, perfect for going off-grid for a while without stopping in town to resupply. The countertop has rounded corners and a large sink with a cover. In addition to having a faucet with hot and cold controls, we’ve also integrated a Guzzle H2O® water purification system so you can have fresh drinking water without installing any extra filters.

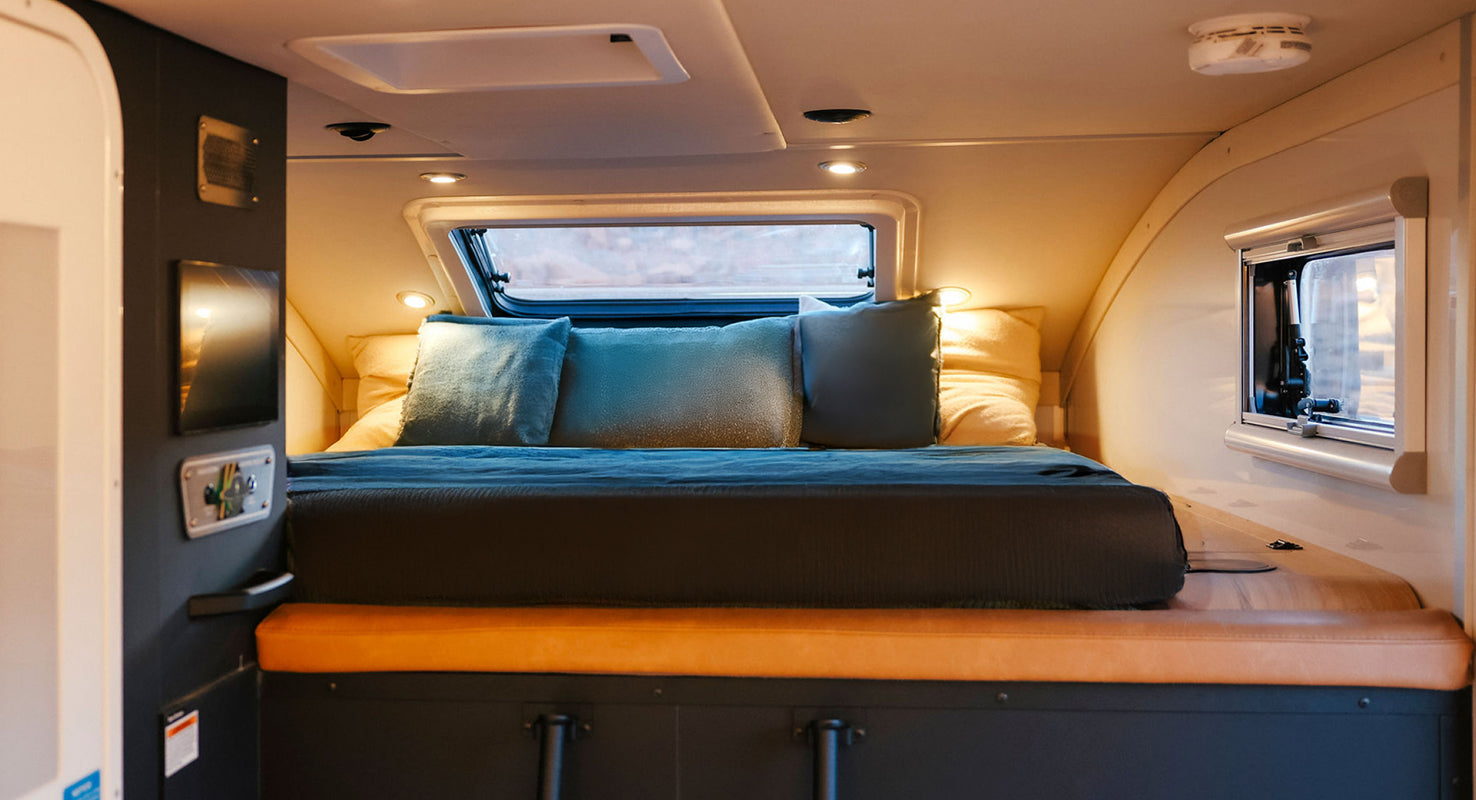

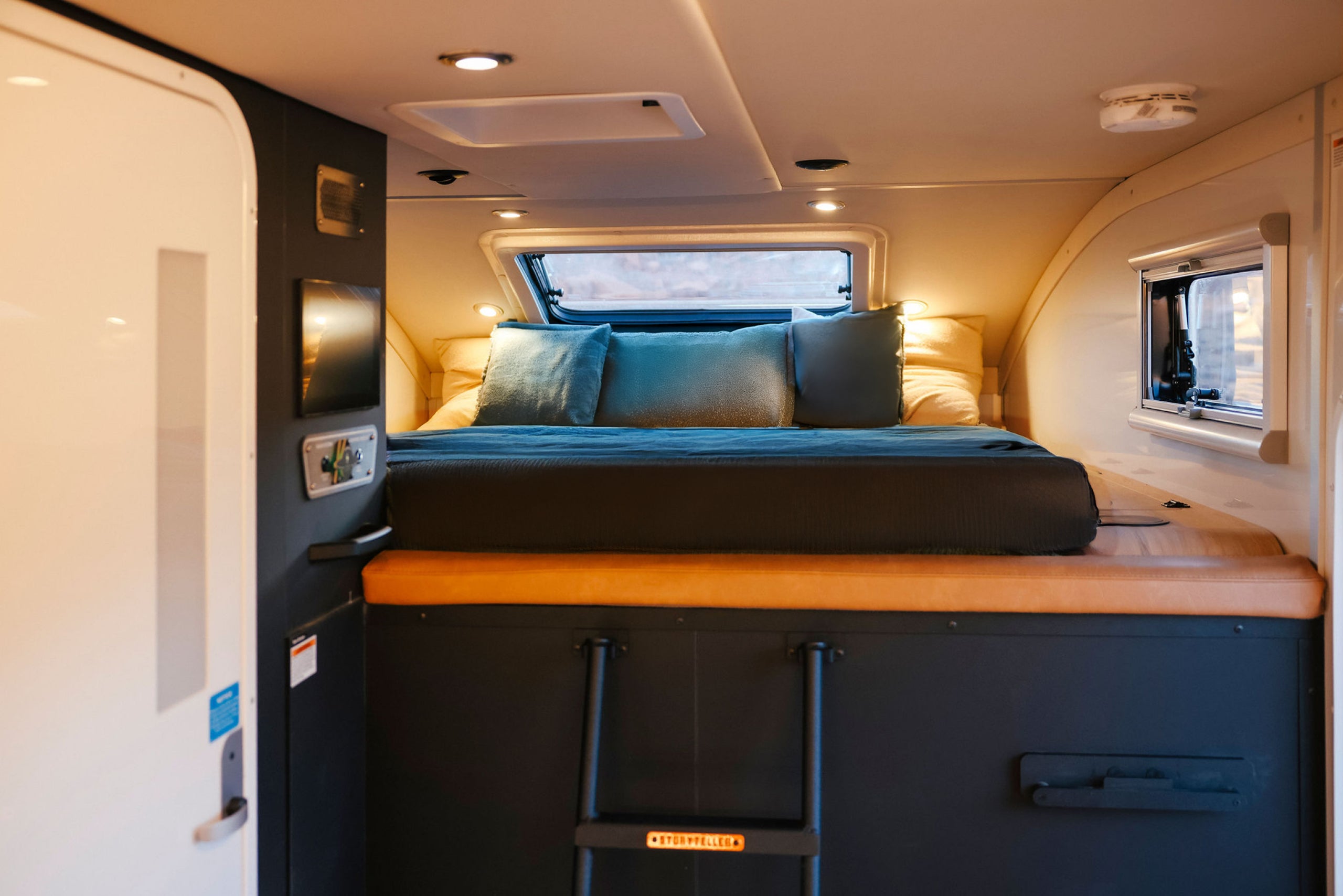

Complete with Two RV Queen-Sized Beds, the HILT Delivers Ultimate Comfort

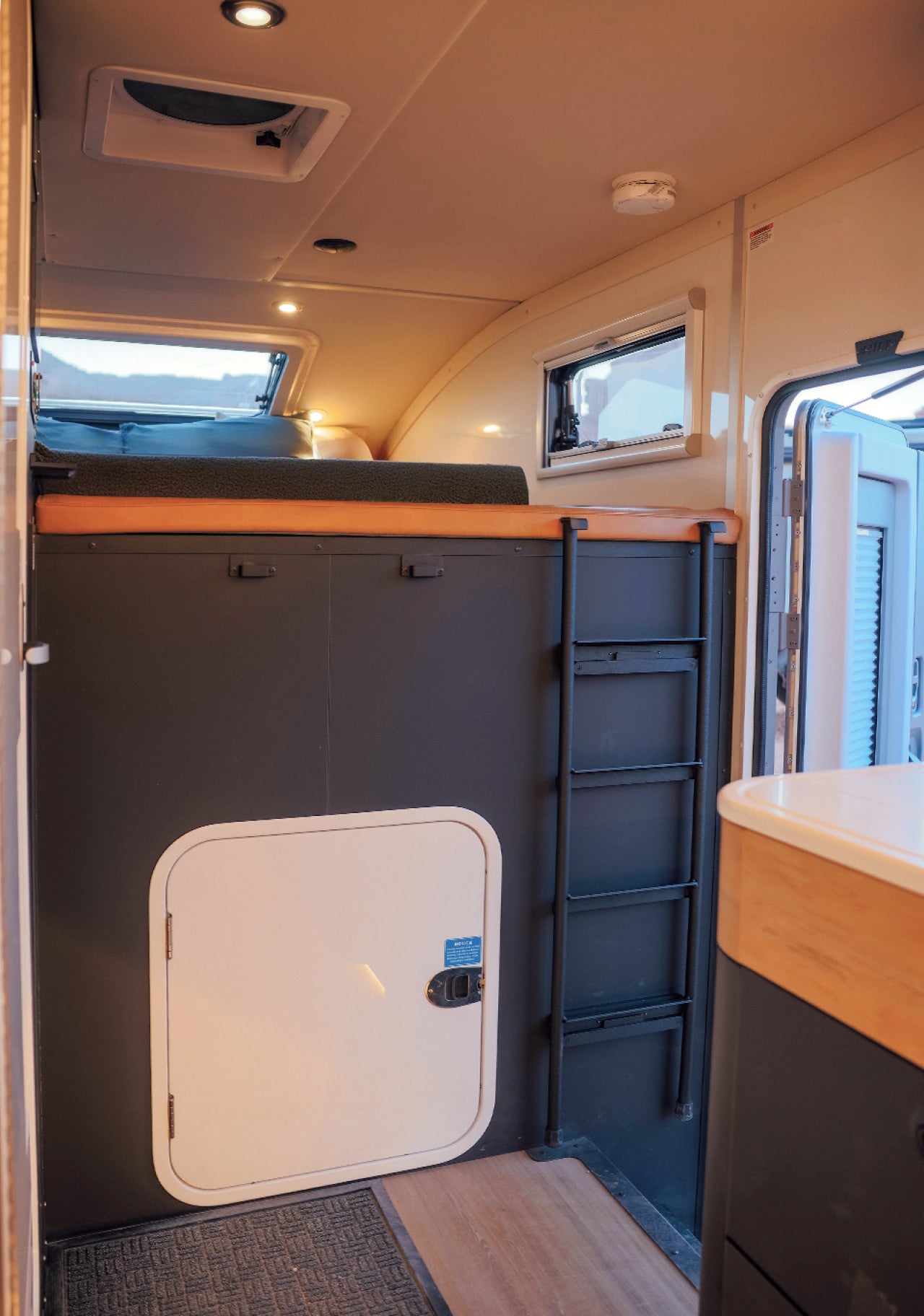

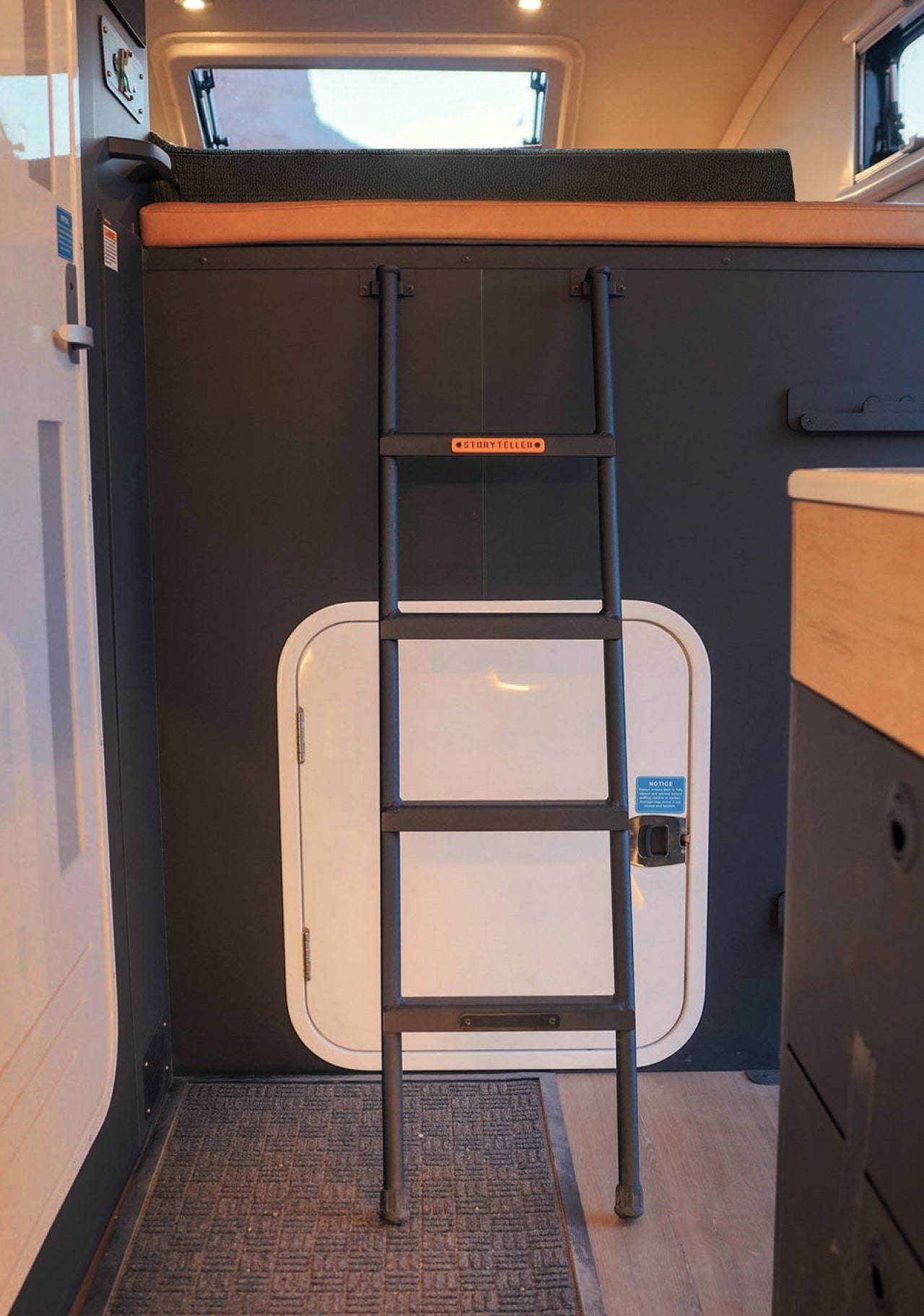

The loft RV Queen bed features a sky-facing window, allowing you to sleep under the stars. Additionally, the loft RV Queen includes 3.7 cubic feet of total bin storage, 12-volt USBs, 110-volt outlets and wireless charging stations next to the mattress.

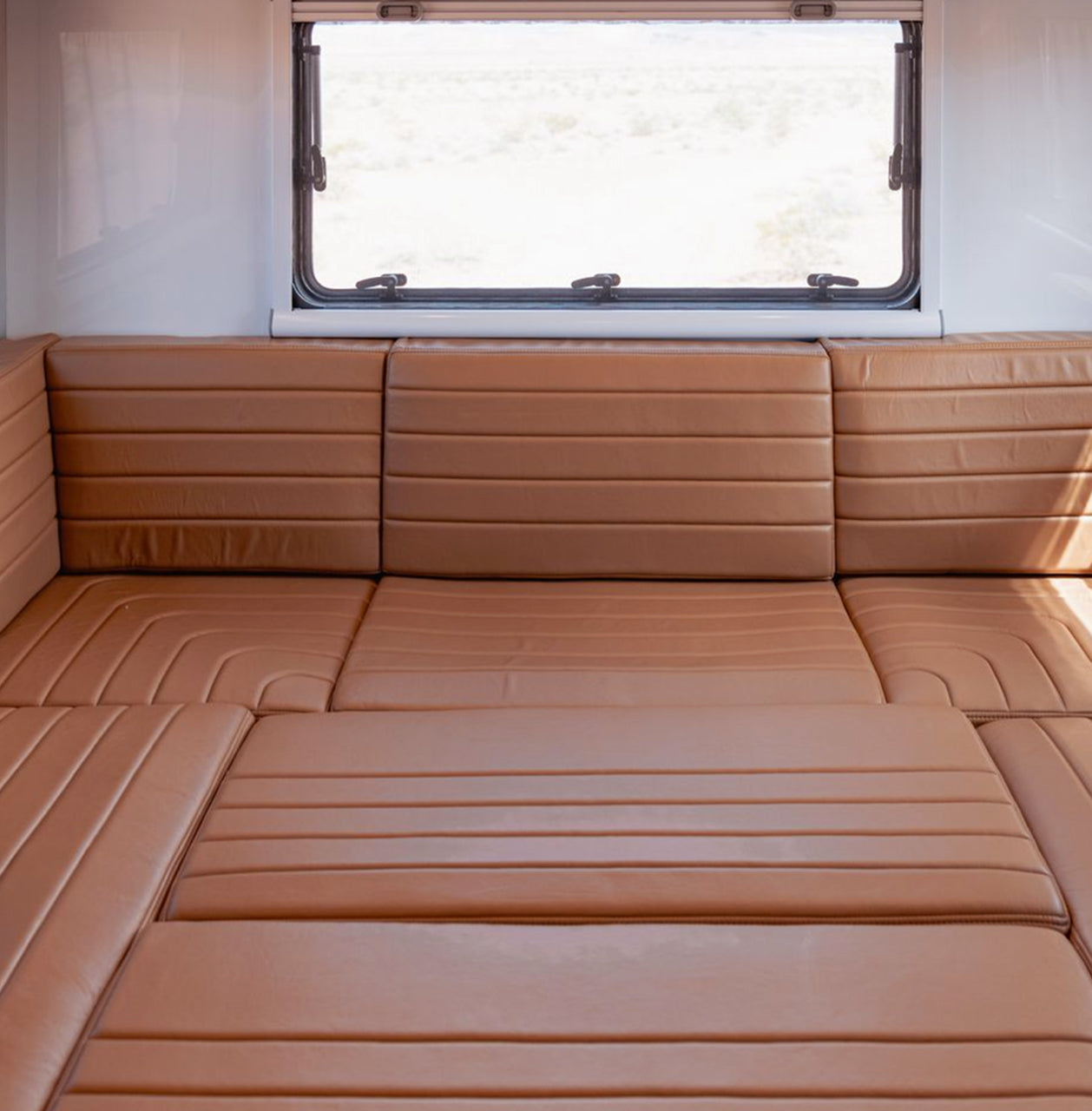

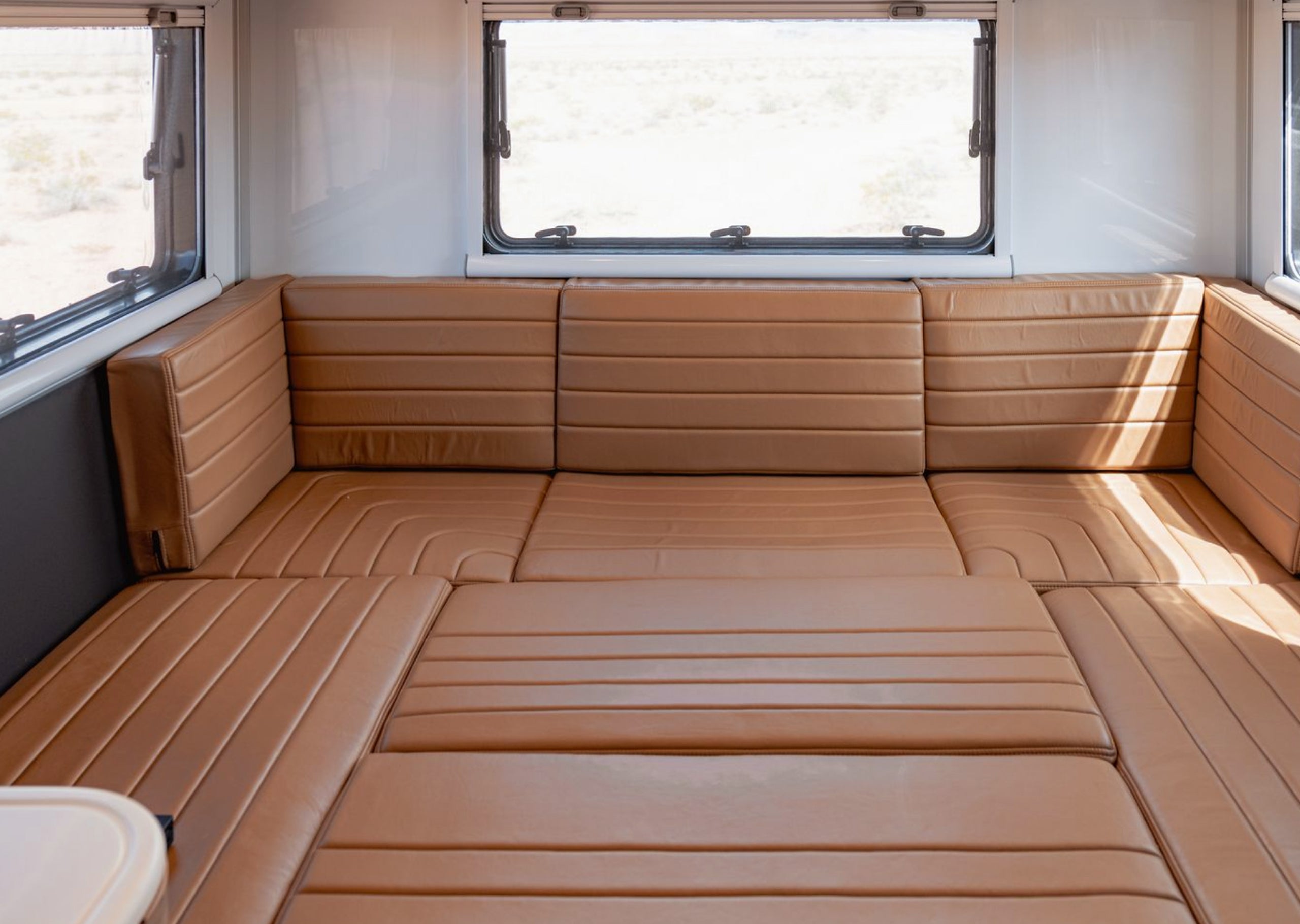

The HILT Dinette easily converts to a second RV Queen-sized bed.

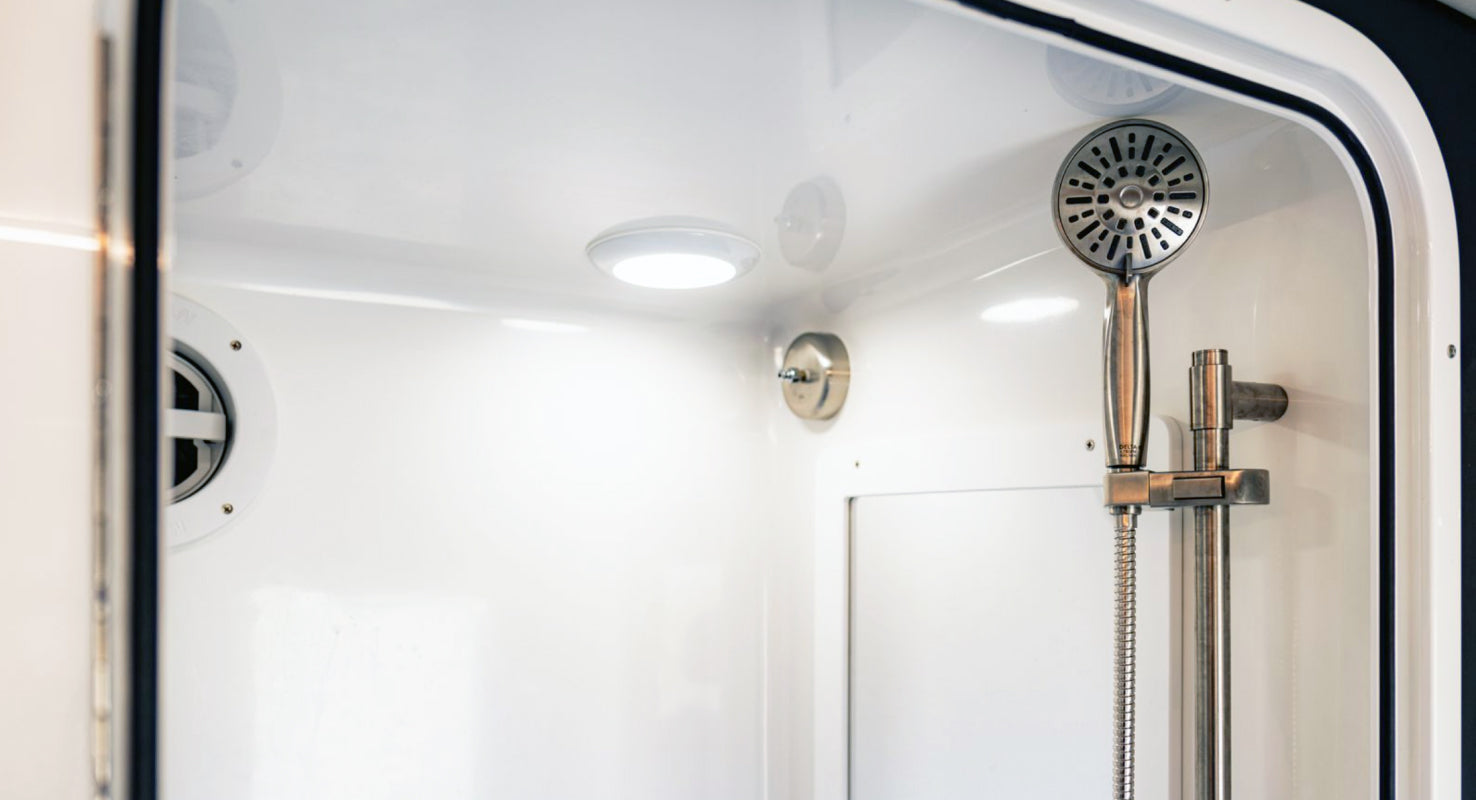

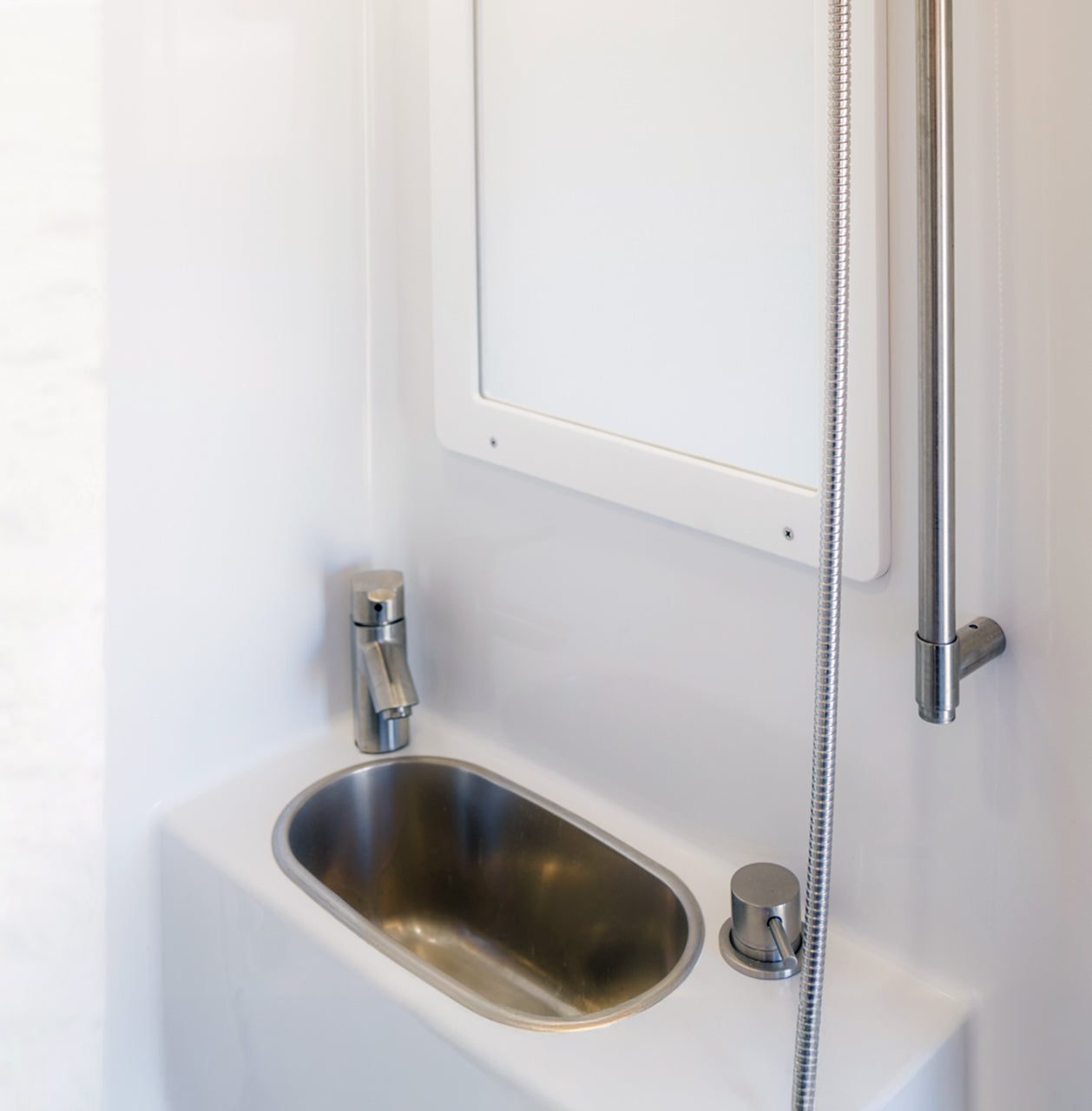

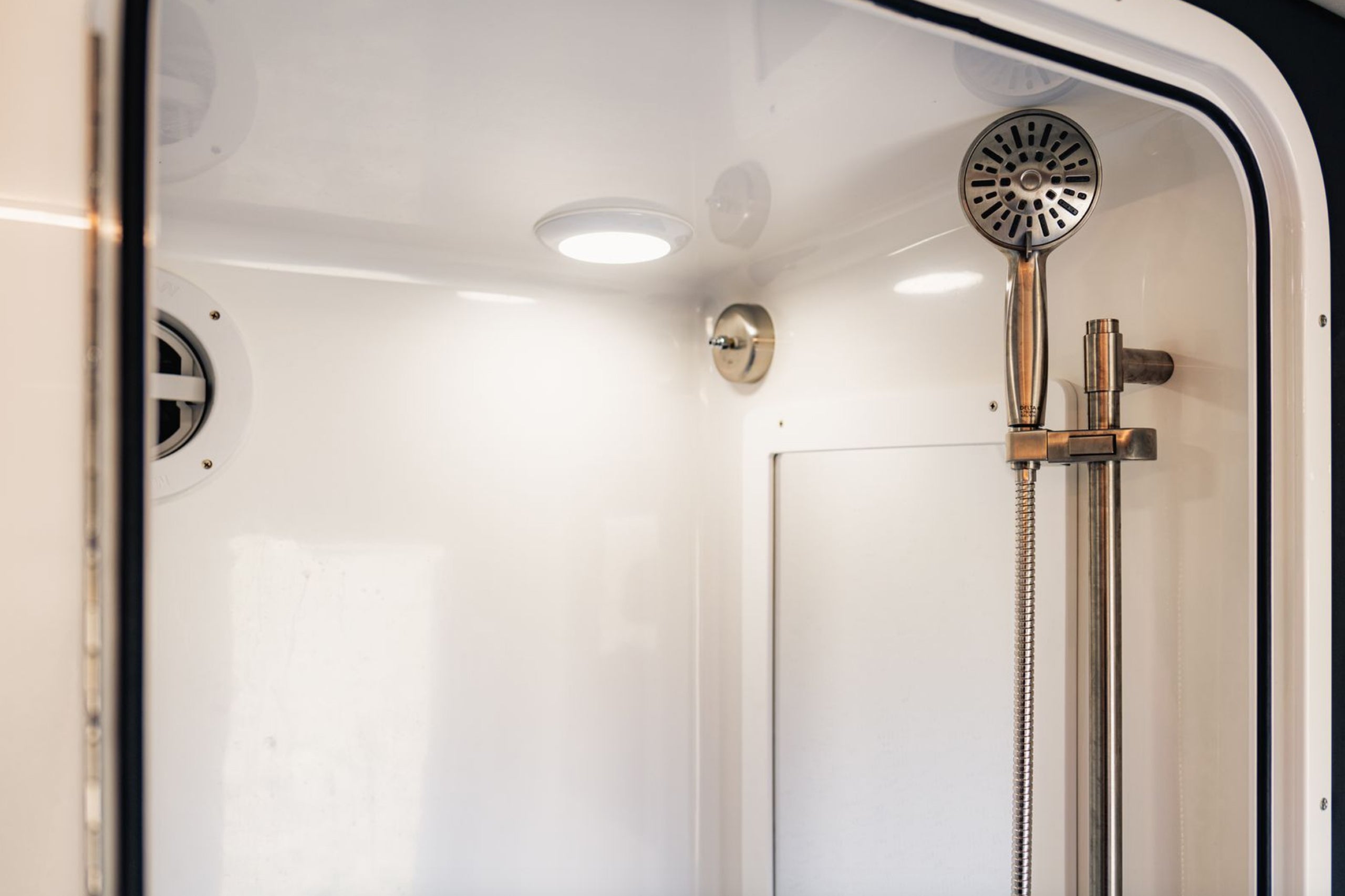

The HILT Full Bath Delivers a Spacious 6’5” Standing Height Shower, Integrated Sink and Flushable Cassette Toilet.

With a whopping 120 gallons of freshwater on-board, you can splurge on multiple long, hot showers during your off-grid trip.

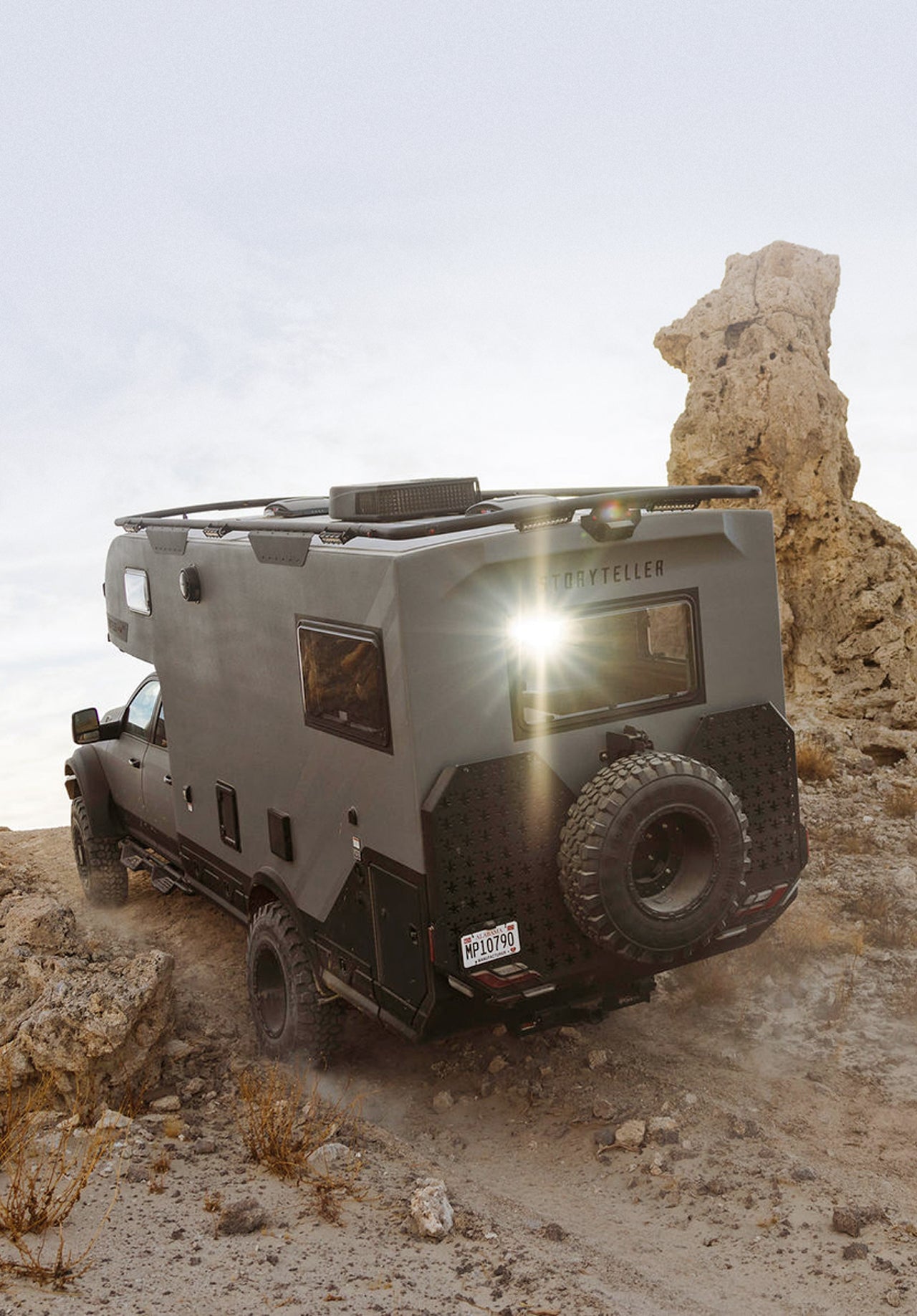

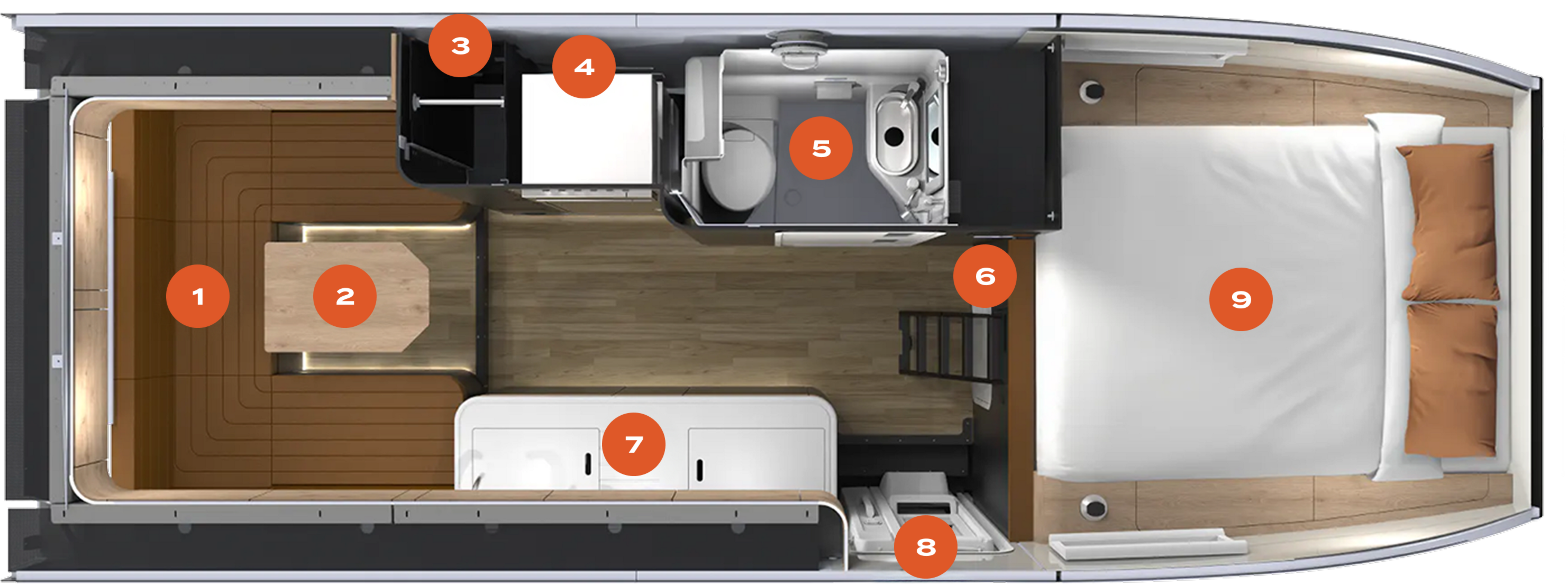

GXV HILT RUGGED EXTERIOR

+ LUXURIOUS INTERIOR

1

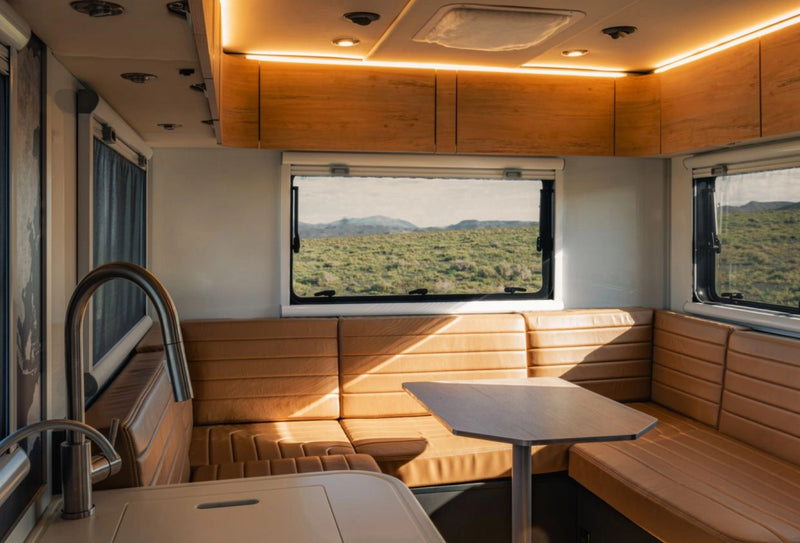

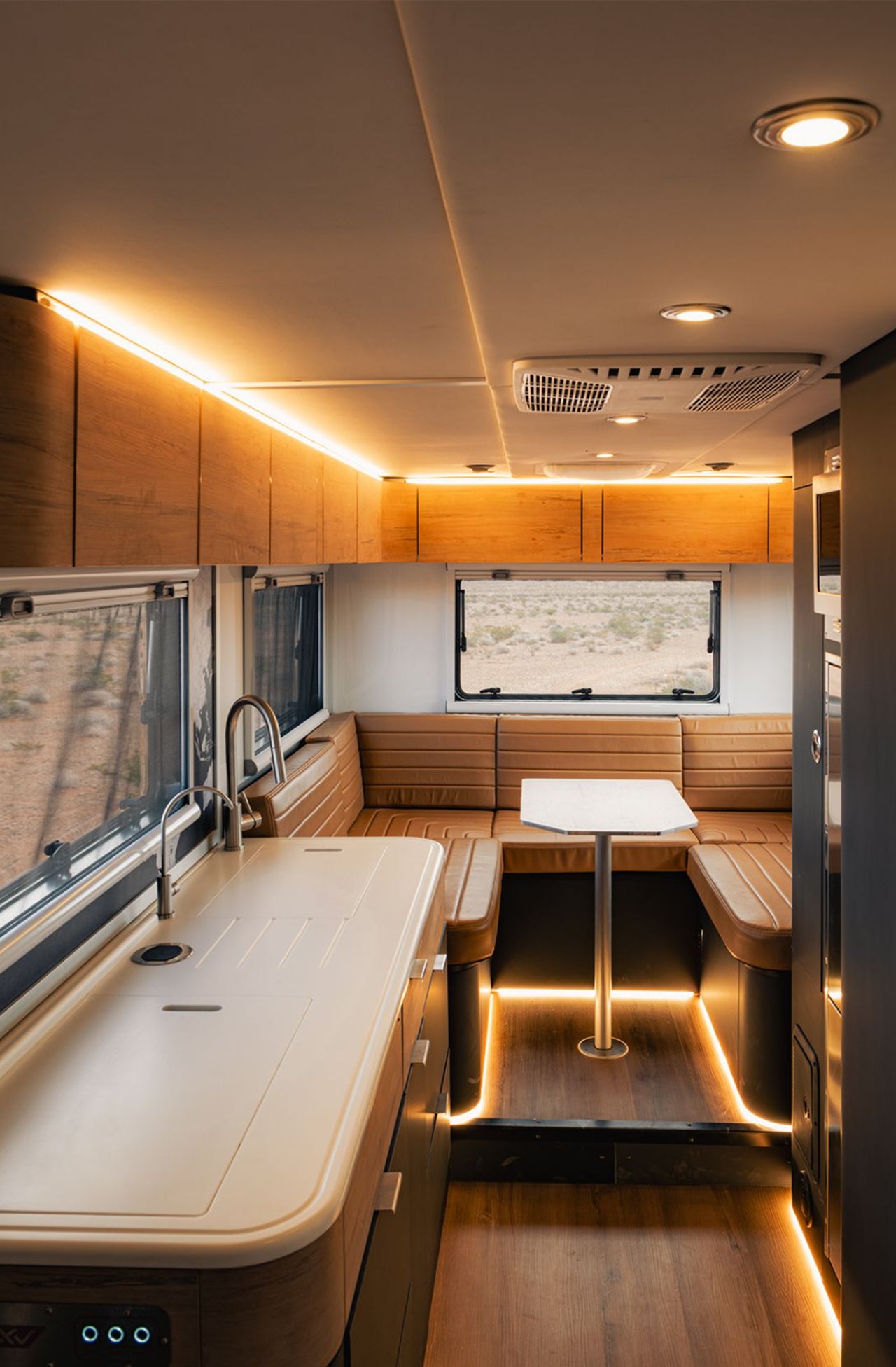

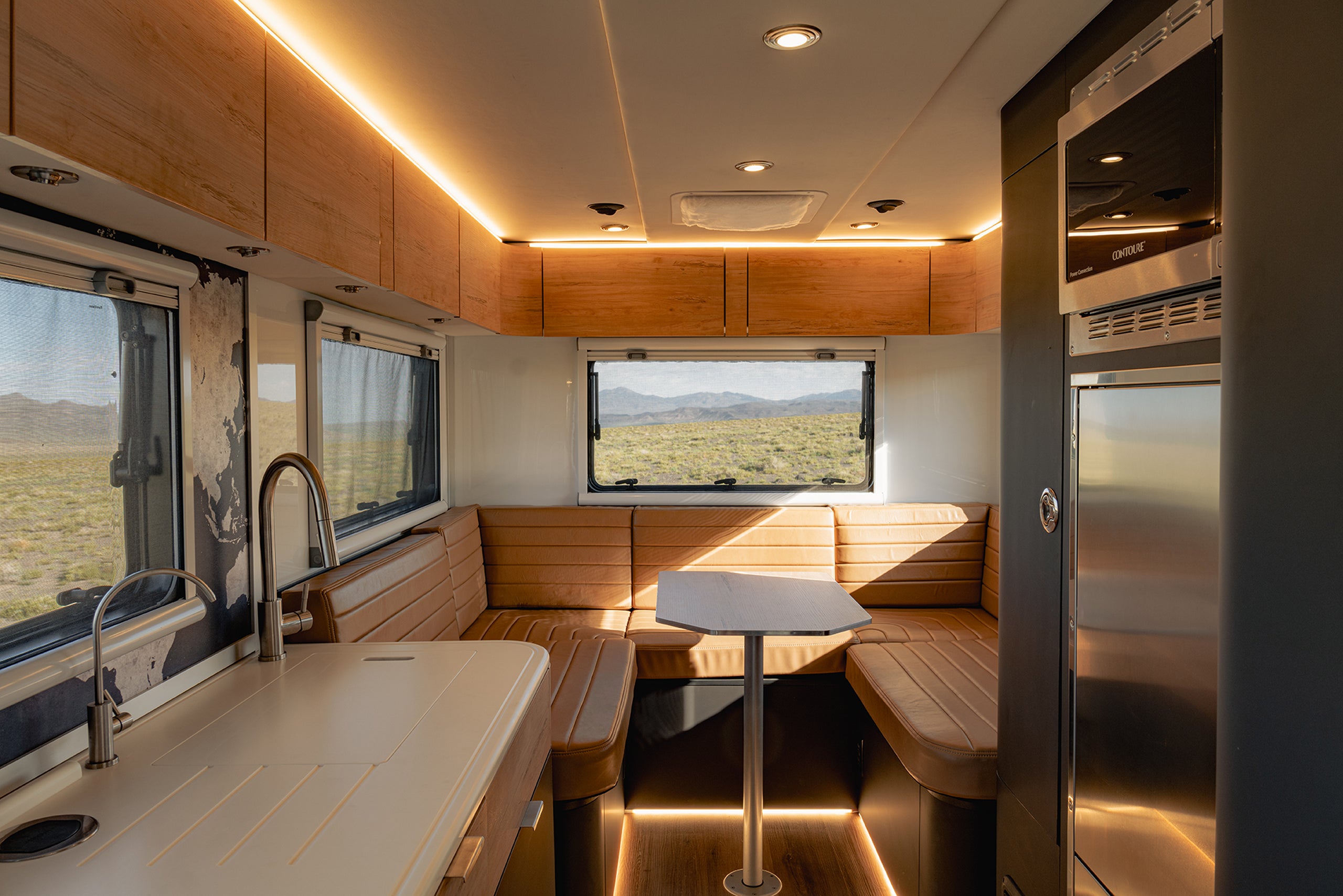

Dinette Seating Area

70" W x 56" L x 14" H (with cushions)

Convertible RV Queen Size Bed

2

Dinette Table

20" W x 30" D

3

Closet Interior

15" W x 22" D x 51" H

4

Stainless Steel Refrigerator/Freezer

Refrigerator Volume: 4.6 ft³
Freezer Volume: 2.3 ft³

5

Wet Bath

28" W x 42" L x 78" H

6

Pass-Through Door

24" W x 27" H

7

Galley

Countertop: 24" D x 70" L
Sink: 27" W x 16" D x 7" H
Dual Induction Cooktop: 24" W x 16” D

8

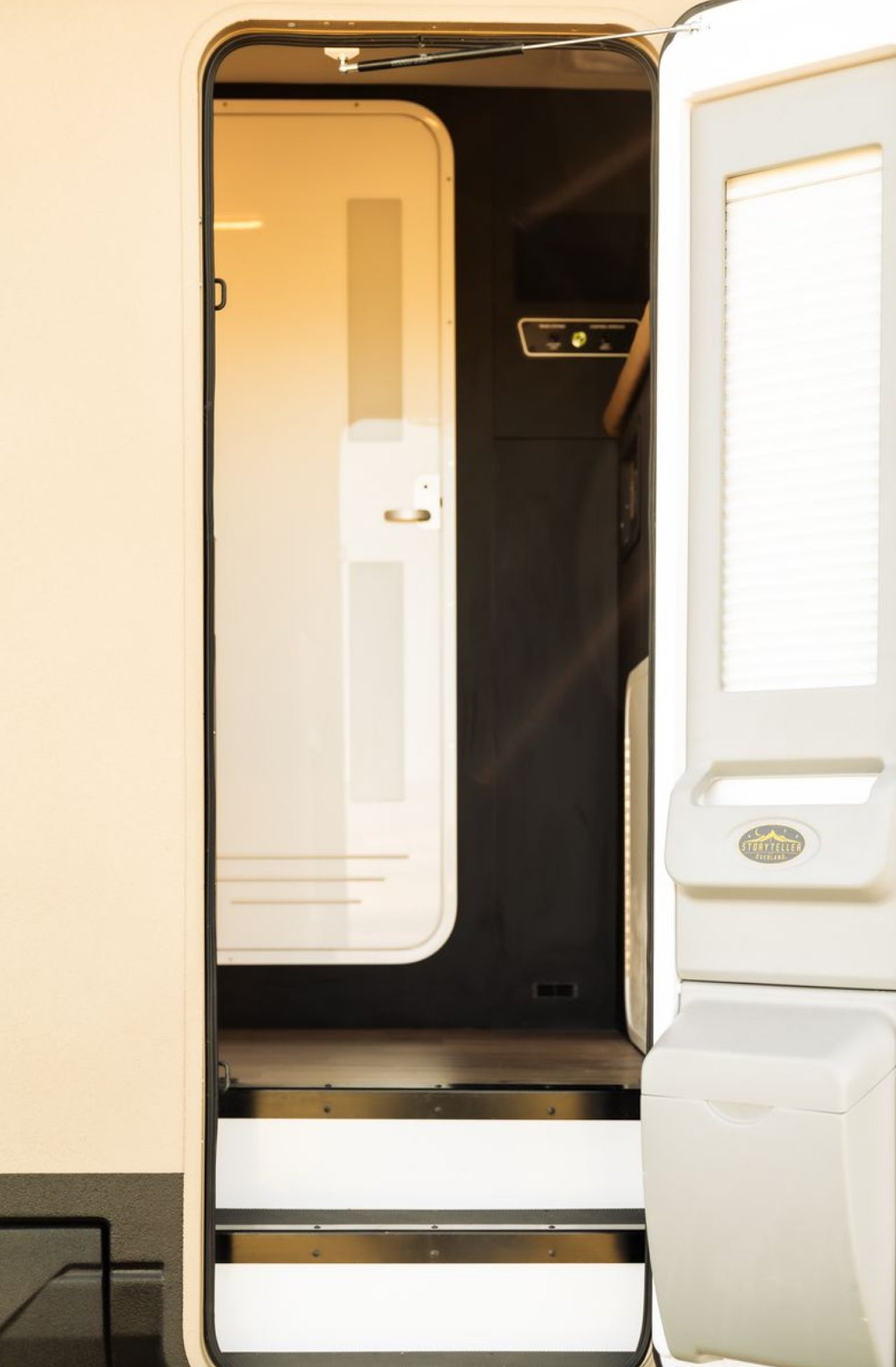

Entry Door

26" W x 78" H

9

Loft: RV Queen Size Bed

Headspace: 26” (tallest) 10” (lowest)
Storage Compartments (x2): 8" W x 63" L x 7" H

All measurements are estimated and can vary
Capacities

  • Fuel: 74 gal

  • Toilet Capacity: 4.75 gal

  • Solar: 1320W Rated Solar Panels³

  • Fresh Water: 120gal

  • Power System: 16.8kWh

  • Seating: Four Seatbelts

  • Grey Water: 40 gal

  • High-Capacity Inverters: 3000W (x2)

  • Sleeping: Two Beds

{

Looking

for a Class B
Adventure Van?

Explore our 144” MODEs

Explore

SEEKING

SOMETHING EVEN
MORE EPIC?

Explore the GXV EPIC —
the Ultimate Expedition Vehicle

Explore

Be a part of our
community

Explore

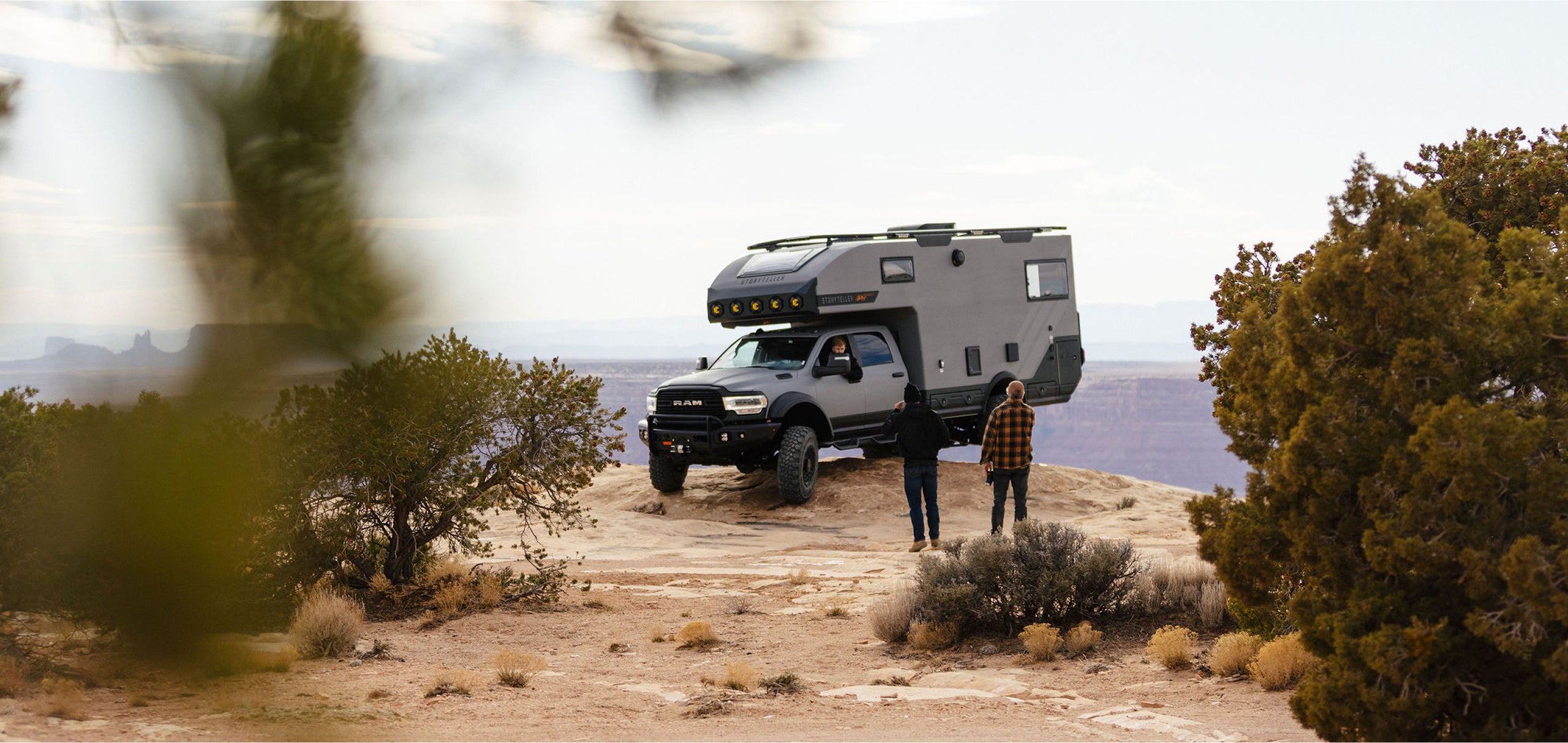

An Exterior Set Up for
Overland Adventures

Specs

GXV Hilt

4 Seatbelts
4 Seatbelts
2 Beds
2 Beds
Full Bathroom
Full Bathroom
$499,722¹ | $3,359/mo²
I’m interested Window sticker

¹ See-Through, No Haggle pricing. Some images may show rigs with optional accessories.
² Monthly payment estimates do not include taxes, title, or registration fees and are based on a 20% down, 20-year RV loan at 7.99% APR. The payment estimates are provided for informational purposes only and may reflect assumptions that may not apply to you or loan terms for which you may not qualify. Please contact your local dealer for an estimate that is more accurately tailored to your circumstances. Storyteller Overland, LLC and its affiliates do not make any representation that any particular terms or financing are available.
³ Solar efficiency varies.

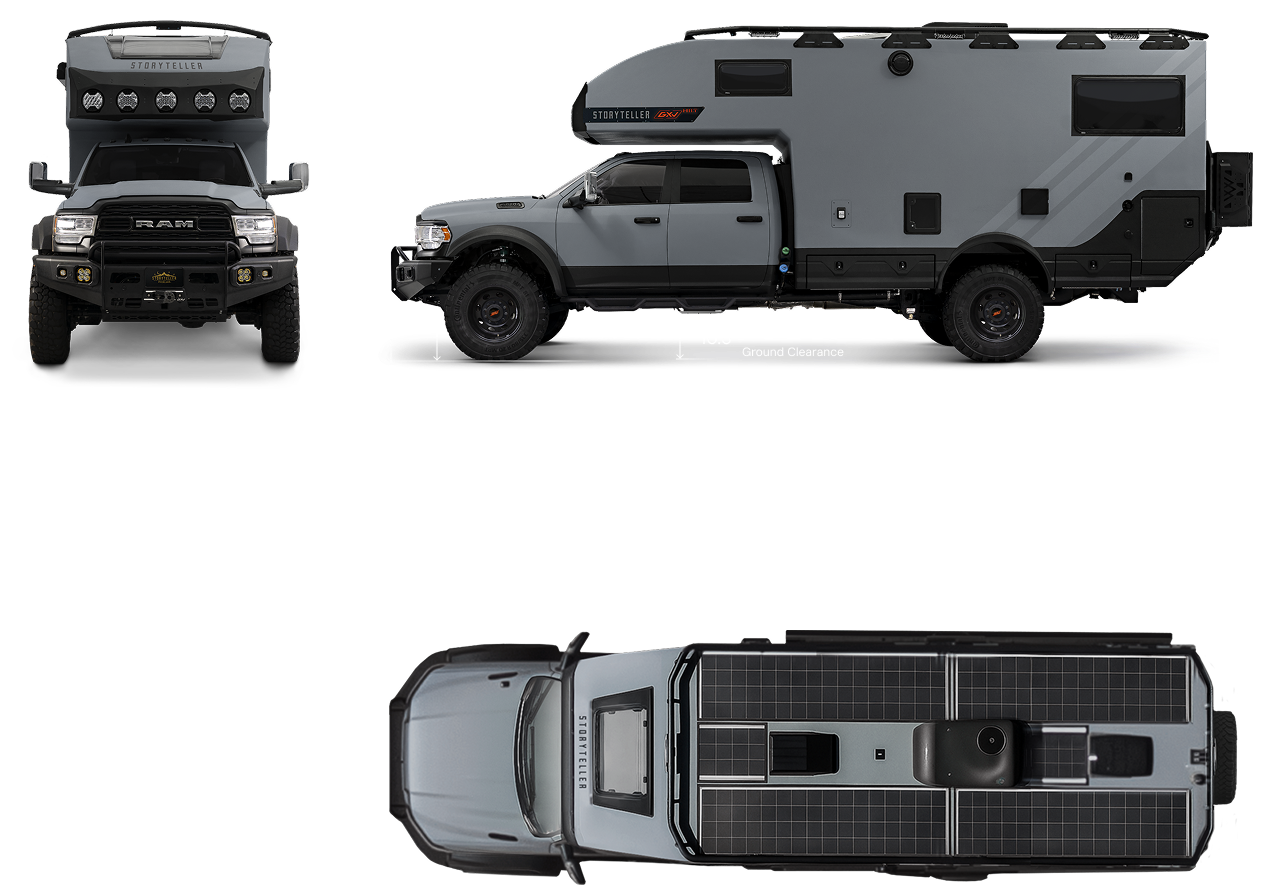

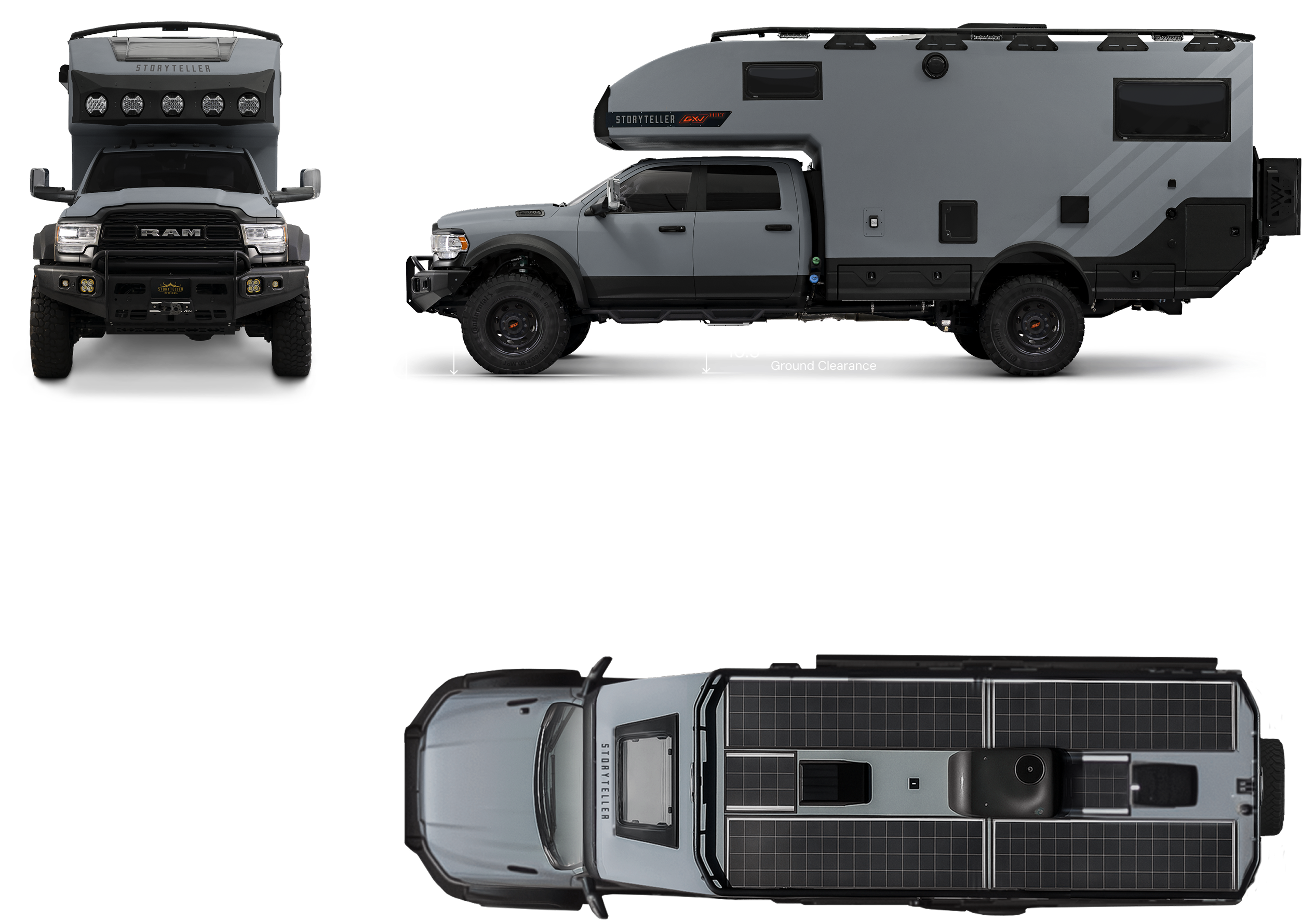

  • Weights & Measurements
    • HILT Max Exterior Length – 29’
    • HILT Max Exterior Height – 12’7”
    • HILT Body Width – 8’ (Mirror to Mirror 8’7")
    • Awning Width – 13’
    • Awning Extension – 8’
    • HILT Max Interior Height – 6’7”
    • HILT Ground Clearance – 10.5”
    • Freshwater Tank Capacity – 120 gal
    • Grey Tank Capacity –  40 gal
    • Water Heater Capacity – Continuous
    • Cassette Toilet Capacity – 4.75 gal
    • HILT Wheelbase – 197”
    • HILT GVWR – 19,500 lbs
    • RAM® Fuel Capacity – 74 gal
  • RAM® Chassis
    • 5500 Crew Cab
    • 6.7L Cummins® Turbo Diesel
    • 800 lb-ft Torque/360 HP
    • Cold Weather Group: Engine Block Heater
    • Electrical Accessory Group: Voltage-Monitoring Auto-Idle-Up System
    • Transfer Case Skid Plate Shield
    • 8-Speed HD Transmission
    • LED Headlamps/Tail Lamps

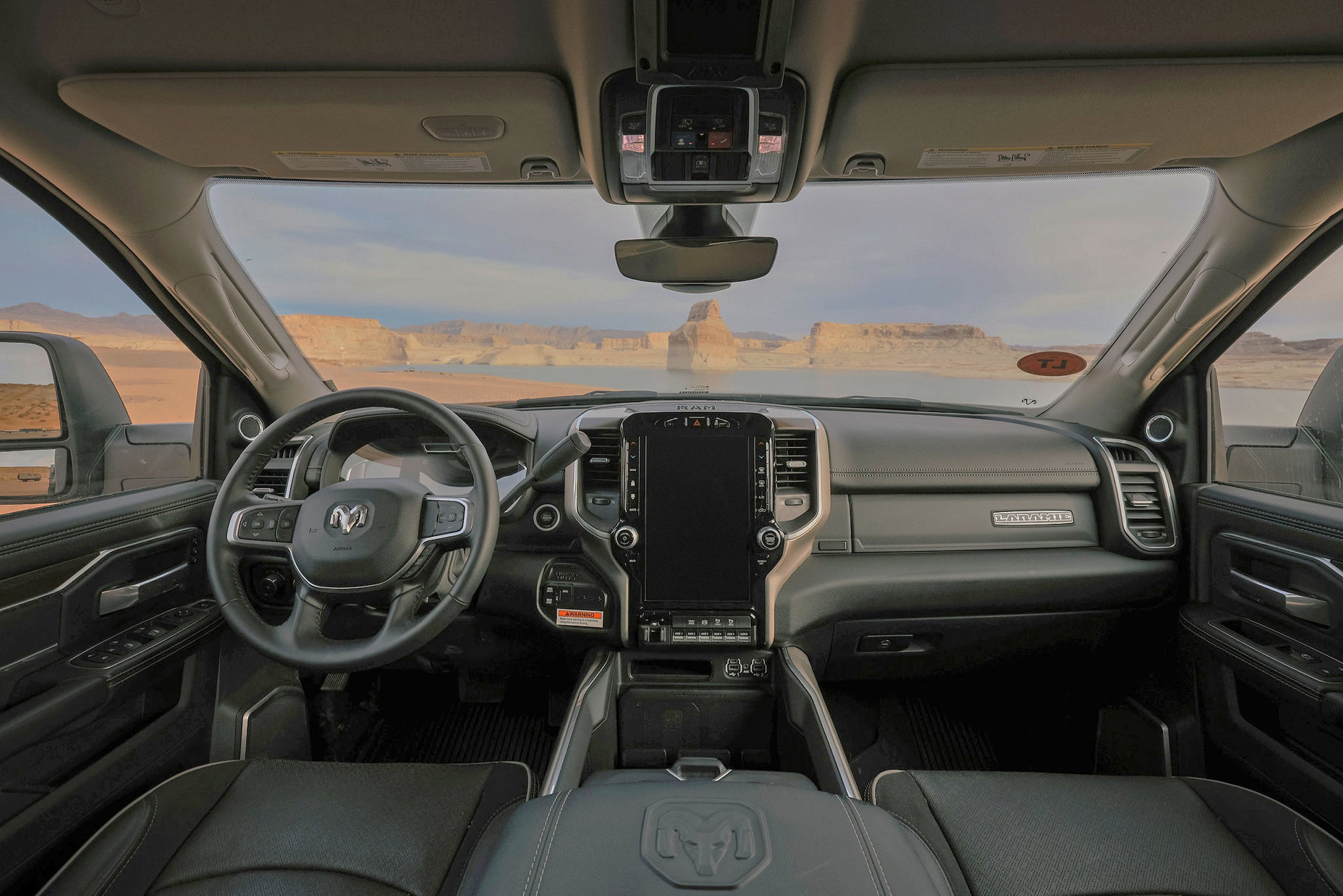

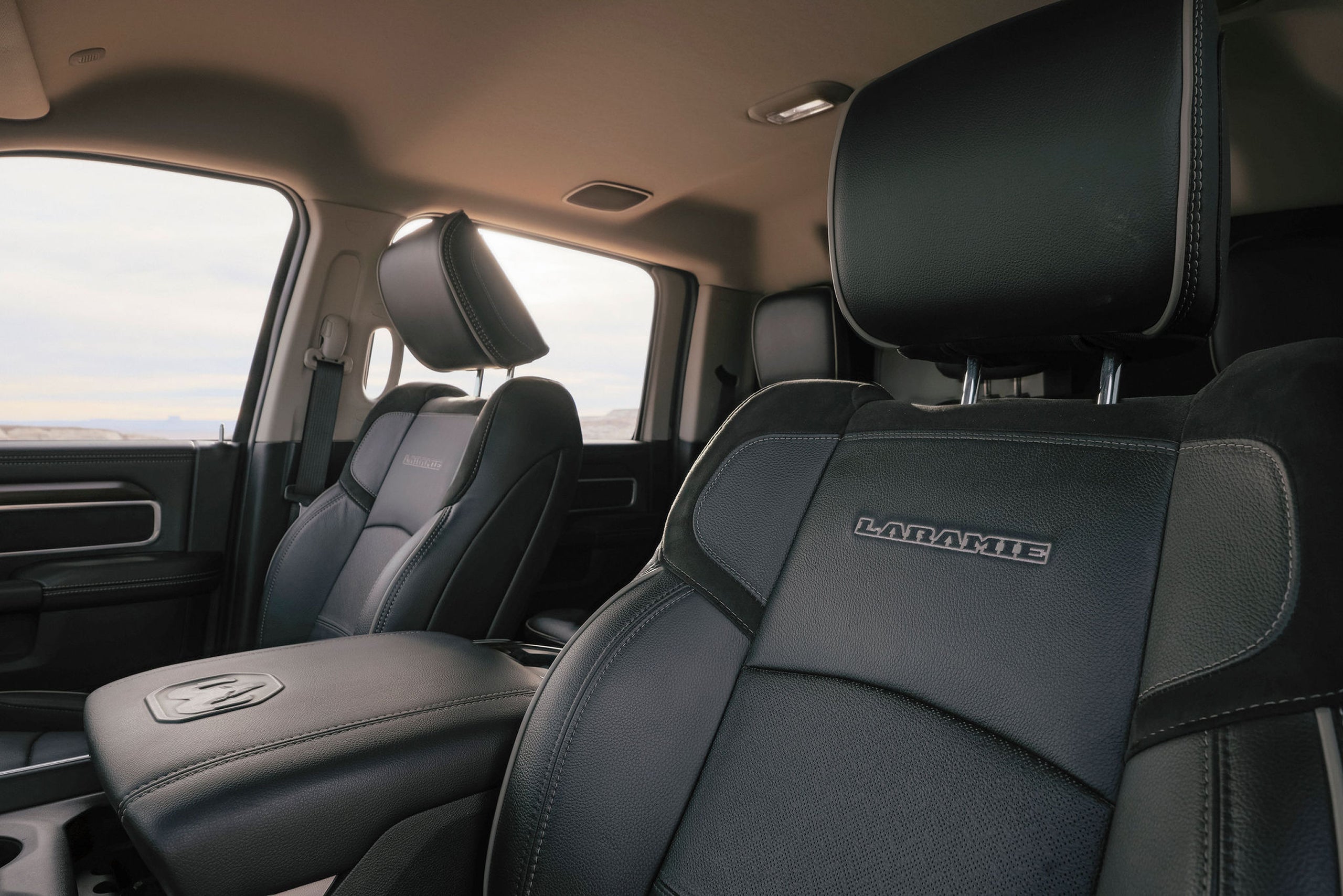

    • Laramie™ Level 2 Equipment Group:

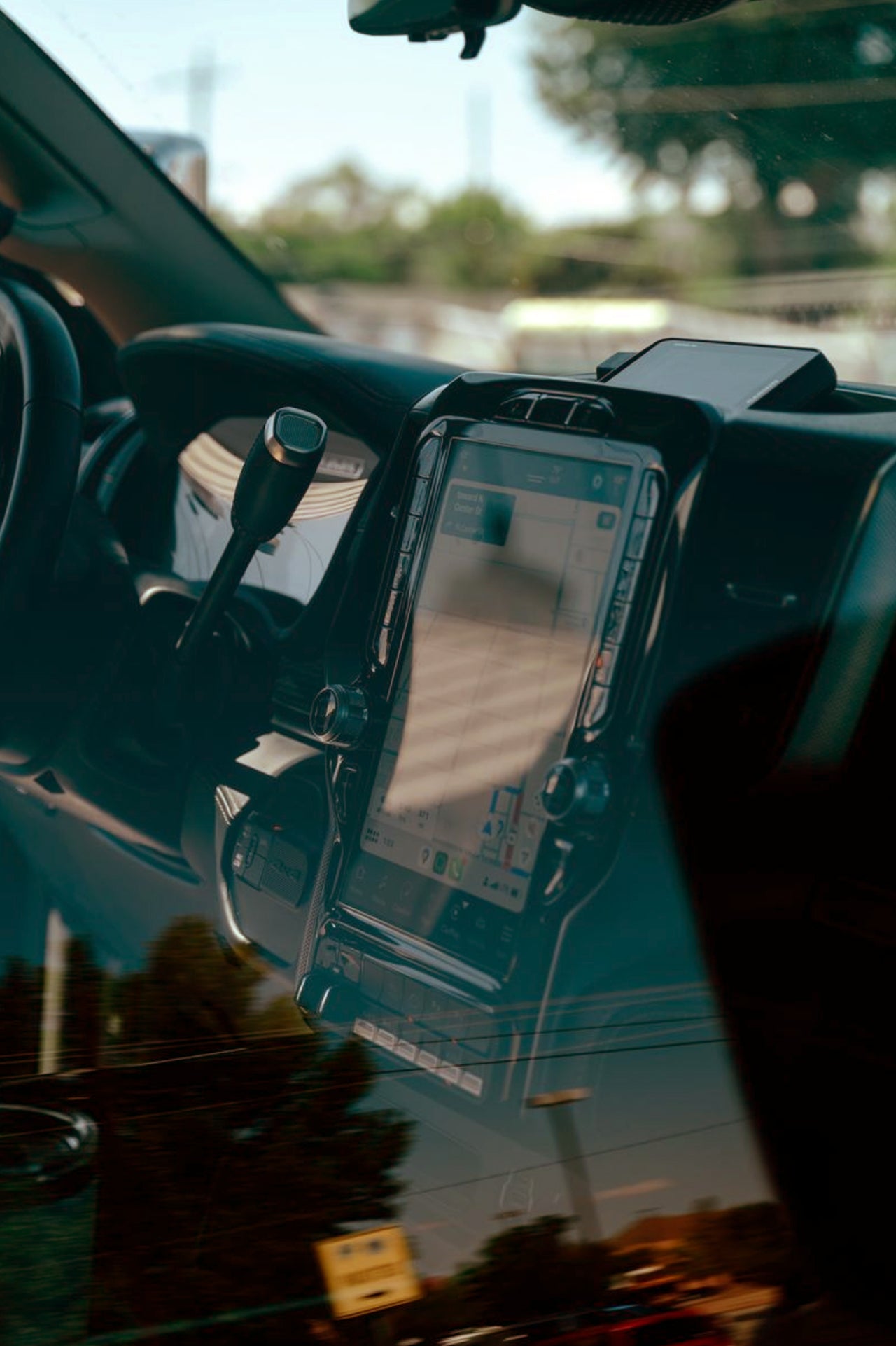

      - Uconnect® 5 Nav w/ 12.0-inch Touch Screen Display
      - 17-Speaker Harman Kardon® Premium Sound
      - Door Trim Panel Foam Bottle Insert
      - Heated Second-Row Seats
      - Power Adjustable Pedals with Memory
      - Rain-Sensitive Windshield Wipers
      - Ventilated Front Seats
    • RAMCHARGER™ Wireless Charging Pad
    • Rubber Floor Mats
    • Rear Backup Camera
  • Interior
    • RV Queen Size Bed in Front Loft
    • Rear Dinette Converts to a RV Queen Size Bed
    • Dinette Seating for 4 Adults

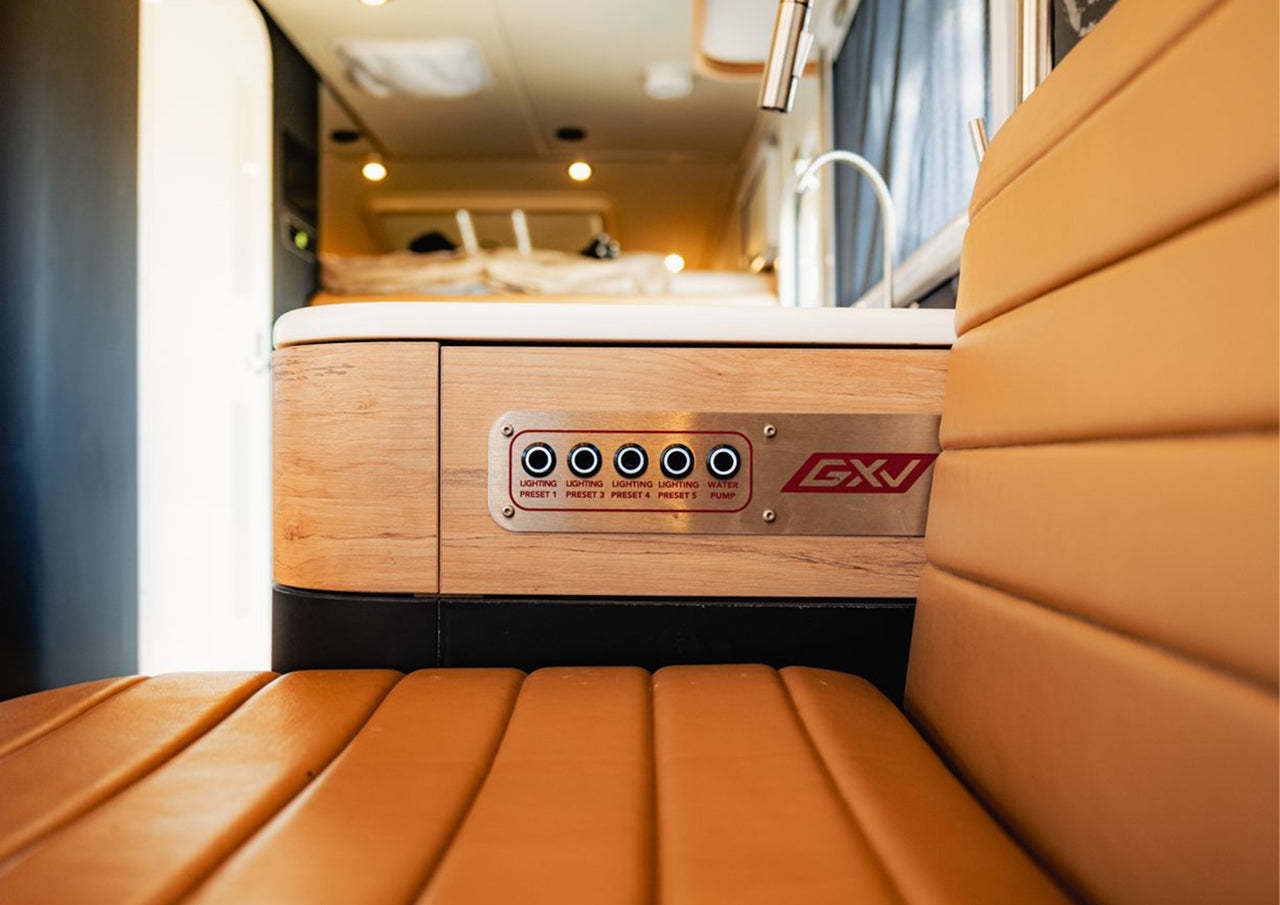

    • Dimmable, Programmable Lighting
    • Soft Touch Cabinet Finish
    • Galley w/ Storage Drawers & Pull-Out Trash Bin
    • Upper Cabinet Storage
    • Storage in Loft w/ Phone Chargers
    • Closet w/ Hanging Rod & Fold-Away Shelves
    • Ducted 15k BTU Air Conditioner
    • Two Deluxe Exhaust Fans
    • 10k BTU Hydronic Heat System w/ 2 Air Handlers
  • Exterior
    • High-Pressure Spray-On Bedliner
    • Liquid Springs® Smart Suspension™ System w/ Tru-Earth Leveling™
    • EVICTUS™ Expedition Forged Aluminum Wheels w/ 41” Multi Purpose Tires
    • Dual ARB® Compressors w/ 1 Gal Tank
    • Rugged Alloy Front Bumper
    • 20k lb Winch
    • Extreme 360° lighting package
      - Eight 10” KC HiLiTES® Perimeter Light Bars
      - Five 8” KC HiLiTES® Front Lights
    • nVader® Rear Storage Racks
    • Three Lockable Cargo Hatches
    • Lockable Pass-through Storage, 24ft³
    • 13’ x 8' Dual Pitch Awning w/ Dimmable LEDs
    • Full-size Spare w/ Electric Winch System
    • Starlink®-Ready
    • Steel Electric Entry Step
  • Energy System
    • 16.8kWh M-Power™ System (Powered by Lithionics®)
    • Two 3000W High-Capacity Inverters
    • 1320W Rated Solar Panels³
    • Mission Control Touchscreen Display
  • Safety
    • Smoke / CO Detector

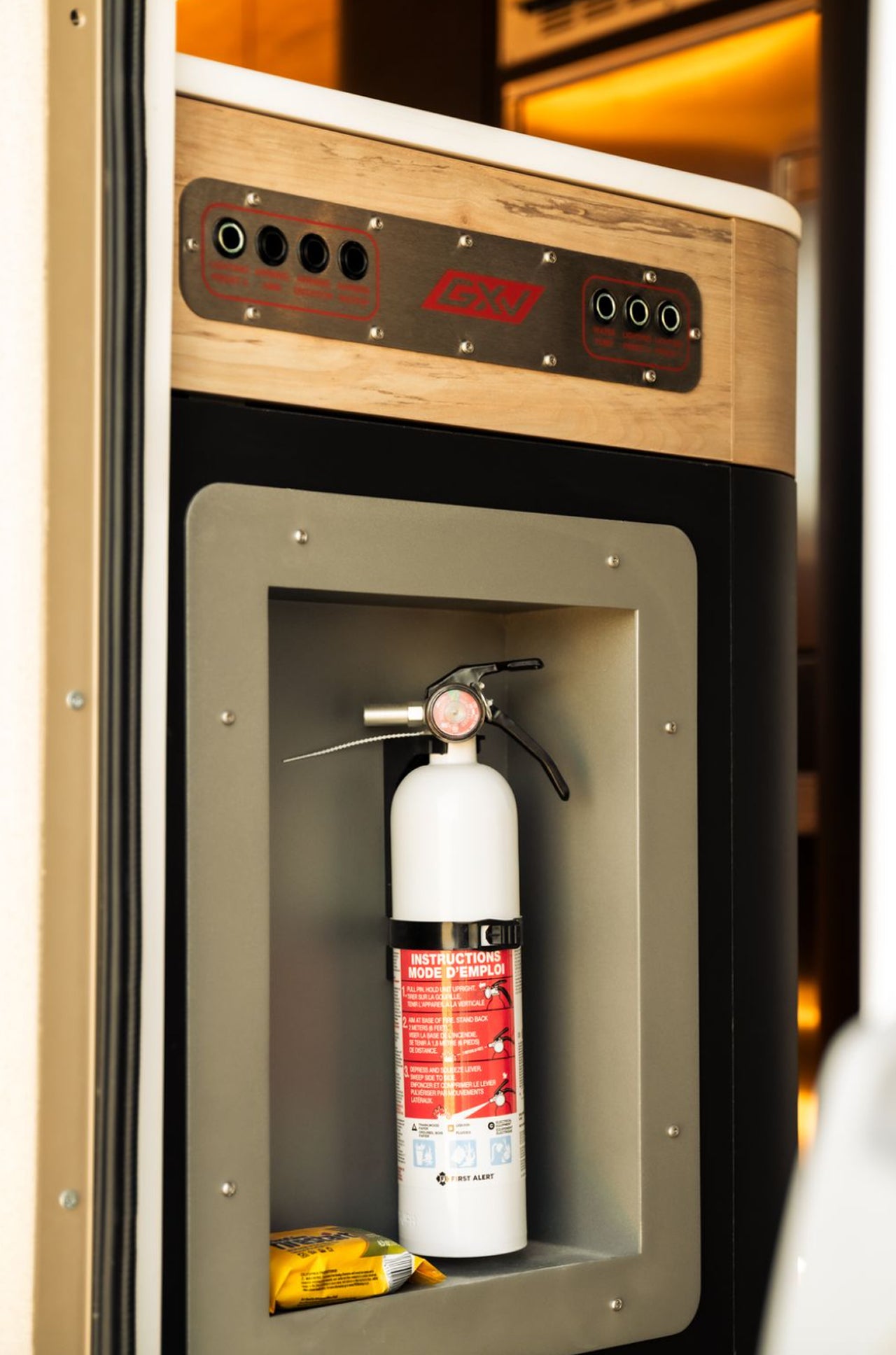

    • Fire Extinguisher
    • Ground Fault Circuit Interrupter
  • Galley
    • Stainless Steel Refrigerator/Freezer, 6.9ft³
    • Stainless Steel Convection Oven, Microwave & Air Fryer
    • 1800W Dual Burner Induction Cooktop

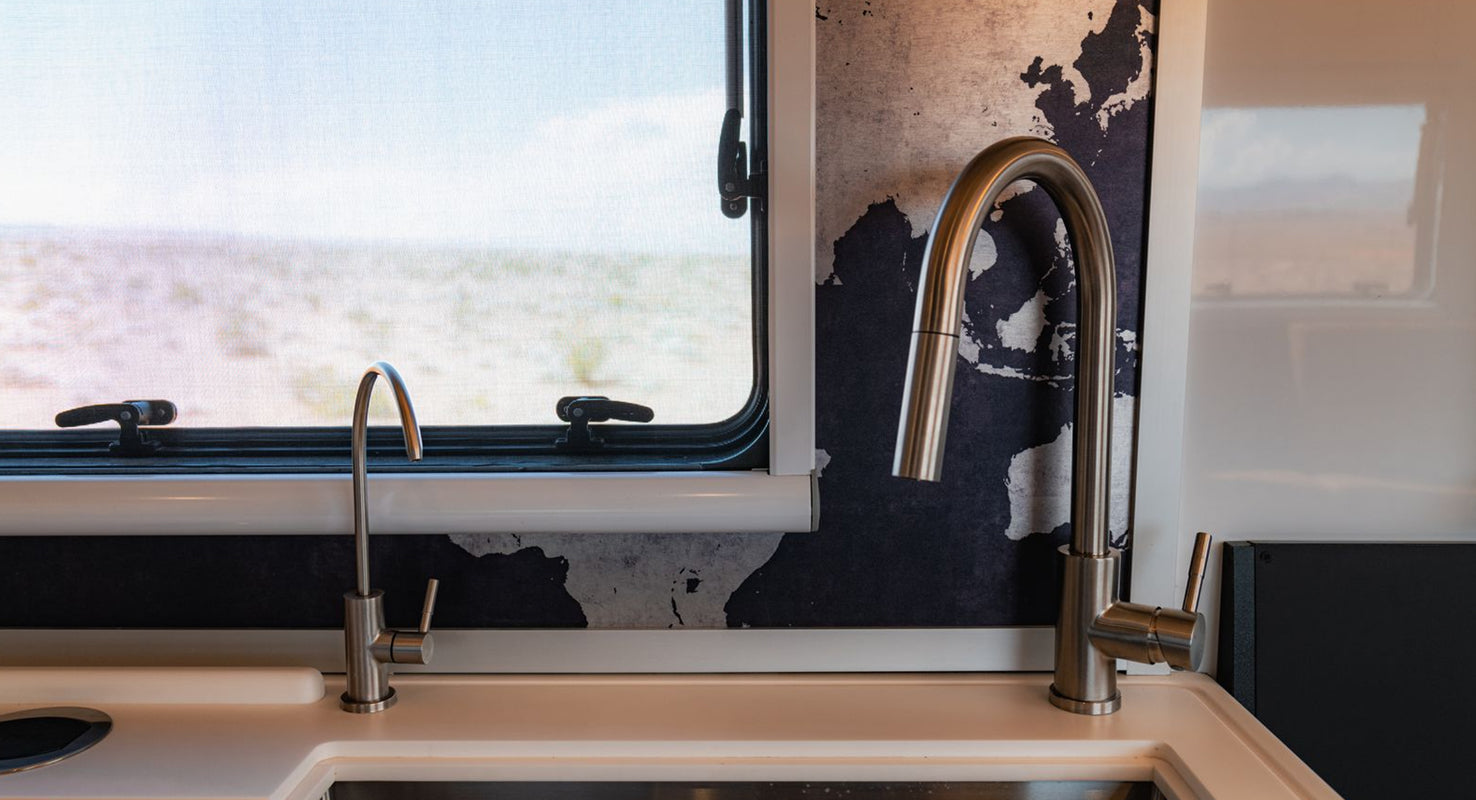

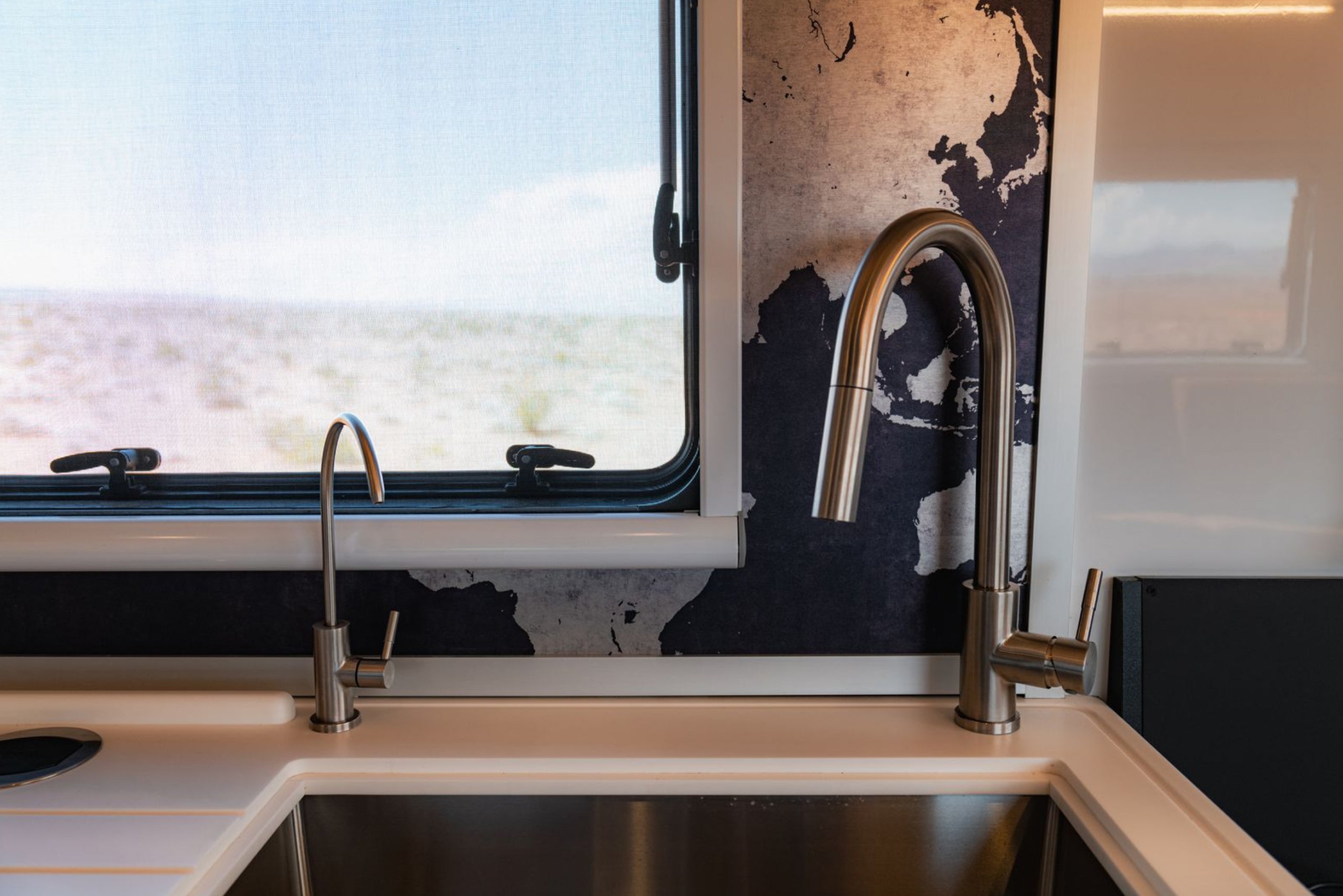

    • Large Stainless Steel Sink w/ Cover
    • Guzzle H2O® Water Purification System
  • Bath
    • Full Wet/Dry Bath w/ Shower & Sink
    • Cassette Toilet w/ Freshwater Flushing
    • Exhaust Fan
    • Dry Storage, Mirror & Retractable Clothes Line
  • Warranties

    Storyteller Overland® + Lithionics® Warranties:

    Standard RAM® Warranty

¹ See-Through, No Haggle pricing. Some images may show rigs with optional accessories.
² Monthly payment estimates do not include taxes, title, or registration fees and are based on a 20% down, 20-year RV loan at 7.99% APR. The payment estimates are provided for informational purposes only and may reflect assumptions that may not apply to you or loan terms for which you may not qualify. Please contact your local dealer for an estimate that is more accurately tailored to your circumstances. Storyteller Overland, LLC and its affiliates do not make any representation that any particular terms or financing are available.
³ Solar efficiency varies.

Upping the Game On Quality, Lowering The Barrier To Entry On Price

We believe adventure belongs to everybody, which is why we’re manufacturing this best-in-class adventure van at scale. This means you’ll get a highly engineered truck with all the benefits of buying off of Storyteller Overland’s production line.
